YRT395P2 high precision Axial radial bearing for NC rotary table

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRT395P2
Minimum Order Quantity 1
Price 1$~~440$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month
Product Details
Material Gcr15SiMn Dimension 395X525X65mm
Load Axial Radial Combined Load Model YRT395
Application CNC Machine Tool Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

YDPB YRT395 Rotary Indexing Table Machines Use Bearings Size 395x525x65mm Bulk YRT rotary Bearing
Model number- YRT395
Inner ring(mm)- 395
Outer ring(mm)- 525
Width(mm)- 65
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Main parameters

Bearing type Boundary Dimensions Fixing holes Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque Weight
axial radial
Inner ring Outer ring dynamic load static
dynamic load static
d D H H1 H2 C d1 dn dm d0 ds Ts QTY dL QTY
MA2) Ca Coa Cr Cor grease
unit: mm unit:mm mm G QTY QTY x t Nm KN r/min Nm Kg
YRT395 395 525 65 42.5 22.5 20 486 415 505 9.3 15 8.2 46 9.3 45 2 M12 3 48×7.5° 34 300 2280 186 655 140 55 33

Related pictures

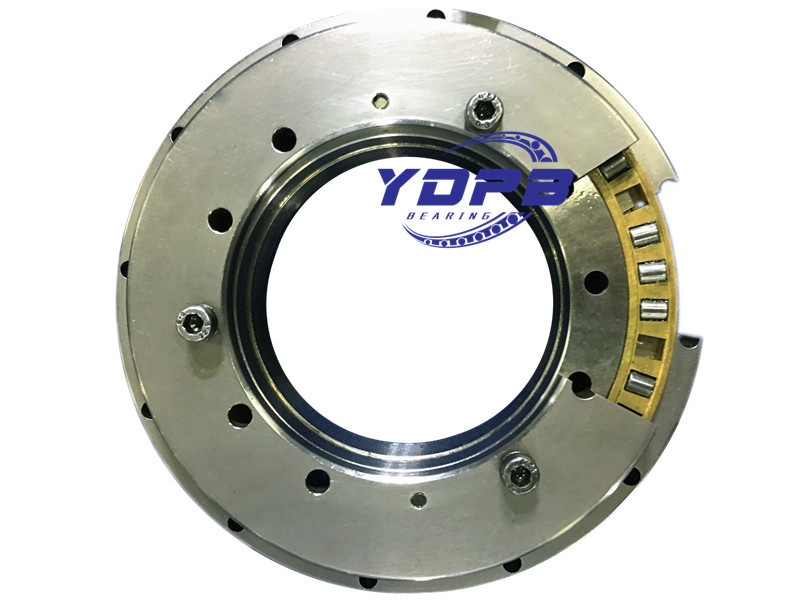

YRT395P2 high precision Axial radial bearing for NC rotary table 0

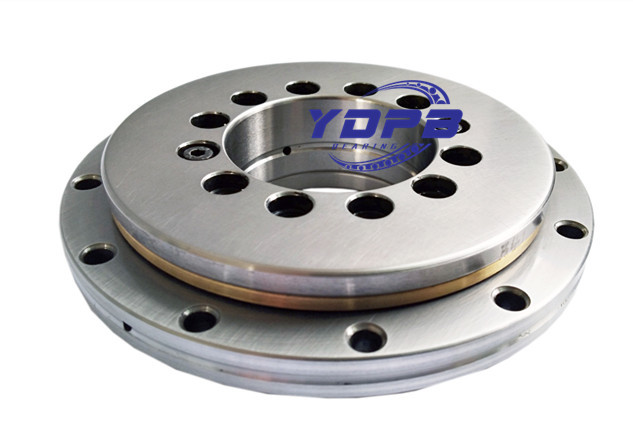

YRT395P2 high precision Axial radial bearing for NC rotary table 1

Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"

After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available

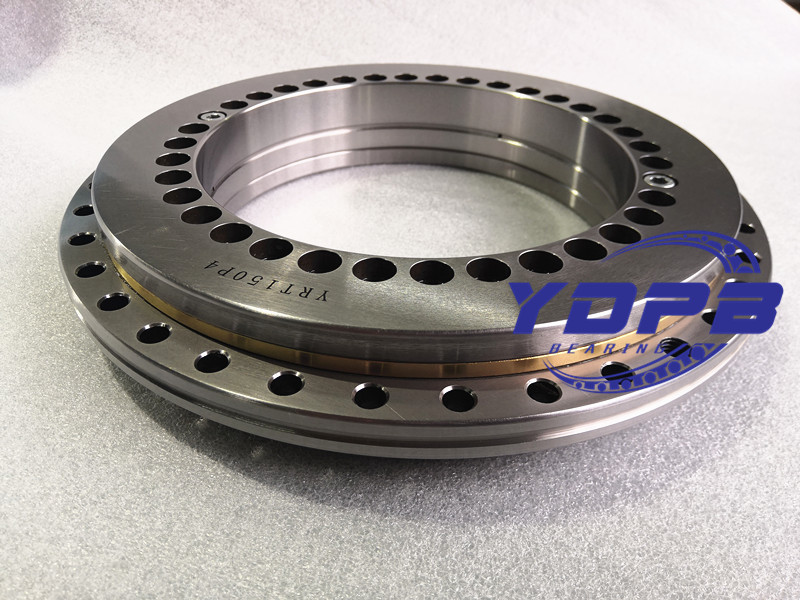

YRT395P2 high precision Axial radial bearing for NC rotary table 2
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
