YRT50P4 Combined Radial Axial Roller Bearing for NC rotary table China supplier

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRT50P4
Minimum Order Quantity 1PCS
Price 100-300USD
Packaging Details Vacuum packaging+carton + Pearl cotton+wooden case
Delivery Time 5-8 woking days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Slewing Bearing Seals Type Open
Bore Size 50 Outside Diameter 126
Material GCR15 Application NC Rotary Table/ Machine Tool
Bearing Type Three-row Cylindrical Roller Sample Available
Main Markets Global,USA,Germany,Spain,Korea Etc. Cage Brass Cage/Nylon Cage
Leave a Message
Product Description

YRT50 rotary table bearing details

YRT50P4 Combined Radial Axial Roller Bearing for NC rotary table China supplier 0

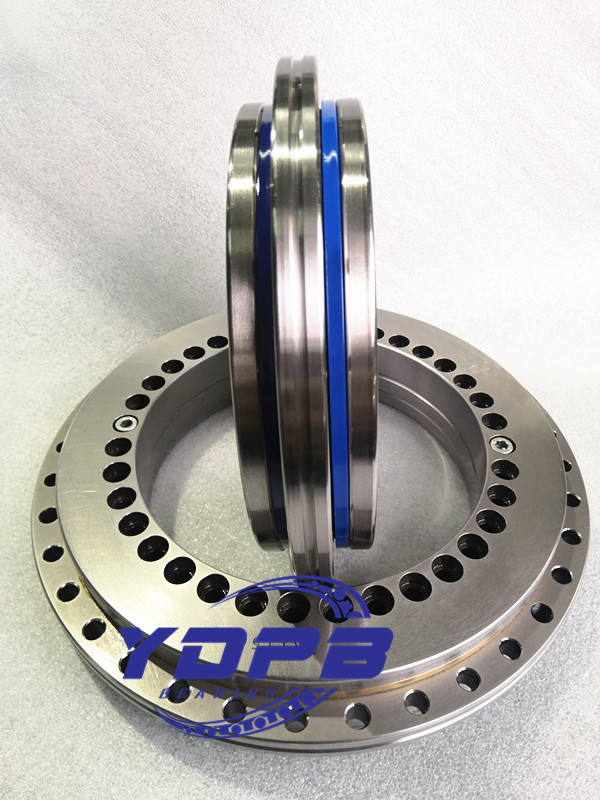

YRT50P4 Combined Radial Axial Roller Bearing for NC rotary table China supplier 1



Bearing type Boundary Dimensions Fixing holes Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque Weight
axial radial
Inner ring Outer ring dynamic load static
load
dynamic load static
load
d D H H1 H2 C d1 dn dm d0 ds Ts QTY dL QTY
MA2) Ca Coa Cr Cor grease
unit: mm unit:mm mm G QTY QTY x t Nm KN r/min Nm Kg
YRT50 50 126 30 20 10 10 105 63 116 5.6 9 4.2 10 5.6 12 2 12×30° 8.5 38 158 28.5 49.5 440 2.5

1.6







YRT bearings structure

It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.

YRT bearings advantages

This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.

YRT bearings applications

This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

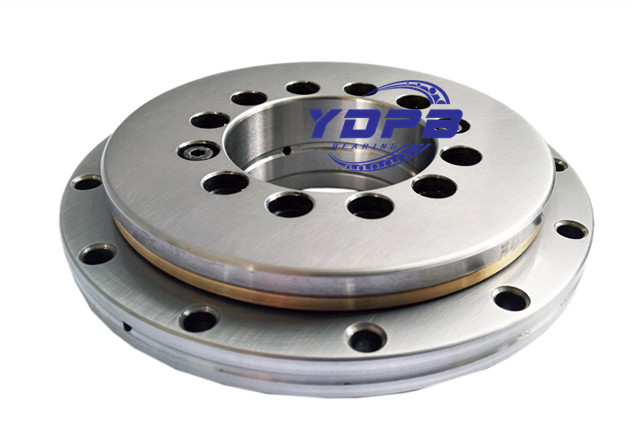

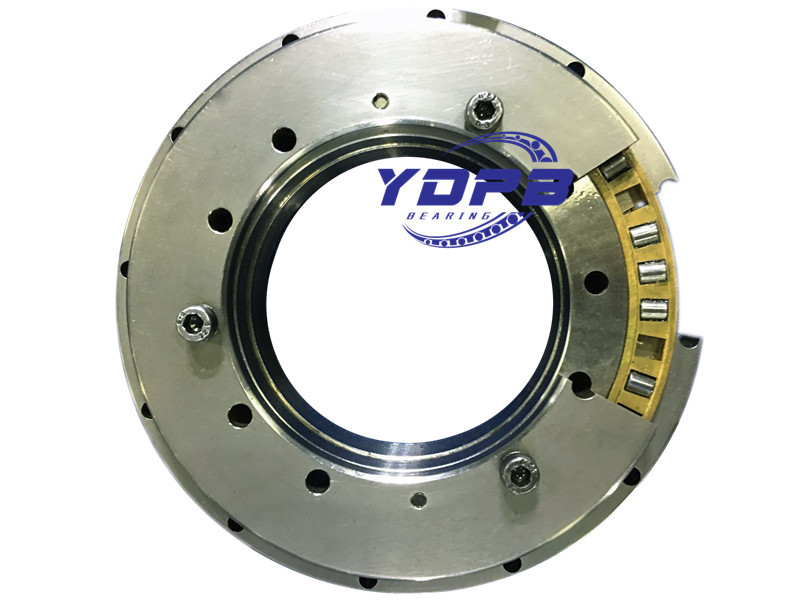

YRT bearings include Brass cage and nylon cage,below phontoes for your reference

YRT50P4 Combined Radial Axial Roller Bearing for NC rotary table China supplier 2

YRT50P4 Combined Radial Axial Roller Bearing for NC rotary table China supplier 3

Drawing can be shared when send us email.
