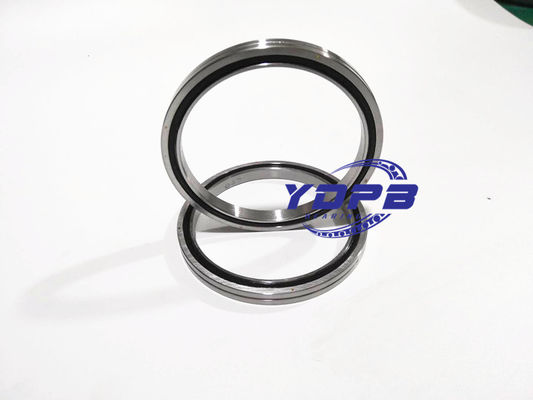

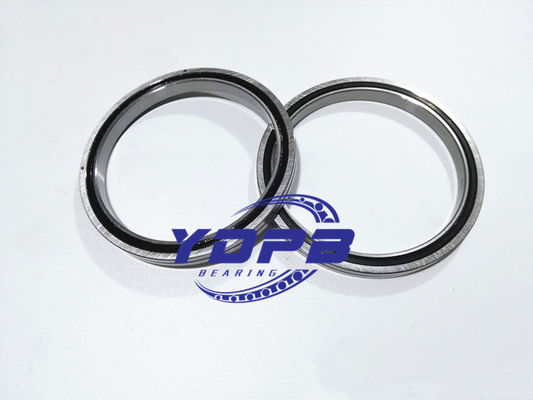

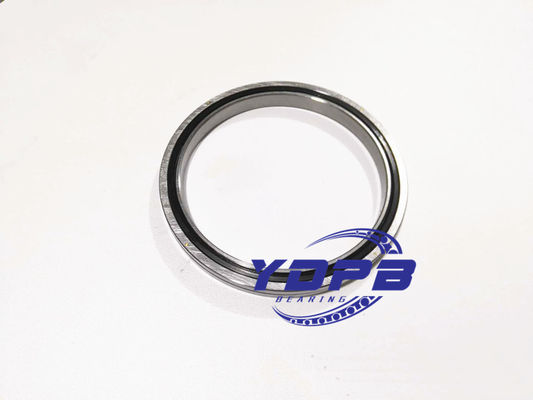

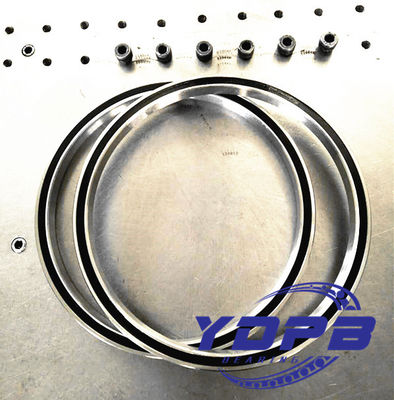

J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number J17008XP0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C
Product Details
Material GCR15 Precision P6,P5,P4
Structure Custom Made Available OEM Available
Leave a Message
Product Description

Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO

standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones

flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing

Feature
1. compact structure, light weight, low vibration and friction
2. space and cost saving
3. best quality, long life

Parameters and related photoes for thin section ball bearings YDPB produce

8mm seals(two-sides seals)
Model Dimension Load capacity Limit
speed
No-load limit rotate torque
N-m
weight
Basic Size Side wall size Radial Axial Torque N-m
id OD L1 L2 Static Dynamic Static Dynamic Static Dynamic
J17008XP0 170 186 176.55 179.42 1767 910 4418 1441 1543 596 370 0.46 0.2

J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel 0J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel 1J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel 2



Application

J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel 3

Transport

J17008XP0 Sealed Thin Section Bearings for industrial robots brass cage custom made bearings stainless steel 4

Drawings,price and other information needed ,pls send us email ydbearing@foxmail.com or call us directly
