K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number K36013XP0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C
Product Details
Material GCR15 Precision P6,P5
Structure Custom Made Available OEM Available
Leave a Message
Product Description

Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO

standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones

flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing

Feature
1. compact structure, light weight, low vibration and friction

2. space and cost saving
3. best quality, long life

Parameters and related photoes for thin section ball bearings YDPB produce

13mm Series
Model Dimension Load capacity Weight
Basic Size Side wall size Radial Axial Torque N-m
id OD L1 L2 Static Dynamic Static Dynamic Static Dynamic
K32013XP0 320 346 329.7 336.3 5042 2419 12605 3966 8232 2963 0.97
K34013XP0 340 366 349.7 356.3 5365 2508 13412 4133 9286 3257 1.02
K36013XP0 360 386 369.7 376.3 5688 2594 14220 4298 10403 3560 1.08

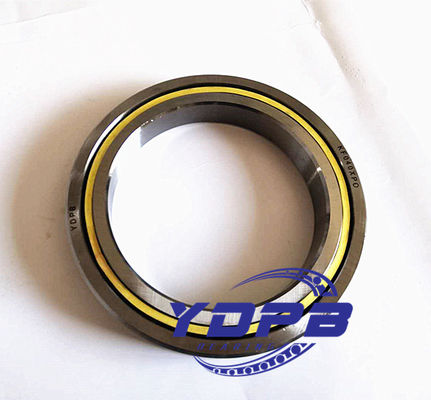

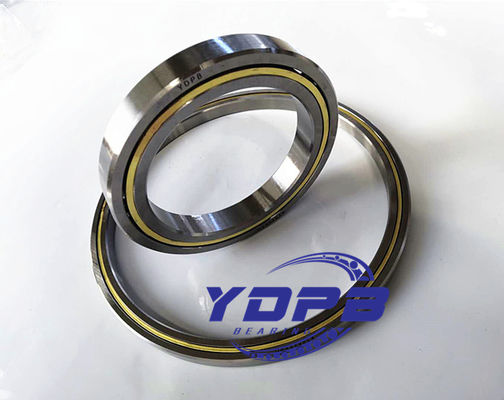

K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel 0K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel 1

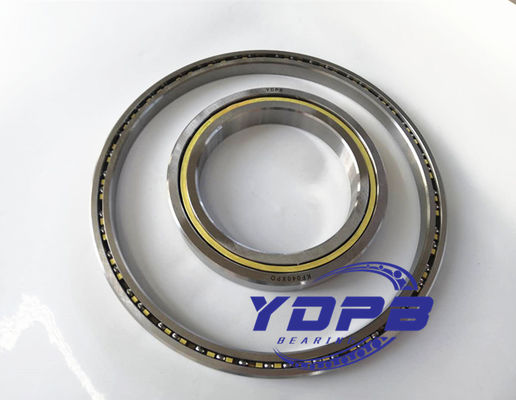

K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel 2

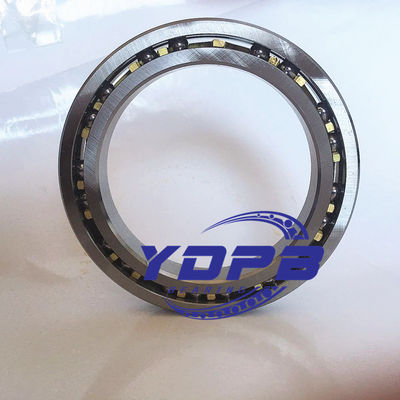

K20013 thin section ball bearing

Application

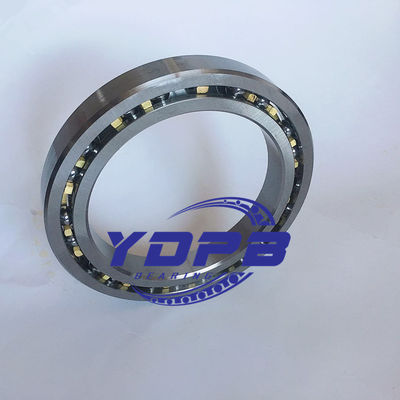

K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel 4

Transport

K36013XP0 Thin Section Bearings For Indexing tables Brass Cage Custom Made Bearings Stainless Steel 5

Drawings,price and other information needed ,pls send us email ydbearing@foxmail.com or call us directly .
