YRT-100 yrts high speed turntable bearings manufacturers china 100x185x38mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number YRT-100
Minimum Order Quantity 1PCS
Price 251$~~290$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month
Product Details
Material Gcr15 Dimension 100x185x38mm
Load Axial Radial Combined Load Model YRT-100
Application CNC Machine Tool Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

YRT-100 Axial Radial Roller Bearings size 100X185X38mm Rotary table use​
Model number- YRT-100
Inner ring(mm)- 100
Outer ring(mm)- 185
Width(mm)- 38
Weight(Kg)-4
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring


Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.



Main parameters

Bearing
type
d
(mm)
D
(mm)
H
(mm)
Screw tightening
torque(Nm)
Axial dynamic
Load(KN)
Radial dynamic
Load(KN)
Weight
(KG)
YRT-50 50 126 30 8.5 38 28.5 1.6
YRT-80 80 146 35 8.5 56 42.5 2.4
YRT-100 100 185 38 8.5 76.5 47.5 4.1
YRT-120 120 210 40 14 102 52 5.3
YRT-150 150 240 40 14 112 56 6.2
YRT-180 180 280 43 14 118 69.5 7.7
YRT-200 200 300 45 14 120 81.5 9.7
YRT-260 260 385 55 34 160 93 18.3
YRT-325 325 450 60 34 300 120 25
YRT-395 395 525 65 34 355 186 33
YRT-460 460 600 70 34 490 200 45
YRT-580 580 750 90 68 490 228 89
YRT-650 650 870 122 116 1040 490 170
YRT-850 850 1095 124 284 1000 455 253
YRT-950 950 1200 132 284 1290 530 312
YRT-1030 1030 1300 145 284 1380 620 375



Related pictures

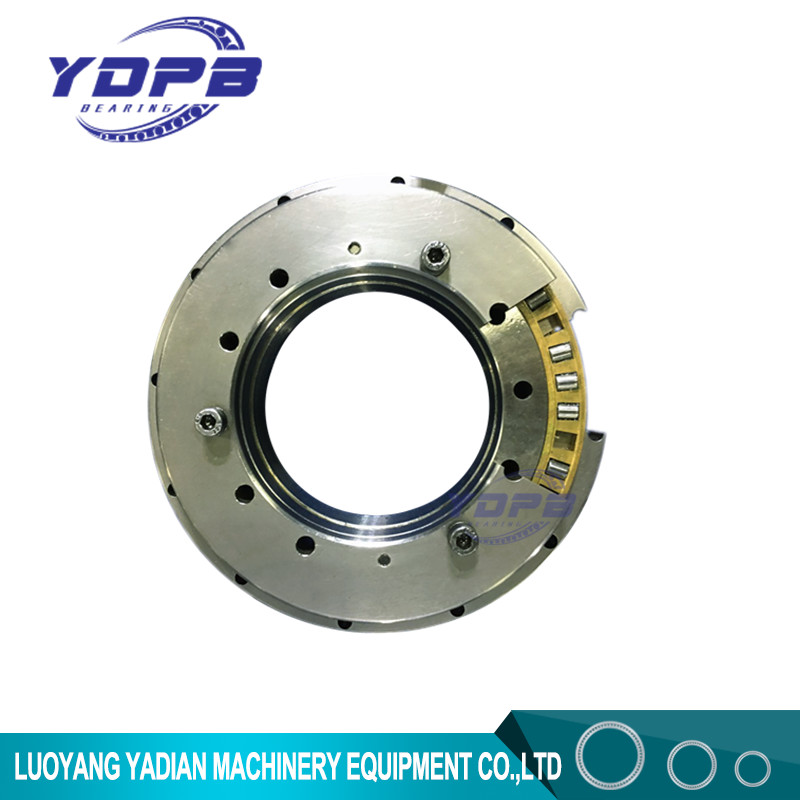

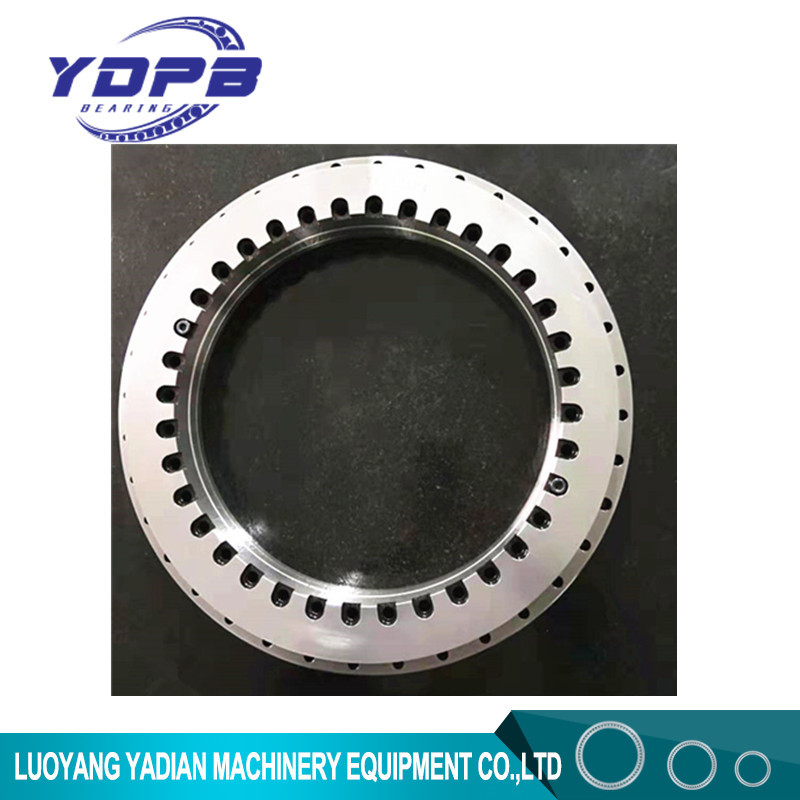

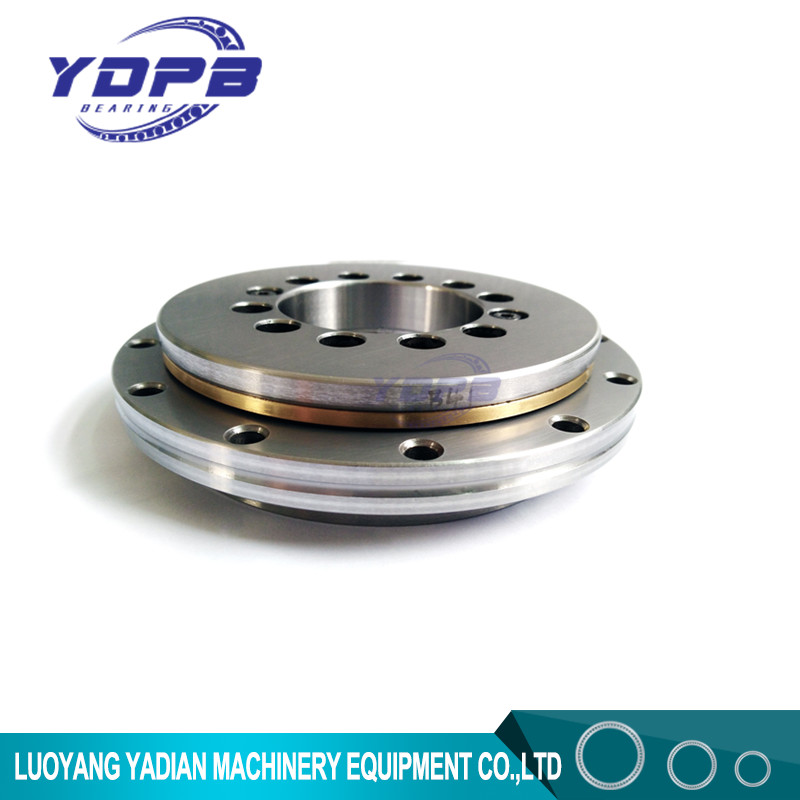

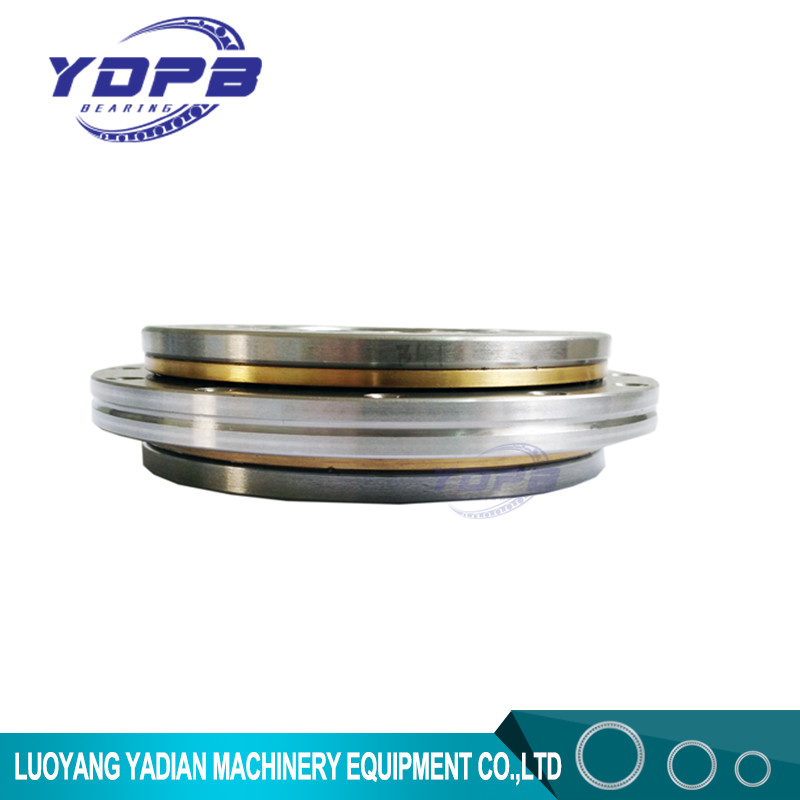

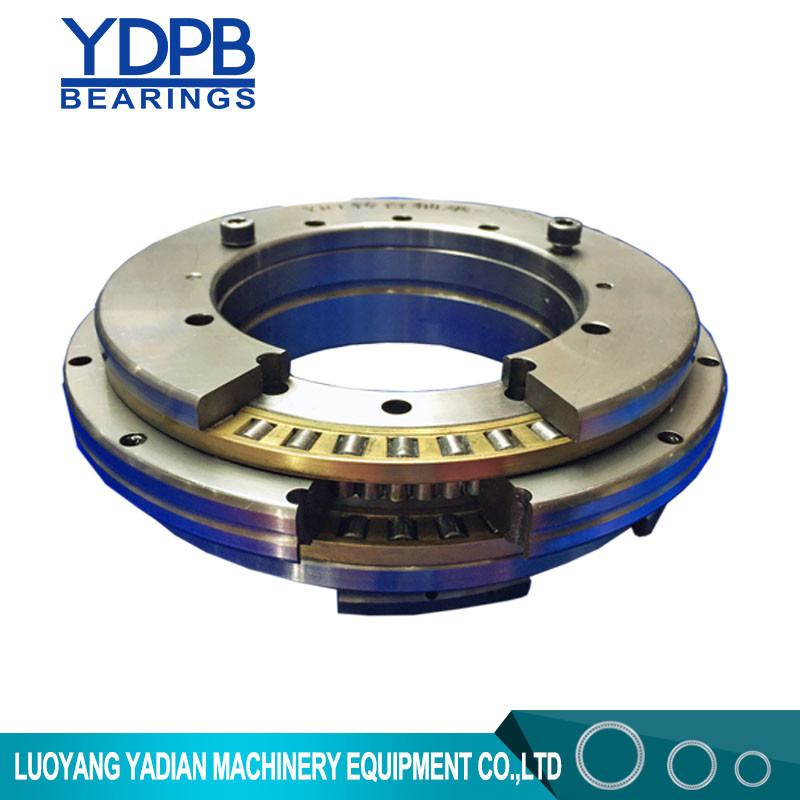

YRT-100 yrts high speed turntable bearings manufacturers china 100x185x38mm 0

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
