AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings

  • AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings
  • AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings
  • AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings
  • AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings
  • AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number AXRY150
Minimum Order Quantity 1PCS
Price 1$~~440$/pc
Packaging Details plastic film+thin foam+carton
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gcr15 Dimension 150X240X40mm
Load Axial Radial Combined Load Model AXRY150
Application CNC Machine Tool Cage Copper Cage
Precision Level P4,P2
Leave a Message
Product Description

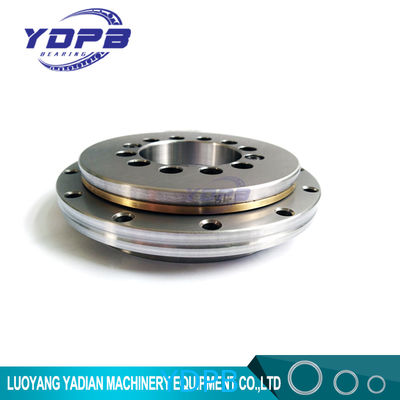

AXRY150  Axial Radial Roller Bearings size 150X240X40mm Rotary table use
Model number- AXRY150
Inner ring(mm)- 150
Outer ring(mm)- 240
Width(mm)- 40
Weight(Kg)-6.2
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring

Main Models
AXRY 50 Bearings,AXRY80 bearings,AXRY100 bearings,AXRY120 bearings,AXRY150 bearings,AXRY 180 bearings,AXRY200 bearing,AXRY260 bearings,AXRY325 bearings,AXRY395 bearings,AXRY460 bearings,AXRY580 bearings,AXRY650 bearings,AXRY850 bearings,AXRY950 bearings,AXRY1030 bearings,AXRY1200 bearings.

Main parameters

AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings 0

Bearing

Model number

 Boundary dimensions Basic load rating(KN)

Limiting

Speed

(Grease)

Bearing frictional torque

(Nm)

Weight

(kg)

Axial/Radial

Runout

(μm)
Axial load Radial load
d D H H1 C D1 J J1 dynamic static dynamic static
unit: mm Ｃａ Coa Cr Cor r/min
AXRY50 50 126 30 20 10 105 63 116 38 158 28.5 49.5 440 2.5 1.6 2
AXRY80 80 146 35 23.35 12 130 92 138 56 255 42.5 100 530 3 2.4 3
AXRY100 100 185 38 25 12 160 112 170 76.5 415 47.5 120 430 3 4.0 3
AXRY120 120 210 40 26 12 184 135 195 102 540 52 143 340 7 5.3 3
AXRY150 150 240 40 26 12 214 165 225 112 630 56 170 320 10 6.2 3
AXRY180 180 280 43 29 15 244 194 260 118 710 69.5 200 280 12 7.7 4
AXRY200 200 300 45 30 15 274 215 285 120 765 81.5 220 260 14 9.7 4
AXRY260 260 385 55 36.5 18 345 280 365 160 1060 93 290 200 20 18.3 6
AXRY325 325 450 60 40 20 415 342 430 275 1930 120 345 170 40 25 6
AXRY395 395 525 65 42.5 20 486 415 505 300 2280 186 655 140 55 33 6
AXRY460 460 600 70 46 22 560 482 580 355 2800 200 765 120 70 45 6
AXRY580 580 750 90 60 30 700 610 720 490 4250 228 965 80 140 89 10
AXRY650 650 870 122 78 34 800 680 830 1040 8000 490 1800 65 200 170 10
AXRY850 850 1095 124 80.5 37 1018 890 1055 1000 8650 455 1730 50 300 253 12
AXRY950 950 1200 132 86 40 1130 990 1160 1290 11400 530 2040 40 600 312 12
AXRY1030 1030 1300 145 92.5 40 1215 1075 1255 1380 12000 620 2650 39 800 375 15


Related pictures

AXRY150 yrt bearing factory 150X240X40mm made in china low price turntables slewing rings 1

Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
