YRT-325 china yrt bearing suppliers 325X450X60mm china yrt rotary bearing manufacturer
| Place of Origin | Luoyang，China |
|---|---|
| Brand Name | YDPB |
| Certification | ISO |
| Model Number | YRT325 |
| Minimum Order Quantity | 1PCS |
| Price | 260$~~440$/pc |
| Packaging Details | plastic film+waterproof paper+thin foam+wooden case |
| Delivery Time | within 5-8days |
| Payment Terms | Western Union, T/T, MoneyGram |
| Supply Ability | 800pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Gcr15 | Dimension | 325X450X60mm |
|---|---|---|---|
| Load | Axial Radial Combined Load | Model | YRT-325 |
| Application | CNC Machine Tool | Cage | Brass Cage |
| Precision Level | P4,P2 |
Product Description
YRT-325 Rotary table Bearings size 325X450X60mm Axial and Radial Thrust Bearing rotary table bearing suppliers(Drawing is available if needed)
Model number- YRT-325
Inner ring(mm)- 325
Outer ring(mm)- 450
Width(mm)- 60
Weight(Kg)-25
Fixing Hole(Outer ing)
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.
Main parameters
| Bearing type |
d (mm) |
D (mm) |
H (mm) |
Screw tightening torque(Nm) |
Axial dynamic Load(KN) |
Radial dynamic Load(KN) |
Weight (KG) |
| YRT-50 | 50 | 126 | 30 | 8.5 | 38 | 28.5 | 1.6 |
| YRT-80 | 80 | 146 | 35 | 8.5 | 56 | 42.5 | 2.4 |
| YRT-100 | 100 | 185 | 38 | 8.5 | 76.5 | 47.5 | 4.1 |
| YRT-120 | 120 | 210 | 40 | 14 | 102 | 52 | 5.3 |
| YRT-150 | 150 | 240 | 40 | 14 | 112 | 56 | 6.2 |
| YRT-180 | 180 | 280 | 43 | 14 | 118 | 69.5 | 7.7 |
| YRT-200 | 200 | 300 | 45 | 14 | 120 | 81.5 | 9.7 |
| YRT-260 | 260 | 385 | 55 | 34 | 160 | 93 | 18.3 |
| YRT-325 | 325 | 450 | 60 | 34 | 300 | 120 | 25 |
| YRT-395 | 395 | 525 | 65 | 34 | 355 | 186 | 33 |
| YRT-460 | 460 | 600 | 70 | 34 | 490 | 200 | 45 |
| YRT-580 | 580 | 750 | 90 | 68 | 490 | 228 | 89 |
| YRT-650 | 650 | 870 | 122 | 116 | 1040 | 490 | 170 |
| YRT-850 | 850 | 1095 | 124 | 284 | 1000 | 455 | 253 |
| YRT-950 | 950 | 1200 | 132 | 284 | 1290 | 530 | 312 |
| YRT-1030 | 1030 | 1300 | 145 | 284 | 1380 | 620 | 375 |

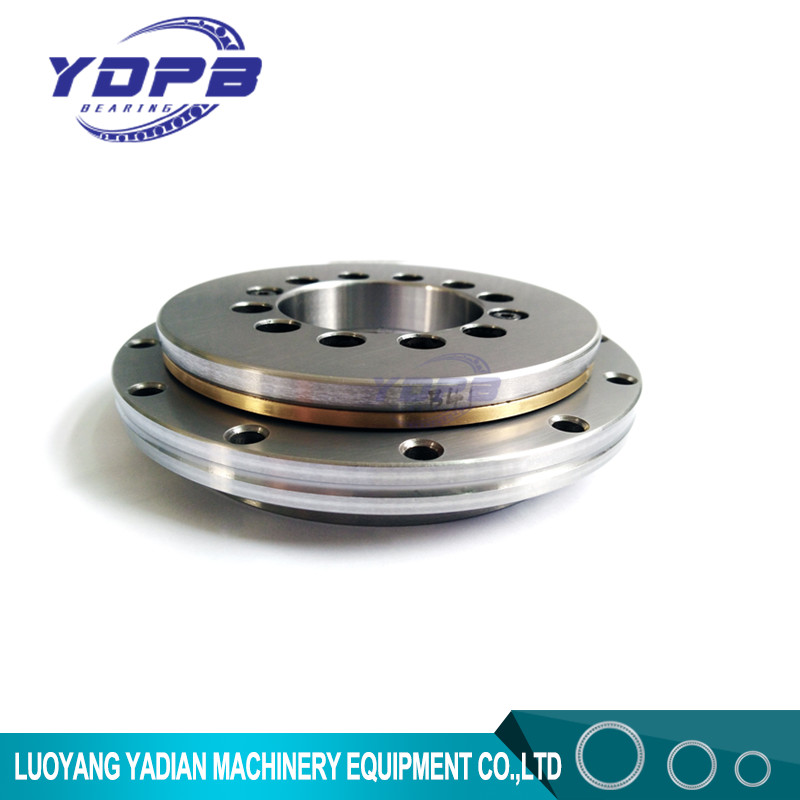

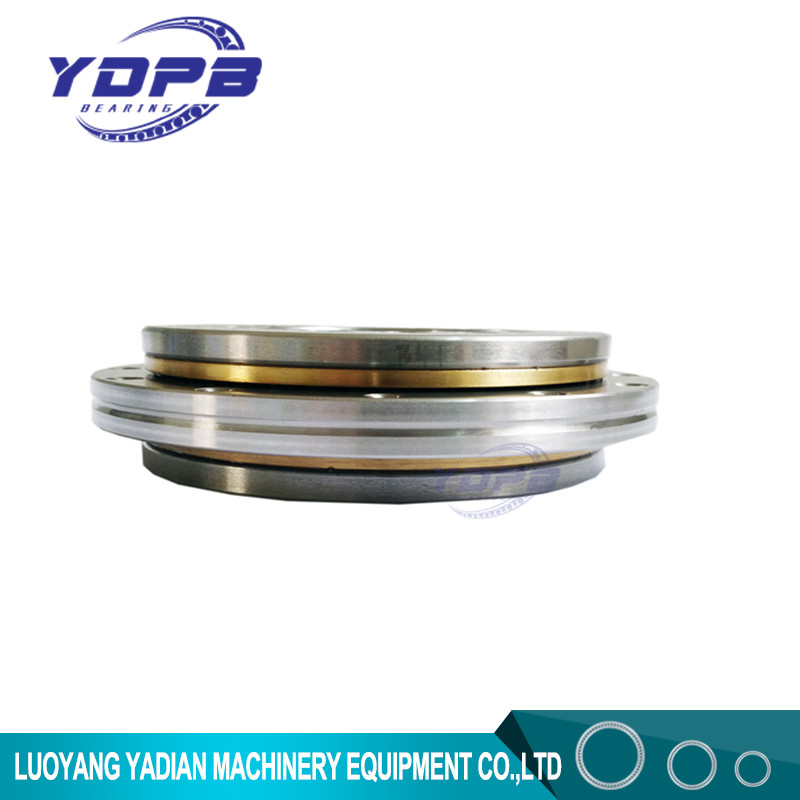

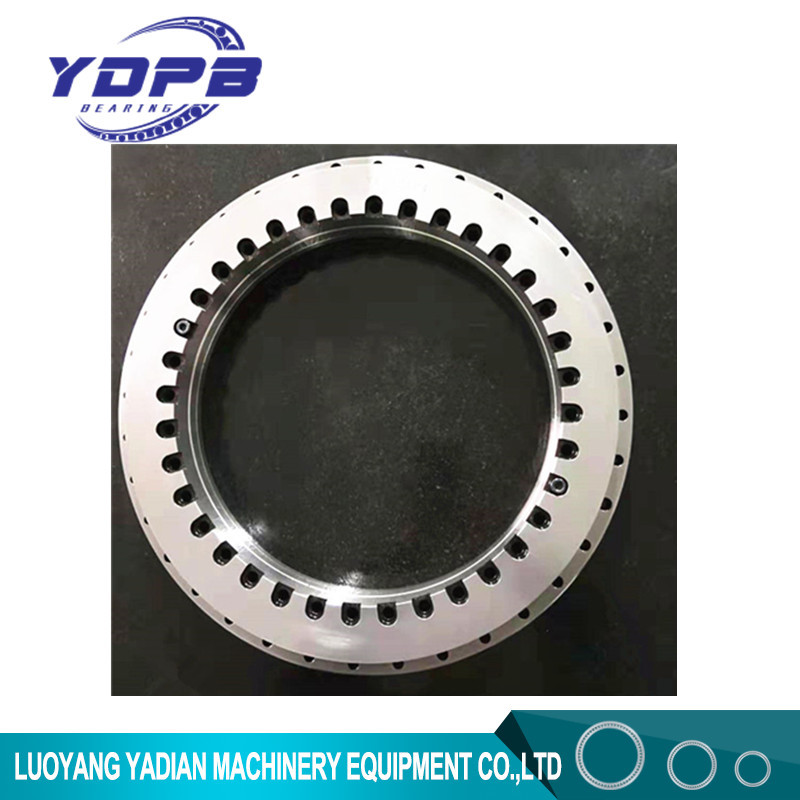

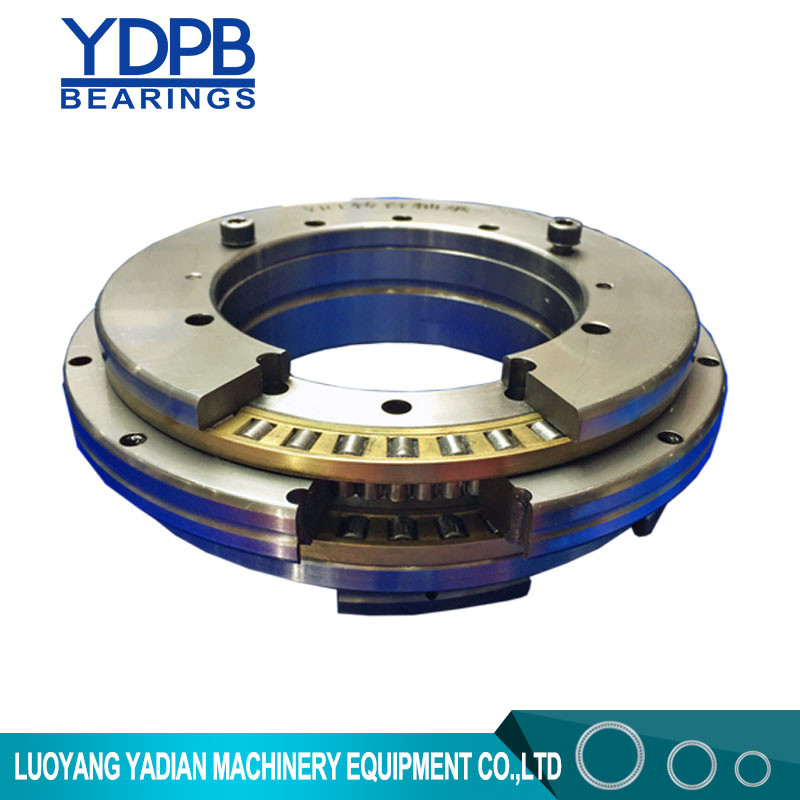

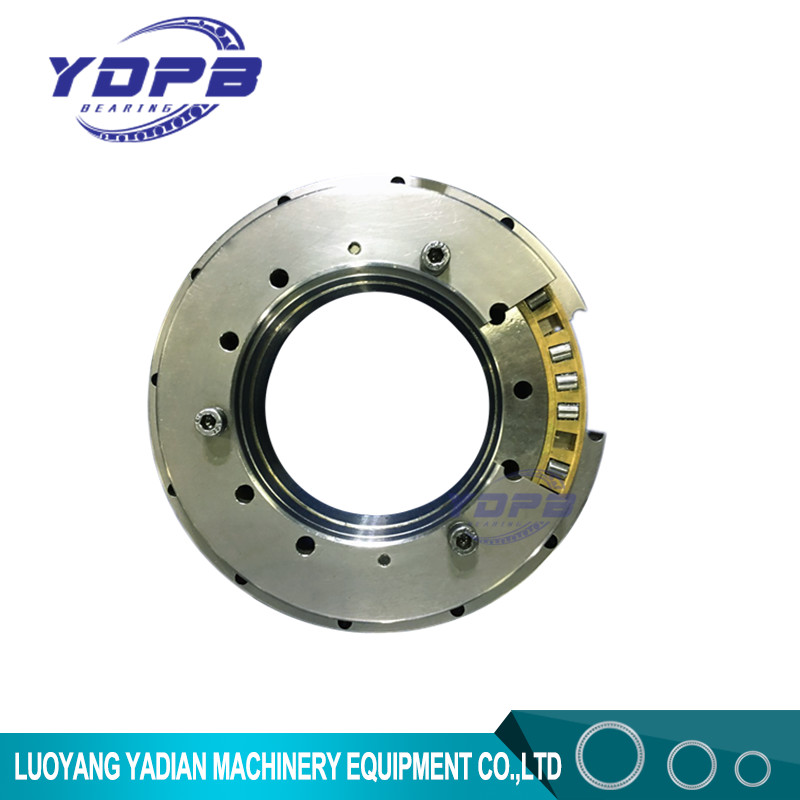

Related pictures
Application
Applications "Product Application
•Precision machine tools
•precision Turntable, NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Indexing plate of other precision machines etc"
