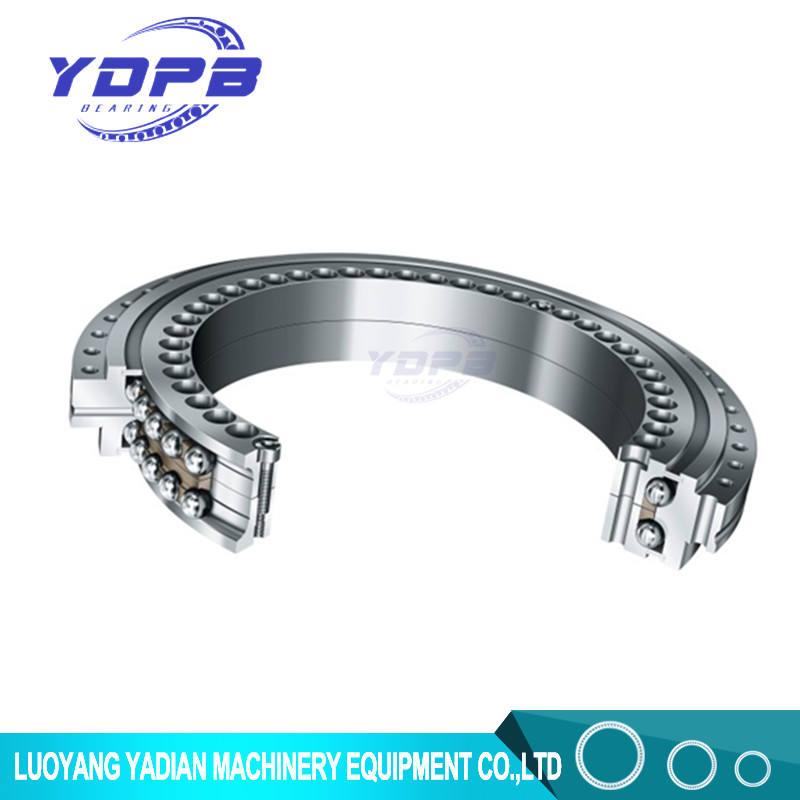

ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm

  • ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm
  • ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm
  • ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm
  • ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm
  • ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number ZKLDF120
Minimum Order Quantity 1PCS
Price 1$~~440$/pc
Packaging Details plastic film+waterproof paper+thin foam+wooden case
Delivery Time within 5-8days
Payment Terms Western Union, T/T, MoneyGram
Supply Ability 800pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gcr15SiMn Dimension 120x210x40mm
Structure Axial Angular Contact Ball Model ZKLDF120
Application Rotary Table Cage Brass Cage
Precision Level P4,P2
Leave a Message
Product Description

 Axial angular contact ball bearings ZKLDF120,Double direction,for screw mounting.sealing shields on both sides.
Model number- ZKLDF120
Inner ring(mm)- 120
Outer ring(mm)- 210
Width(mm)- 40
Weight(Kg)- 6
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner ring/Outer ring
Load direction- Multi-load
Structure- Integrated Inner/Outer Ring
Features:
ZKLDF series(four point ball contact),with low frictional ,high rotate accurancy and high limit speed etc. features, can bear higher axial,radial load and with higher tilting rigity.,Main application is the area which need combined load and high precision. E.g machine tool rotary table ,grinding head and other measuring equipment.
Series model No.
ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460, ZKLDF580
Structure:
ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm 0
ZKLDF series parameters

Series Model
Number		 Main dimensions (mm) Basic load rating
(Axial)		 Limiting
speed
(Grease) 		Bearing
frictional torque		 Weight
 		 Model
Number
d D H H1 C D1 J J1 Ca KN Coa KN r/m (Nm) (Kg) ---------
ZKLDF ZKLDF100 100 185 38 25 160 136 112 170 71 265 2800 1.6 4.5 ZKLDF100
ZKLDF120 120 210 40 26 184 159 135 195 76 315 2400 2 6 ZKLDF120
ZKLDF150 150 240 40 26 214 188 165 225 81 380 2000 3 7.5 ZKLDF150
ZKLDF200 200 300 45 30 274 243 215 285 112 610 1600 4.5 11 ZKLDF200
ZKLDF260 260 385 55 36.5 345 313 280 365 162 920 1200 7.5 22 ZKLDF260
ZKLDF325 325 450 60 40 415 380 342 430 172 1110 1000 11 28 ZKLDF325
ZKLDF395 395 525 65 42.5 486 450 415 505 241 1580 800 16 39 ZKLDF395
ZKLDF460 460 600 70 46 560 520 482 580 255 1860 700 21 50 ZKLDF460

Related Pictures
ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm 1ZKLDF120 High precision bearings for combined loads Axial/radial 120x210x40mm 2
Applications :
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc
