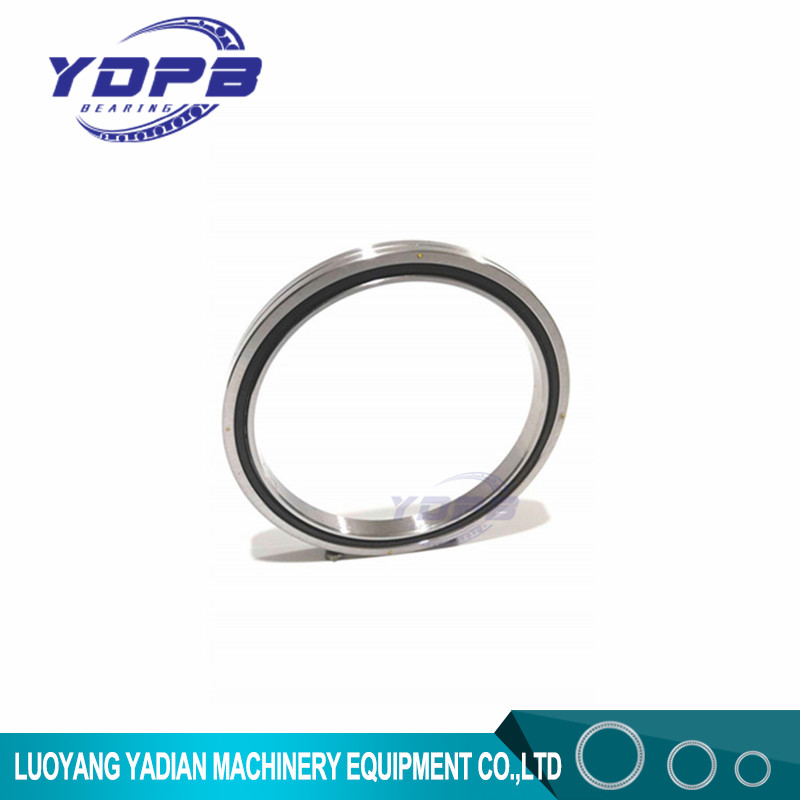

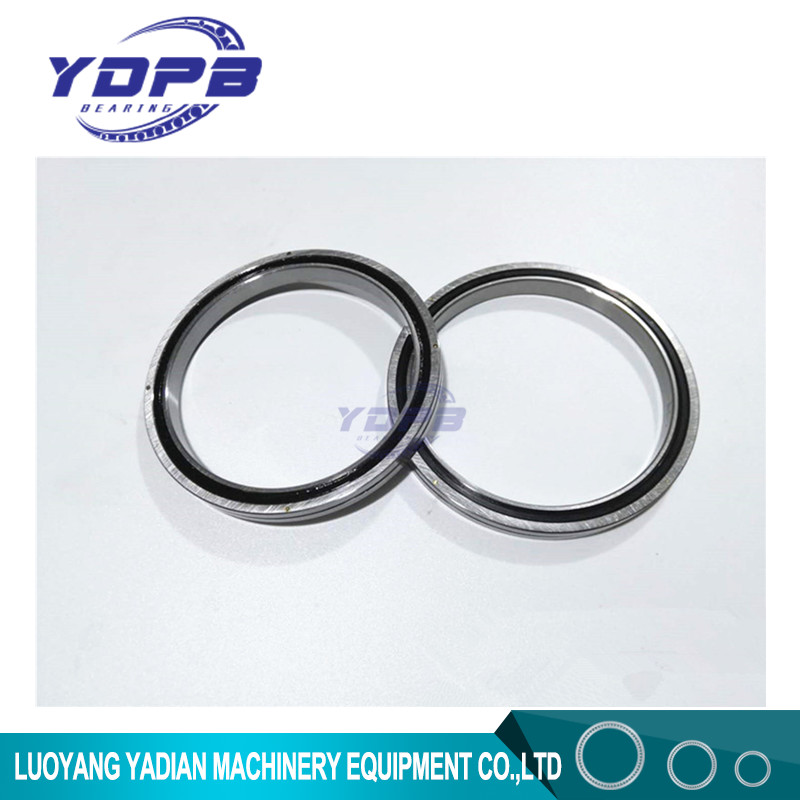

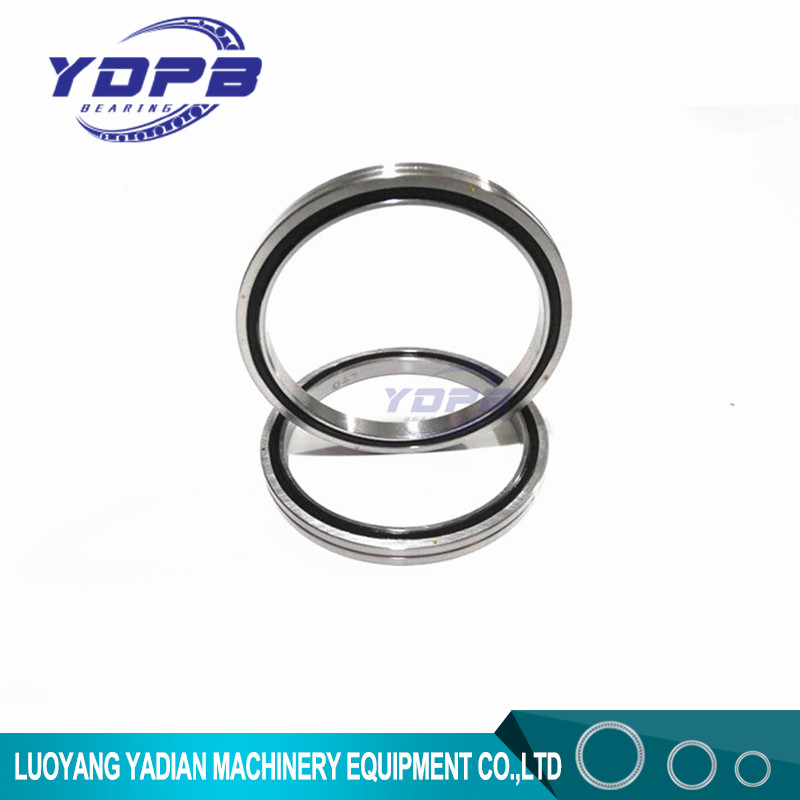

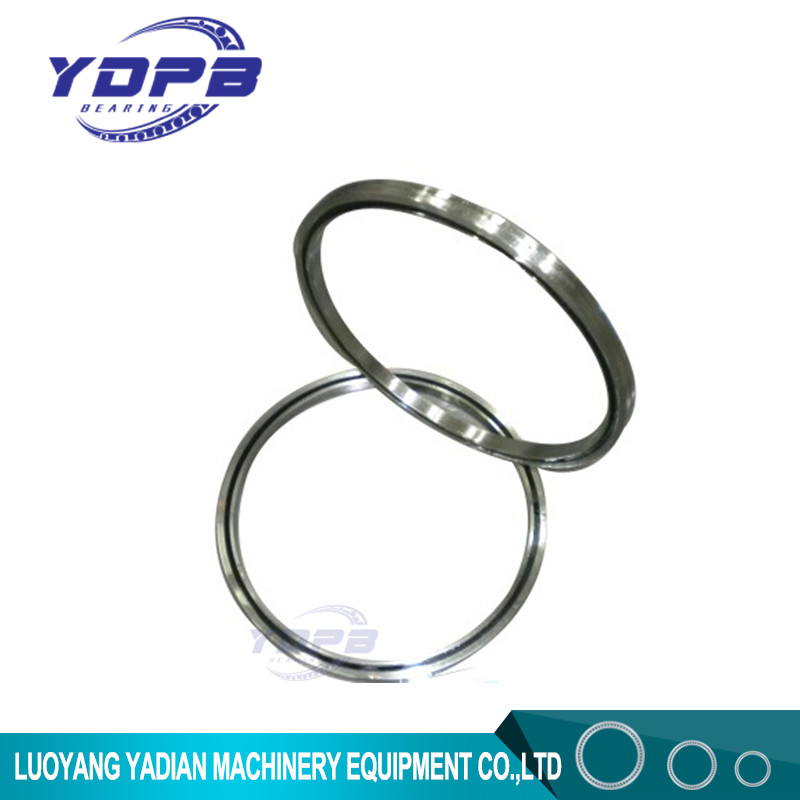

CRBS 1008 UU CC0P5 manipulator cross roller bearing made in china100X116X8mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | CRBS 1008 UU CC0P5 |
Minimum Order Quantity | 1PCS |
Price | 1$ |

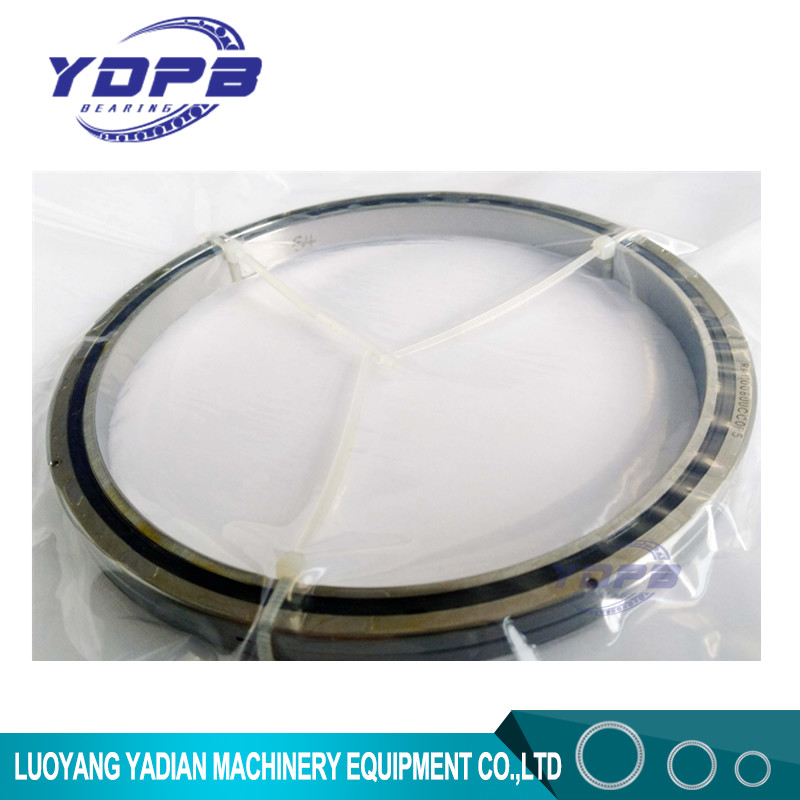

Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | CRBS 1008 UU CC0P5 | Material | GCr15 |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 100X116X8mm |
Application | Robots Arm/machine Tool | Name | Cross Roller Bearing |
CRBS Ultra-thin wall type,integrated inner ring/outer ring Crossed Roller Bearings iko standard,open type and two side seals available.
Model number- CRBS 1008
Inner ring(mm)- 100
Outer ring(mm)- 116
Width(mm)- 8
Weight(Kg)- 0.152
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- both inner ring and outer ring have solid one-piece construction
Series Model NO.
CRBS 5008,CRBS 6008,CRBS 7008,CRBS 8008,,CRBS 9008,CRBS 1008,CRBS 1108,CRBS 1208,CRBS 1308,CRBS 1408,CRBS 1508,CRBS 16013,CRBS 17013,CRBS 18013,CRBS 19013,CRBS 20013,
CRBC 5008,CRBC 6008,CRBC 7008,CRBC 8008,CRBC 9008,CRBC 1008,CRBC 1108,CRBC 1208,CRBC 1308,CRBC 1408,CRBC 1508,CRBC 16013,CRBC 17013,CRBC 18013,CRBC 19013,CRBC 20013.
Structure and Parameters:
Model |
Dimension (mm) |
Basic Load Rating (KN) |
(Weight) (Kg) |
|||||
d | D | B | rsmin | Cr | Cor | W | ||
CRBS 5008 | CRBC 5008 | 50 | 66 | 8 | 0.4 | 4.9 | 6.17 | 0.084 |
CRBS 6008 | CRBC 6008 | 60 | 76 | 8 | 0.4 | 5.35 | 7.31 | 0.094 |
CRBS 7008 | CRBC 7008 | 70 | 86 | 8 | 0.4 | 5.74 | 8.44 | 0.108 |
CRBS 8008 | CRBC 8008 | 80 | 96 | 8 | 0.4 | 6.13 | 9.59 | 0.122 |
CRBS 9008 | CRBC 9008 | 90 | 106 | 8 | 0.4 | 6.49 | 10.7 | 0.135 |
CRBS 1008 | CRBC 1008 | 100 | 116 | 8 | 0.4 | 6.85 | 11.9 | 0.152 |
CRBS 1108 | CRBC 1108 | 110 | 126 | 8 | 0.4 | 7.16 | 13 | 0.163 |
CRBS 1208 | CRBC 1208 | 120 | 136 | 8 | 0.4 | 7.53 | 14.1 | 0.184 |
CRBS 1308 | CRBC 1308 | 130 | 146 | 8 | 0.4 | 7.86 | 15.3 | 0.199 |
CRBS 1408 | CRBC 1408 | 140 | 156 | 8 | 0.4 | 8.06 | 16.4 | 0.205 |
CRBS 1508 | CRBC 1508 | 150 | 166 | 8 | 0.4 | 8.35 | 17.5 | 0.22 |
CRBS 16013 | CRBC 16013 | 160 | 186 | 13 | 0.6 | 20.3 | 39.9 | 0.62 |
CRBS 17013 | CRBC 17013 | 170 | 196 | 13 | 0.6 | 20.9 | 42.2 | 0.675 |
CRBS 18013 | CRBC 18013 | 180 | 206 | 13 | 0.6 | 21.5 | 44.6 | 0.71 |
CRBS 19013 | CRBC 19013 | 190 | 216 | 13 | 0.6 | 22.1 | 46.9 | 0.74 |
CRBS 20013 | CRBC 20013 | 200 | 226 | 13 | 0.6 | 22.5 | 49.3 | 0.78 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
Online shopping Address: https://www.ydpbbearings.com
