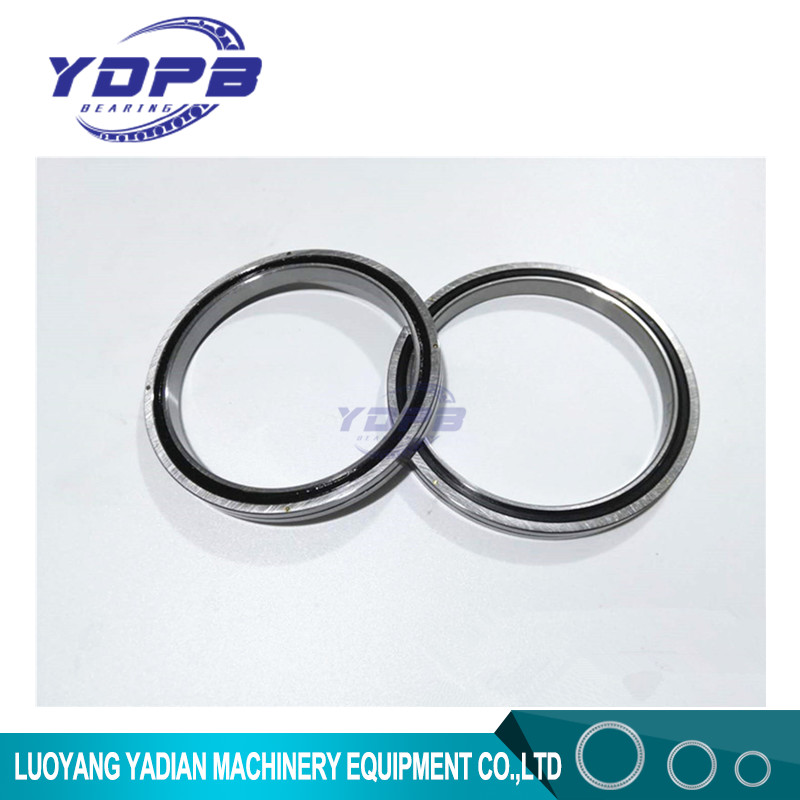

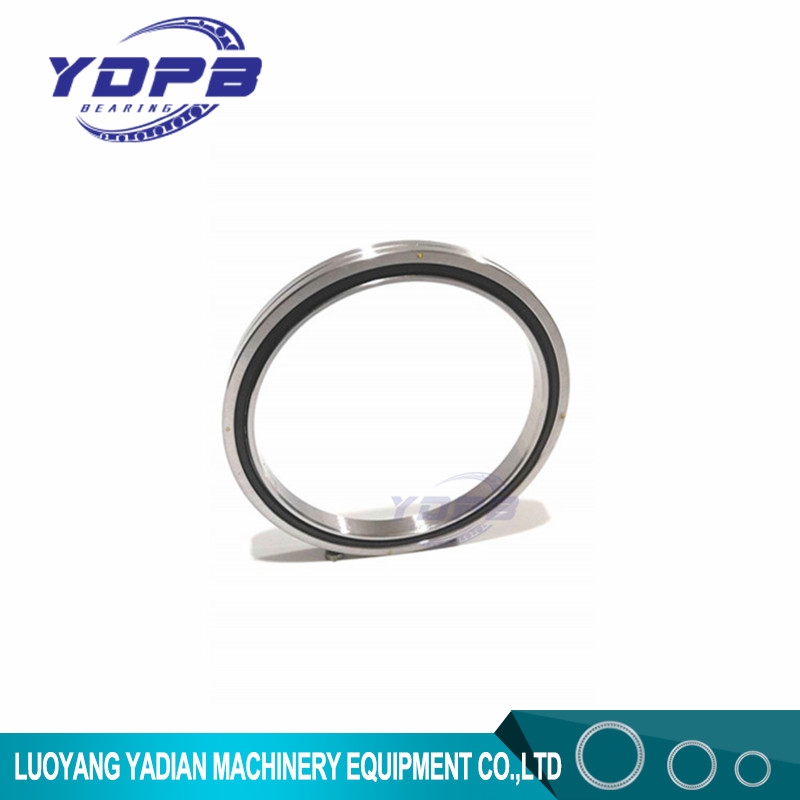

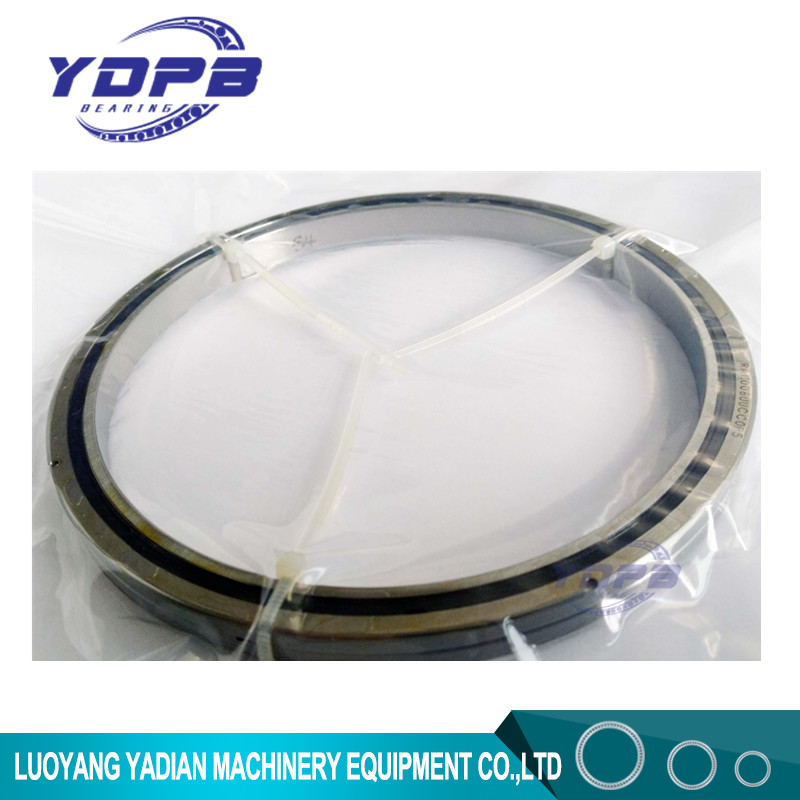

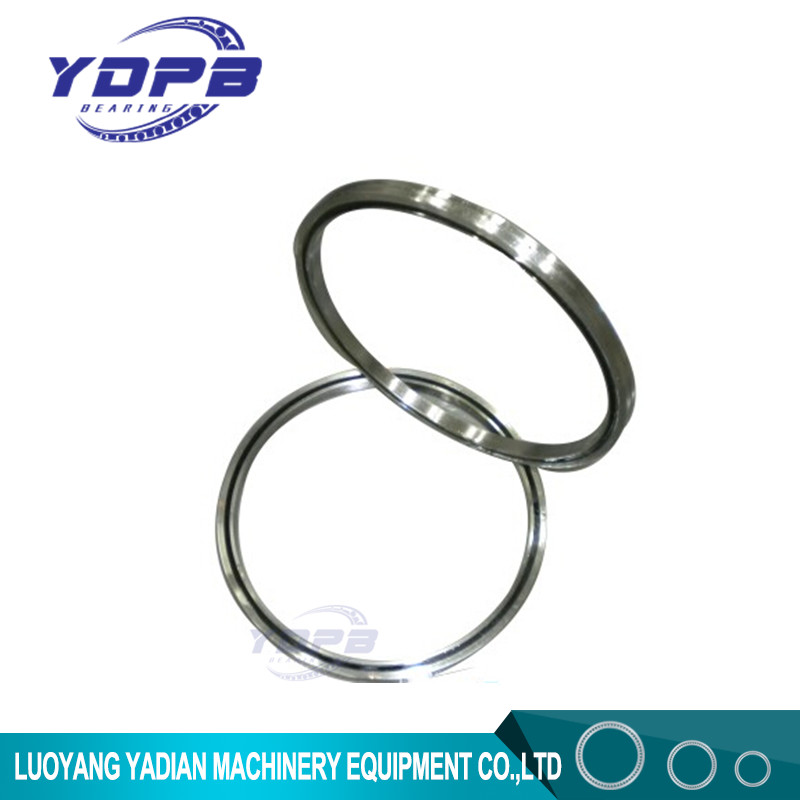

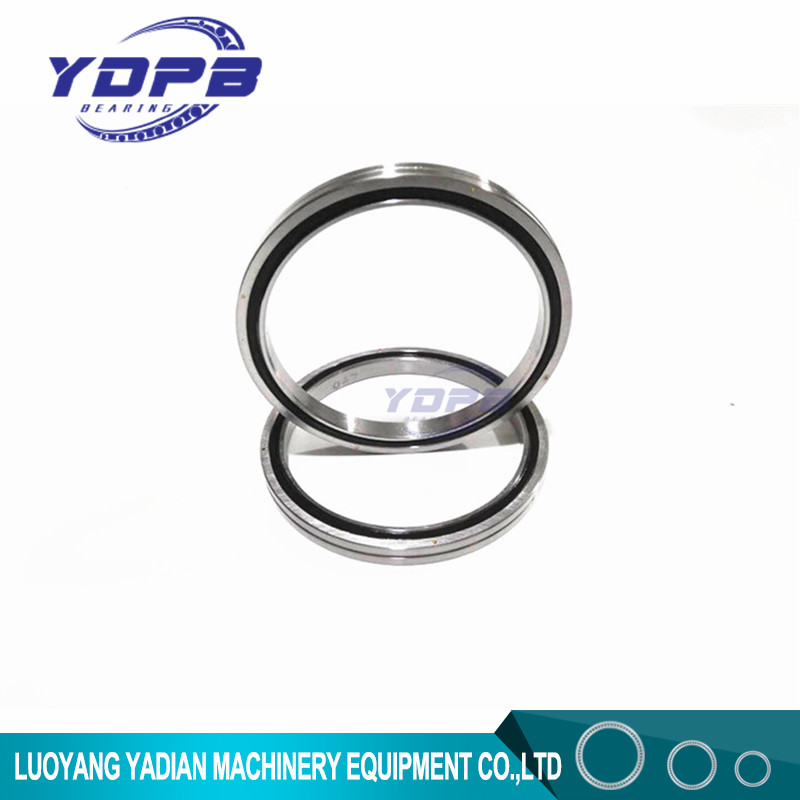

CRBS 1308 UU CC0P5 china crossed cylindrical roller bearings suppliers 130X146X8mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number CRBS 1308 UU CC0P5
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Model CRBS 1308 UU CC0P5 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 130X146X8mm
Application Robots Arm/machine Tool Name Cross Roller Bearing
Leave a Message
Product Description

CRBS Ultra-thin wall type,integrated inner ring/outer ring Crossed Roller Bearings iko standard,open type and two side seals available.
Model number- CRBS 1308
Inner ring(mm)- 130
Outer ring(mm)- 146
Width(mm)- 8
Weight(Kg)- 0.199
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- both inner ring and outer ring have solid one-piece construction

Series Model NO.

CRBS 5008,CRBS 6008,CRBS 7008,CRBS 8008,,CRBS 9008,CRBS 1008,CRBS 1108,CRBS 1208,CRBS 1308,CRBS 1408,CRBS 1508,CRBS 16013,CRBS 17013,CRBS 18013,CRBS 19013,CRBS 20013,

CRBC 5008,CRBC 6008,CRBC 7008,CRBC 8008,CRBC 9008,CRBC 1008,CRBC 1108,CRBC 1208,CRBC 1308,CRBC 1408,CRBC 1508,CRBC 16013,CRBC 17013,CRBC 18013,CRBC 19013,CRBC 20013.

Structure and Parameters:

CRBS 1308 UU CC0P5 china crossed cylindrical roller bearings suppliers 130X146X8mm 0



Model

 Dimension

(mm)

Basic Load Rating

(KN)

(Weight)

(Kg)

d D B rsmin Cr Cor W
CRBS 5008 CRBC 5008 50 66 8 0.4 4.9 6.17 0.084
CRBS 6008 CRBC 6008 60 76 8 0.4 5.35 7.31 0.094
CRBS 7008 CRBC 7008 70 86 8 0.4 5.74 8.44 0.108
CRBS 8008 CRBC 8008 80 96 8 0.4 6.13 9.59 0.122
CRBS 9008 CRBC 9008 90 106 8 0.4 6.49 10.7 0.135
CRBS 1008 CRBC 1008 100 116 8 0.4 6.85 11.9 0.152
CRBS 1108 CRBC 1108 110 126 8 0.4 7.16 13 0.163
CRBS 1208 CRBC 1208 120 136 8 0.4 7.53 14.1 0.184
CRBS 1308 CRBC 1308 130 146 8 0.4 7.86 15.3 0.199
CRBS 1408 CRBC 1408 140 156 8 0.4 8.06 16.4 0.205
CRBS 1508 CRBC 1508 150 166 8 0.4 8.35 17.5 0.22
CRBS 16013 CRBC 16013 160 186 13 0.6 20.3 39.9 0.62
CRBS 17013 CRBC 17013 170 196 13 0.6 20.9 42.2 0.675
CRBS 18013 CRBC 18013 180 206 13 0.6 21.5 44.6 0.71
CRBS 19013 CRBC 19013 190 216 13 0.6 22.1 46.9 0.74
CRBS 20013 CRBC 20013 200 226 13 0.6 22.5 49.3 0.78

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
