KAA10AG0 China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number KAA10AG0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material GCR15 Precision P6,P5,P4
Structure Custom Made Available OEM Available
Leave a Message
Product Description

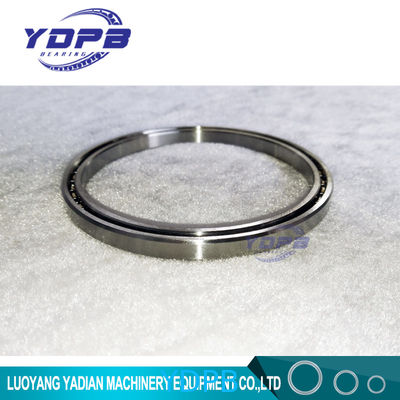

KAA10AG0 Size 25.4x34.925x4.763mm China thin section bearings Open type angular contact bearing

Model number- KAA10AG0
Thin section ball bearing
Inner ring(mm)-25.4
Outer ring(mm)-34.925
Width(in)- 4.763

Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section



Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.



Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing


Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life



Main parameters

 TYpe          Dimension  Basic Load rating( N) Weight Interchange
         (inch/mm)   Cap. Kg
d D L1 L2 Cor Cr   NTN KAYDDON
YDKAA10CL0 1 1.375 1.142 1.236 1290 670 0.012 KRS010 KAA10CL0
25.4 34.925 29 31.4
YDKAA15CL0 1.5 1.875 1.642 1.736 1780 800 0.018 KRS015 KAA15CL0
38.1 47.625 41.7 44.1
YDKA020CP0 2 2.5 2.186 2.134 3020 1420 0.048 KRA020 KA020CP0
50.8 63.5 55.5 58.8
YDKA025CP0 2.5 3 2.686 2.814 3690 1600 0.059 KRA025 KA025CP0
63.5 76.2 68.2 71.5
YDKA030CP0 3 3.5 3.186 3.314 4400 1820 0.068 KRA030 KA030CP0
76.2 88.9 80.9 84.2
YDKA035CP0 3.5 4 3.686 3.814 5070 2000 0.082 KRA035 KA035CP0
88.9 101.6 93.6 96.9
YDKA040CP0 4 4.5 4.186 4.314 5730 2130 0.09 KRA040 KA040CP0
101.6 114.3 106.3 109.6
YDKA042CP0 4.25 4.75 4.436 4.564 6090 2220 0.095 KRA042 KA042CP0
107.95 120.65 112.7 115.9
YDKA045CP0 4.5 5 4.686 4.814 6400 2310 0.1 KRA045 KA045CP0
114.3 127 119 122.3
YDKA047CP0 4.75 5.25 4.936 5.064 6760 2400 0.104 KRA047 KA047CP0
120.65 133.35 125.4 128.6
YDKA050CP0 5 5.5 5.186 5.314 7070 2490 0.109 KRA050 KA050CP0
127 139.7 131.7 135



Application

Aerospace and defense

Astronomy instrumentation

Fixturing and workholding equipment

Food processing equipment

Glassworking equipment

Index and rotary tables

Packaging equipment

Machine tools

Medical systems and medical devices

Optical scanning equipment

Tire making equipment



Related details

KAA10AG0   China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm 0

KAA10AG0   China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm 1

KAA10AG0   China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm 2

KAA10AG0   China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm 3



Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,

KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,

KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,

KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,


KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,

KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,

Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,

JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,

JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,

JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,



Transportation available
KAA10AG0   China thin section bearings Kaydon standard open-type 25.4x34.925x4.76 3mm 4
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
