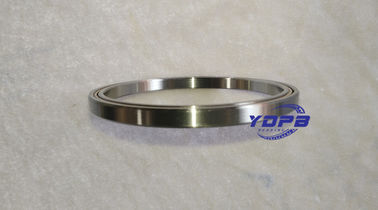

KB042CPO China Thin Section Bearings for Semiconductor manufacturing equipment 107.95x123.825x7.938mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | GCR15 | Precision | P6,P5,P4 |
---|---|---|---|
Structure | Custom Made Available | OEM | Available |
Dimension | 107.95x123.825x7.938mm |
KB042CPO Size 107.95x123.825x7.938mm Driving Motors thin section Bearing Kaydon standard open-type
Model number- KB042CPO
Thin section ball bearing
Inner ring(mm)-107.95
Outer ring(mm)-123.825
Width(in)- 7.938
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Description
YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.
Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life
Main parameters
Dimension | Basic Load rating | Weight | Interchange | |||||
(inch/mm) | Basic Cap.N | Kg | ||||||
d | D | L1 | L2 | Cor | Cr | NTN | KAYDDON | |
2 | 2.625 | 2.231 | 2.393 | 4130 | 2000 | 0.073 | KRB020 | KB020CP0 |
50.8 | 66.675 | 56.7 | 60.8 | |||||
2.5 | 3.125 | 2.731 | 2.893 | 5070 | 2310 | 0.091 | KRB025 | KB025CP0 |
63.5 | 79.375 | 69.4 | 73.5 | |||||
3 | 3.625 | 3.231 | 3.393 | 5960 | 2580 | 0.109 | KRB030 | KB030CP0 |
76.2 | 92.075 | 82.1 | 86.2 | |||||
3.5 | 4.125 | 3.731 | 3.893 | 6850 | 2800 | 0.125 | KRB035 | KB035CP0 |
88.9 | 104.775 | 94.8 | 98.9 | |||||
4 | 4.625 | 4.432 | 4.393 | 7780 | 3070 | 0.14 | KRB040 | KB040CP0 |
101.6 | 117.475 | 107.5 | 111.6 | |||||
4.2 | 4.875 | 4.481 | 4.643 | 8130 | 3160 | 0.147 | KRB042 | KB042CP0 |
107.95 | 123.825 | 113.8 | 117.9 | |||||
4.5 | 5.125 | 4.731 | 4.893 | 8670 | 3290 | 0.16 | KRB045 | KB045CP0 |
114.3 | 130.175 | 120.2 | 124.3 | |||||
4.75 | 5.375 | 4.981 | 5.143 | 9020 | 3380 | 0.163 | KRB047 | KB047CP0 |
120.65 | 136.525 | 126.6 | 130.6 | |||||
5 | 5.625 | 5.231 | 5.393 | 9560 | 3510 | 0.172 | KRB050 | KB050CP0 |
127 | 142.875 | 132.9 | 137 | |||||
5.5 | 6.125 | 5.731 | 5.893 | 10490 | 3730 | 0.186 | KRB055 | KB055CP0 |
139.7 | 155.575 | 145.6 | 149.7 | |||||
6 | 6.625 | 6.231 | 6.393 | 11380 | 3960 | 0.205 | KRB060 | KB060CP0 |
152.4 | 168.275 | 158.3 | 162.4 | |||||
6.5 | 7.125 | 6.731 | 6.893 | 12270 | 4130 | 0.216 | KRB065 | KB065CP0 |
165.1 | 180.975 | 171 | 175.1 | |||||
7 | 7.625 | 7.231 | 7.393 | 13200 | 4360 | 0.232 | KRB070 | KB070CP0 |
177.8 | 193.675 | 183.7 | 187.8 | |||||
7.5 | 8.125 | 7.731 | 7.893 | 14090 | 4530 | 0.25 | KRB075 | KB075CP0 |
190.5 | 206.375 | 196.4 | 200.5 | |||||
8 | 8.625 | 8.231 | 8.393 | 14980 | 4670 | 0.262 | KRB080 | KB080CP0 |
203.2 | 219.075 | 209.1 | 213.2 | |||||
9 | 9.625 | 9.231 | 9.393 | 16800 | 5110 | 0.3 | KRB090 | KB090CP0 |
228.6 | 244.475 | 234.5 | 238.6 | |||||
10 | 10.625 | 10.231 | 10.393 | 18620 | 5470 | 0.331 | KRB100 | KB100CP0 |
254 | 269.875 | 259.9 | 264 | |||||
11 | 11.625 | 11.231 | 11.393 | 20400 | 5820 | 0.36 | KRB110 | KB110CP0 |
279.4 | 295.275 | 285.3 | 289.4 | |||||
12 | 12.625 | 12.231 | 12.393 | 22230 | 6180 | 0.39 | KRB120 | KB120CP0 |
304.8 | 320.675 | 310.7 | 314.8 | |||||
14 | 14.625 | 14.231 | 14.393 | 25830 | 6800 | 0.476 | KRB140 | KB140CP0 |
355.6 | 371.475 | 361.5 | 365.6 | |||||
16 | 16.625 | 16.231 | 16.393 | 29430 | 7420 | 0.544 | KRB160 | KB160CP0 |
406.4 | 422.275 | 412.3 | 416.4 | |||||
18 | 18.625 | 18.231 | 18.393 | 33070 | 8050 | 0.612 | KRB180 | KB180CP0 |
457.2 | 473.075 | 463.1 | 467.2 | |||||
20 | 20.625 | 20.231 | 20.393 | 36670 | 8620 | 0.68 | KRB200 | KB200CP0 |
508 | 523.875 | 513.9 | 518 |
Application
Aerospace and defense
Astronomy instrumentation
Fixturing and workholding equipment
Food processing equipment
Glassworking equipment
Index and rotary tables
Packaging equipment
Machine tools
Medical systems and medical devices
Optical scanning equipment
Tire making equipment
Related details
Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,
KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,
KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,
KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,
KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,
KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,
Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,
JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,
JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,
JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,
Transportation available
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
