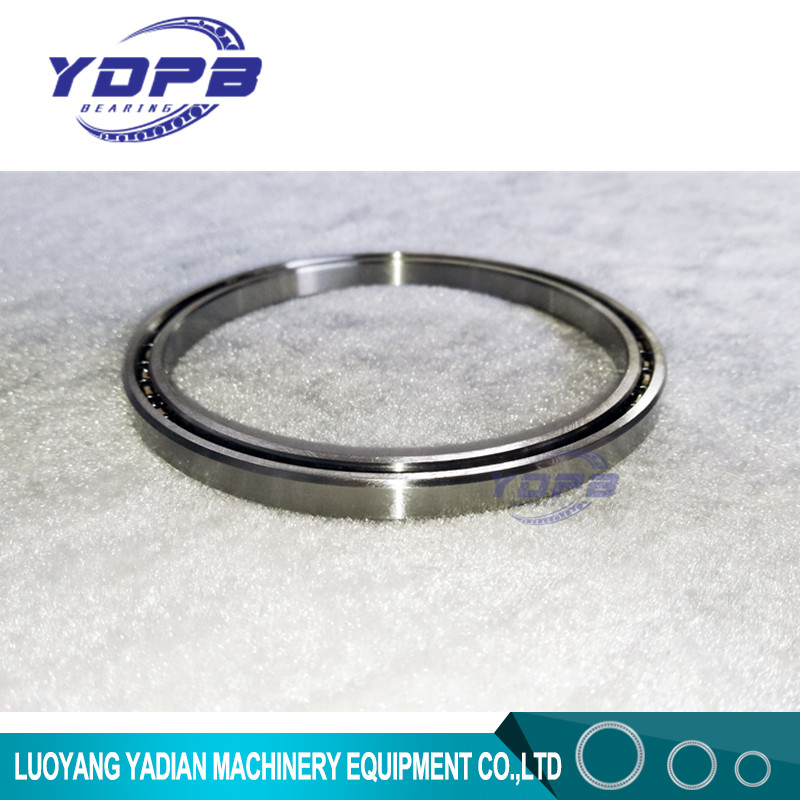

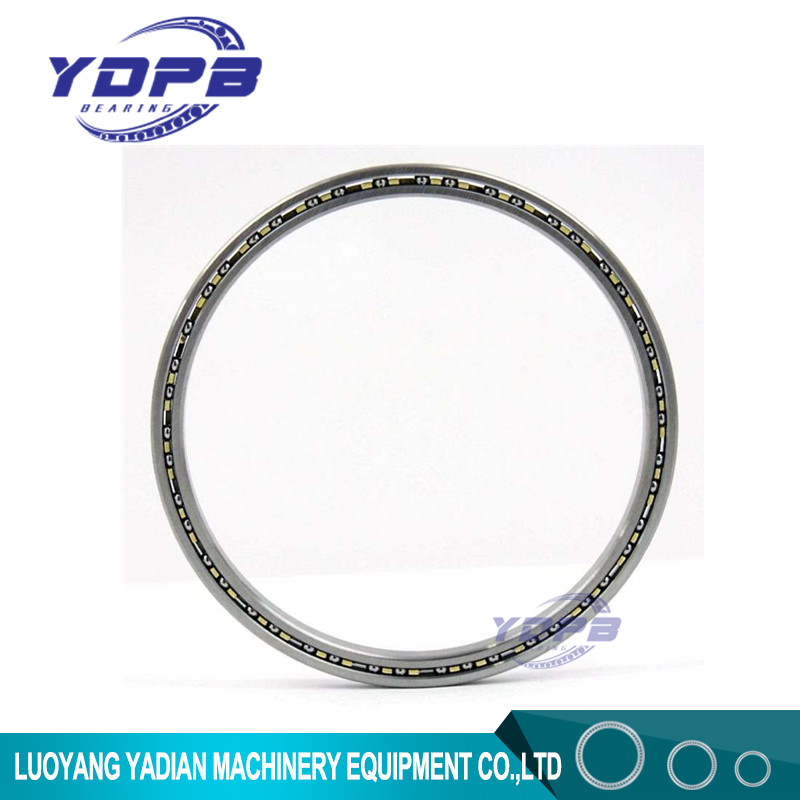

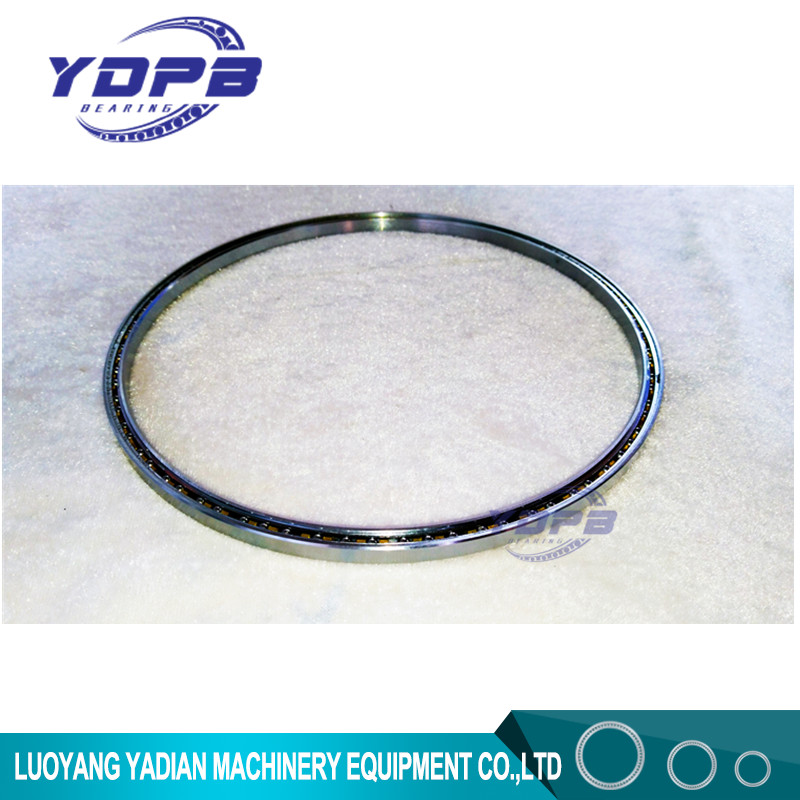

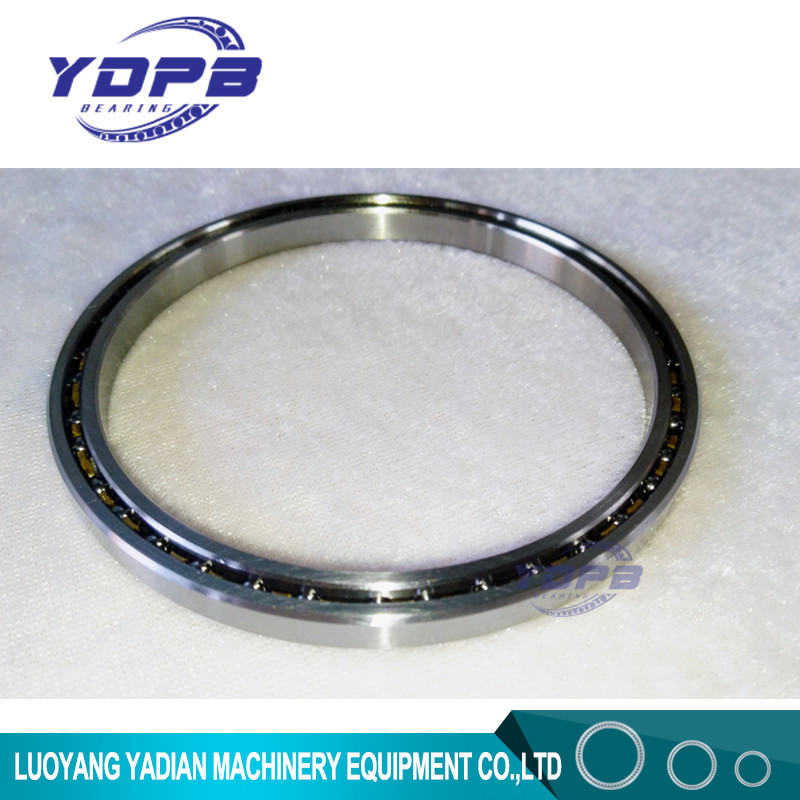

KB055CPO Kaydon thin section ball bearings 139.7x155.575x7.938mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | GCR15 | Precision | P6,P5,P4 |
---|---|---|---|
Structure | Custom Made Available | OEM | Available |
Dimension | 139.7x155.575x7.938mm |
KB055CPO Size 139.7x155.575x7.938mm Driving Motors thin section Bearing Kaydon standard open-type
Model number- KB055CPO
Thin section ball bearing
Inner ring(mm)-139.7
Outer ring(mm)-155.575
Width(in)- 7.938
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P6/P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Description
YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

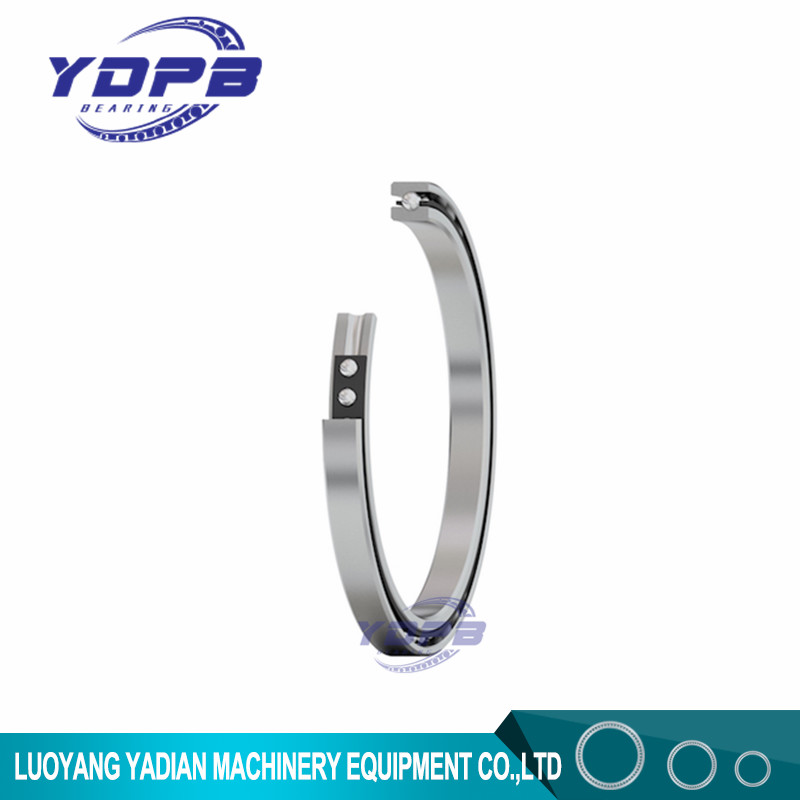

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing
Feature
1. compact structure, light weight, low vibration and friction
2. high precision,
3. space and cost saving
4. best quality, long life
Main parameters
Dimension | Basic Load rating | Weight | Interchange | |||||
(inch/mm) | Basic Cap.N | Kg | ||||||
d | D | L1 | L2 | Cor | Cr | NTN | KAYDDON | |
2 | 2.625 | 2.231 | 2.393 | 4130 | 2000 | 0.073 | KRB020 | KB020CP0 |
50.8 | 66.675 | 56.7 | 60.8 | |||||
2.5 | 3.125 | 2.731 | 2.893 | 5070 | 2310 | 0.091 | KRB025 | KB025CP0 |
63.5 | 79.375 | 69.4 | 73.5 | |||||
3 | 3.625 | 3.231 | 3.393 | 5960 | 2580 | 0.109 | KRB030 | KB030CP0 |
76.2 | 92.075 | 82.1 | 86.2 | |||||
3.5 | 4.125 | 3.731 | 3.893 | 6850 | 2800 | 0.125 | KRB035 | KB035CP0 |
88.9 | 104.775 | 94.8 | 98.9 | |||||
4 | 4.625 | 4.432 | 4.393 | 7780 | 3070 | 0.14 | KRB040 | KB040CP0 |
101.6 | 117.475 | 107.5 | 111.6 | |||||
4.2 | 4.875 | 4.481 | 4.643 | 8130 | 3160 | 0.147 | KRB042 | KB042CP0 |
107.95 | 123.825 | 113.8 | 117.9 | |||||
4.5 | 5.125 | 4.731 | 4.893 | 8670 | 3290 | 0.16 | KRB045 | KB045CP0 |
114.3 | 130.175 | 120.2 | 124.3 | |||||
4.75 | 5.375 | 4.981 | 5.143 | 9020 | 3380 | 0.163 | KRB047 | KB047CP0 |
120.65 | 136.525 | 126.6 | 130.6 | |||||
5 | 5.625 | 5.231 | 5.393 | 9560 | 3510 | 0.172 | KRB050 | KB050CP0 |
127 | 142.875 | 132.9 | 137 | |||||
5.5 | 6.125 | 5.731 | 5.893 | 10490 | 3730 | 0.186 | KRB055 | KB055CP0 |
139.7 | 155.575 | 145.6 | 149.7 | |||||
6 | 6.625 | 6.231 | 6.393 | 11380 | 3960 | 0.205 | KRB060 | KB060CP0 |
152.4 | 168.275 | 158.3 | 162.4 | |||||
6.5 | 7.125 | 6.731 | 6.893 | 12270 | 4130 | 0.216 | KRB065 | KB065CP0 |
165.1 | 180.975 | 171 | 175.1 | |||||
7 | 7.625 | 7.231 | 7.393 | 13200 | 4360 | 0.232 | KRB070 | KB070CP0 |
177.8 | 193.675 | 183.7 | 187.8 | |||||
7.5 | 8.125 | 7.731 | 7.893 | 14090 | 4530 | 0.25 | KRB075 | KB075CP0 |
190.5 | 206.375 | 196.4 | 200.5 | |||||
8 | 8.625 | 8.231 | 8.393 | 14980 | 4670 | 0.262 | KRB080 | KB080CP0 |
203.2 | 219.075 | 209.1 | 213.2 | |||||
9 | 9.625 | 9.231 | 9.393 | 16800 | 5110 | 0.3 | KRB090 | KB090CP0 |
228.6 | 244.475 | 234.5 | 238.6 | |||||
10 | 10.625 | 10.231 | 10.393 | 18620 | 5470 | 0.331 | KRB100 | KB100CP0 |
254 | 269.875 | 259.9 | 264 | |||||
11 | 11.625 | 11.231 | 11.393 | 20400 | 5820 | 0.36 | KRB110 | KB110CP0 |
279.4 | 295.275 | 285.3 | 289.4 | |||||
12 | 12.625 | 12.231 | 12.393 | 22230 | 6180 | 0.39 | KRB120 | KB120CP0 |
304.8 | 320.675 | 310.7 | 314.8 | |||||
14 | 14.625 | 14.231 | 14.393 | 25830 | 6800 | 0.476 | KRB140 | KB140CP0 |
355.6 | 371.475 | 361.5 | 365.6 | |||||
16 | 16.625 | 16.231 | 16.393 | 29430 | 7420 | 0.544 | KRB160 | KB160CP0 |
406.4 | 422.275 | 412.3 | 416.4 | |||||
18 | 18.625 | 18.231 | 18.393 | 33070 | 8050 | 0.612 | KRB180 | KB180CP0 |
457.2 | 473.075 | 463.1 | 467.2 | |||||
20 | 20.625 | 20.231 | 20.393 | 36670 | 8620 | 0.68 | KRB200 | KB200CP0 |
508 | 523.875 | 513.9 | 518 |
Application
Aerospace and defense
Astronomy instrumentation
Fixturing and workholding equipment
Food processing equipment
Glassworking equipment
Index and rotary tables
Packaging equipment
Machine tools
Medical systems and medical devices
Optical scanning equipment
Tire making equipment
Related details
Models list
Open type thin section kaydon deep groove ball bearing:
KA020CP0, KA025CP0, KA030CP0, KA035CP0, KA040CP0, KA042CP0, KA045CP0, KA047CP0, KA050CP0, KA055CP0, KA060CP0, KA065CP0, KA070CP0, KA075CP0, KA080CP0, KA090CP0, KA100CP0, KA110CP0, KA120CP0,
KB020CP0, KB025CP0, KB030CP0, KB035CP0, KB040CP0, KB042CP0, KB045CP0, KB047CP0, KB050CP0, KB055CP0, KB060CP0, KB065CP0, KB070CP0, KB075CP0, KB080CP0, KB090CP0, KB100CP0, KB110CP0, KB120CP0, KB140CP0, KB160CP0, KB180CP0, KB200CP0,
KC040CP0, KC042CP0, KC045CP0, KC047CP0, KC050CP0, KC055CP0, KC060CP0, KC065CP0, KC070CP0, KC075CP0, KC080CP0, KC090CP0, KC100CP0, KC110CP0, KC120CP0, KC140CP0, KC160CP0, KC180CP0, KC200CP0,
KD040CP0, KD042CP0, KD045CP0, KD047CP0, KD050CP0, KD055CP0, KD060CP0, KD065CP0, KD070CP0, KD075CP0, KD080CP0, KD090CP0, KD100CP0, KD110CP0, KD120CP0, KD140CP0, KD160CP0, KD180CP0, KD200CP0,
KF040CP0, KF042CP0, KF045CP0, KF047CP0, KF050CP0, KF055CP0, KF060CP0, KF065CP0, KF070CP0, KF075CP0, KF080CP0, KF090CP0, KF100CP0, KF110CP0, KF120CP0, KF140CP0, KF160CP0, KF180CP0, KF200CP0,
KG040CP0, KG042CP0, KG045CP0, KG047CP0, KG050CP0, KG055CP0, KG060CP0, KG065CP0, KG070CP0, KG075CP0, KG080CP0, KG090CP0, KG100CP0, KG110CP0, KG120CP0, KG140CP0, KG160CP0, KG180CP0, KG200CP0,
Sealed type thin section kaydon deep groove ball bearing:
JA020CP0, JA025CP0, JA030CP0, JA035CP0, JA040CP0, JA042CP0, JA045CP0, JA047CP0, JA050CP0, JA055CP0, JA060CP0, JA065CP0,
JB020CP0, JB025CP0, JB030CP0, JB035CP0, JB040CP0, JB042CP0, JB045CP0, JB047CP0, JB050CP0, JB055CP0, JB060CP0, JB065CP0,
JU040CP0, JU042CP0, JU045CP0, JU047CP0, JU050CP0, JU055CP0, JU060CP0, JU065CP0, JU070CP0, JU075CP0, JU080CP0, JU090CP0, JU100CP0, JU110CP0, JU120CP0,
JG120CP0, JG140CP0, JG160CP0, JG180CP0, JG200CP0,
