K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number K05020XP0
Minimum Order Quantity 1PCS
Price 1$
Packaging Details standard export packaging
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material GCR15 Precision P6,P5
Structure Custom Made Available OEM Available
Leave a Message
Product Description

Description

YDPB is professional on the bearings inlcude Kaydon standard think section bearings ,THK IKO

standard crossed roller bearings,INA standard Rotary Table bearings ,and also with many stock ones

flexible deep groove ball bearings used for harmonic drive, custom made bearings avaible.

Kaydon thin-section bearings Structure
Open type deep groove ball bearing
Open type angular contact bearing
Open type four point contact bearing
Sealed type deep groove ball bearing
Sealed four point contact ball bearing

Feature
1. compact structure, light weight, low vibration and friction

2. space and cost saving
3. best quality, long life

Parameters and related photoes for thin section ball bearings YDPB produce

20mm Series
Model Dimension Load capacity Weight
Basic Size Side wall size Radial Axial Torque N-m
id OD L1 L2 Static Dynamic Static Dynamic Static Dynamic
K05020XP0 50 90 65 75 1845 1827 3999 2418 549 470 0.52
K06020XP0 60 100 75 85 1906 1887 4363 2562 685 556 0.59

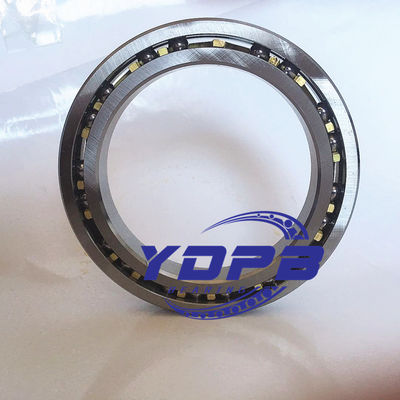

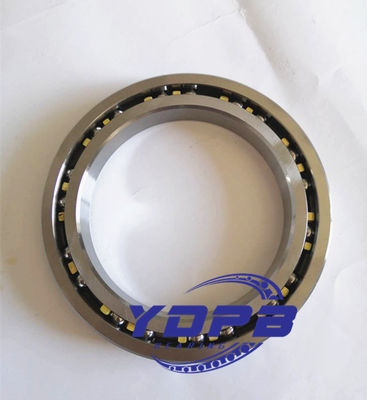

K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel 0K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel 1

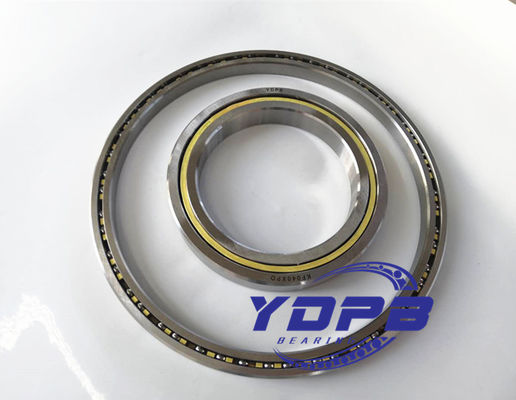

K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel 2

K20013 thin section ball bearing

Application

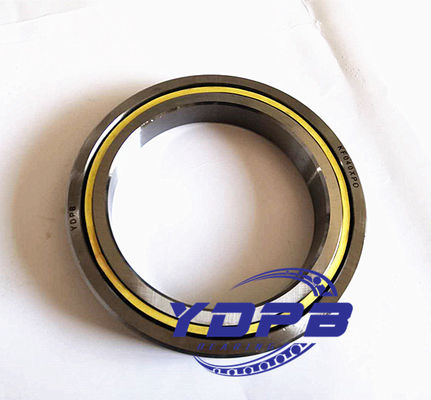

K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel 4

Transport

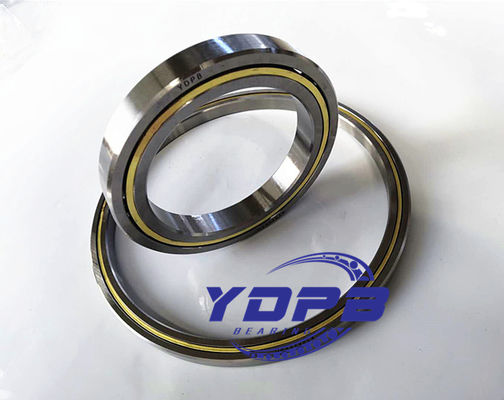

K05020XP0 Thin Section Bearings For Gear boxes Brass Cage Custom Made Bearings Stainless Steel 5

Drawings,price and other information needed ,pls send us email ydbearing@foxmail.com or call us directly .
