CRBT805AP5 Super Slim Crossed Roller Bearing 80x91x5mm automation bearing china supplier
| Place of Origin | Luoyang，China |
|---|---|
| Brand Name | YDPB |
| Certification | ISO |
| Model Number | CRBT805AP5 |
| Minimum Order Quantity | 1PCS |
| Price | 150$ |
| Packaging Details | plastic vacumme package+foam+carton+plywood cases(more quantity) |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T, Western Union, MoneyGram, |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Bearing Steel | Dimension | 80x91x5mm |
|---|---|---|---|
| Structure | Single Row Cylindrica Roller | Precision | P5 |
| Delivery Period | 1-20days |
Product Description

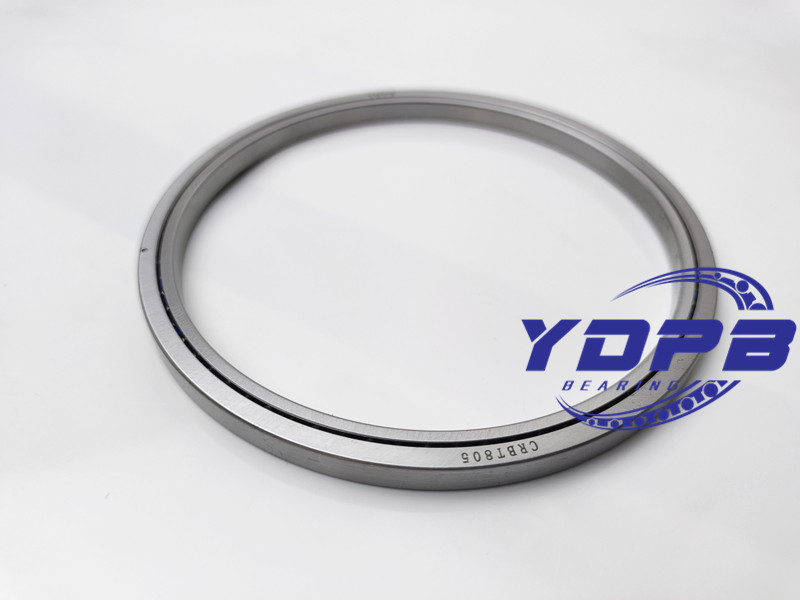

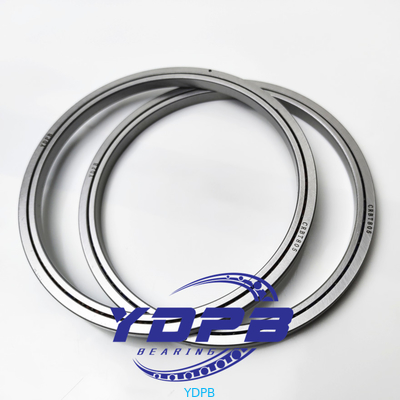

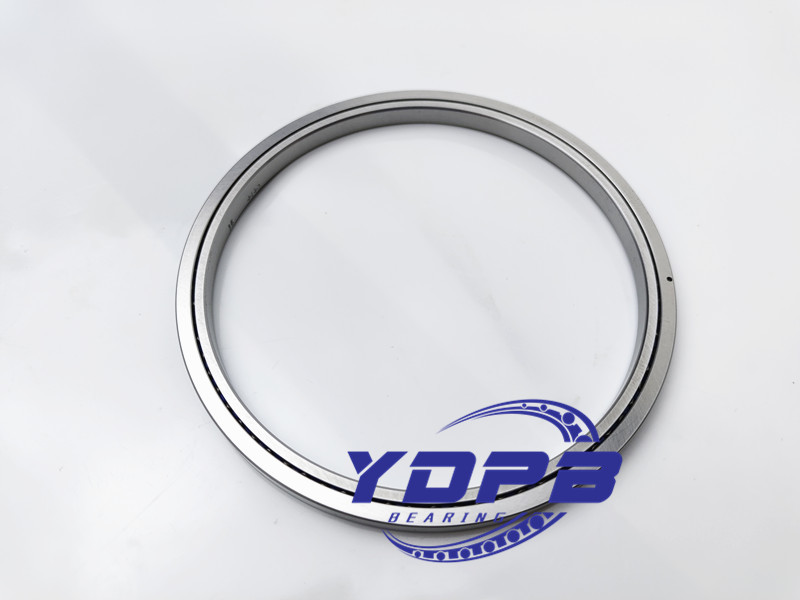

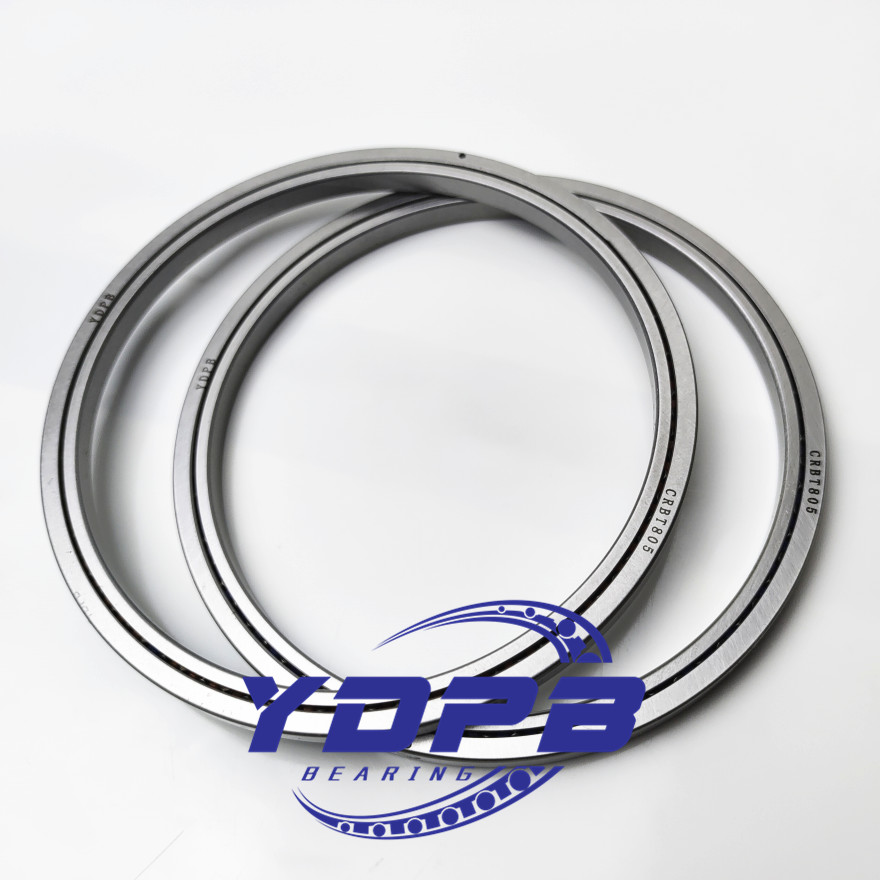

CRBT805A super slim Crossed roller bearing 80x91x5mm automation bearing
| Shaft dia. mm |
Identification number | Boundary dimensions (mm) | Mounting dimensions (mm) |
Basic dynamic load rating C |
Basic static load rating C0 |
Mass (Ref.) g |
||||
| d | D | B | rmin | da | Da | N | N | |||
| 80 | CRBT805A | 80 | 91 | 5 | 0.15 | 82.5 | 87 | 3.05 | 5.43 | 50 |
Features of Super Slim Type Crossed Roller Bearing CRBT
- The world's thinnest roller type!
- Very low cross sectional height of 5.5 mm
- The cross sectional height is reduced by 69% in comparison with CRBS, which was the thinnest before (bearing bore diameter 50 mm). The width is also as small as 5 mm and the cross sectional area is reduced by 43% in comparison with conventional products.
- Significant weight saving by 38% in comparison with conventional types was realized
- Weight reduction is thoroughly pursued.
