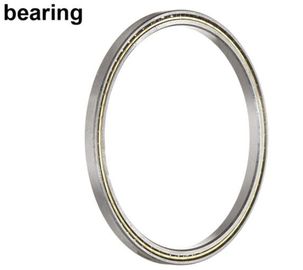

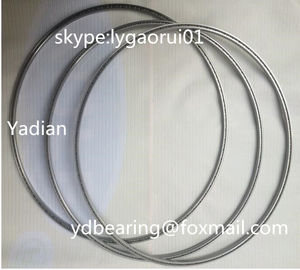

KG045CP0 open reali-slim bearing in stock, 4.5X6.5X1 china super-thin section cross roller bearing supplier
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | KG045CP0 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | KG045CP0 | Material | Bearing Steel |
---|---|---|---|
Structure | Angular Contact Ball | Dimension | 4.5x6.5x1 Inch |
Application | Robots | Name | China Super-thin Section Cross Roller Bearing Supplier |
Model number- KG045CP0
Thin section ball bearing
Inner ring(in)- 4.5
Outer ring(in)-6.5
Width(in)- 1
Weight(lb)- 1.81
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section china super-thin section cross roller bearing supplier
Series Model No. KG040CP0.KG042CP0.KG045CP0.KG047CP0.KG050CP0.KG055CP0.KG060CP0.KG065CP0.KG070CP0.KG075CP0.KG080CP0.KG090CP0.KG100CP0.KG110CP0.KG120CP0.KG140CP0.KG160CP0 .KG180CP0.KG200CP0.KG220CP0.KG250CP0.KG300CP0.KG350CP0.KG400CP0
Features
The thin-section radial contact ball bearing primarily designed for deep groove ball bearing to sustain heavy pressure. The basic design intention is not only to support radical load , but also can sustain middle axial load, rotary load and moment load.
Parameters
Model | Dimension | Basic load rating | Weight | |||||
d | D | Width | L1 | L2 | Cor | Cr | ||
inch | Pounds | |||||||
KG040CP0 | 4 | 6 | 1 | 4.742 | 5.258 | 36490 | 20000 | 1.65 |
KG042CP0 | 4.25 | 6.25 | 1 | 4.992 | 5.508 | 36490 | 20000 | 1.75 |
KG045CP0 | 4.5 | 6.5 | 1 | 5.242 | 5.758 | 38940 | 20900 | 1.81 |
KG047CP0 | 4.75 | 6.75 | 1 | 5.492 | 6.008 | 41340 | 21740 | 1.91 |
KG050CP0 | 5 | 7 | 1 | 5.742 | 6.258 | 43780 | 22580 | 2.02 |
KG055CP0 | 5.5 | 7.5 | 1 | 6.242 | 6.758 | 46230 | 23430 | 2.17 |
KG060CP0 | 6 | 8 | 1 | 6.724 | 7.258 | 51070 | 25030 | 2.31 |
KG065CP0 | 6.5 | 8.5 | 1 | 7.242 | 7.758 | 53520 | 25830 | 2.47 |
KG070CP0 | 7 | 9 | 1 | 7.742 | 8.258 | 58360 | 27380 | 2.67 |
KG075CP0 | 7.5 | 9.5 | 1 | 8.242 | 8.758 | 60810 | 28140 | 2.83 |
KG080CP0 | 8 | 10 | 1 | 8.742 | 9.258 | 65650 | 29600 | 3 |
KG090CP0 | 9 | 11 | 1 | 9.742 | 10.258 | 72990 | 31780 | 3.3 |
KG100CP0 | 10 | 12 | 1 | 10.742 | 11.258 | 80280 | 33870 | 3.65 |
KG110CP0 | 11 | 13 | 1 | 11.742 | 12.258 | 87570 | 35870 | 3.96 |
KG120CP0 | 12 | 14 | 1 | 12.472 | 13.258 | 94860 | 37830 | 4.32 |
KG140CP0 | 14 | 16 | 1 | 14.742 | 15.258 | 109440 | 41600 | 4.96 |
KG160CP0 | 16 | 18 | 1 | 16.742 | 17.258 | 124060 | 45250 | 5.65 |
KG180CP0 | 18 | 20 | 1 | 18.742 | 19.258 | 138640 | 48720 | 6.28 |
KG200CP0 | 20 | 22 | 1 | 20.742 | 21.258 | 153220 | 52100 | 7.53 |
Other Thin section Radial Ball Bearings
KA series
KAA10CL0 KAA15CL0 KAA17CL0 KA020CP0 KA025CP0 KA030CP0 KA035CP0 KA040CP0 KA042CP0 KA045CP0 KA047CP0 KA050CP0 KA055CP0 KA060CP0 KA065CP0 KA070CP0 KA075CP0 KA080CP0 KA090CP0 KA100CP0 KA110CP0 KA120CP0
KB Series
KB020CP0 KB025CP0 KB030CP0 KB035CP0 KB040CP0 KB042CP0 KB045CP0 KB047CP0 KB050CP0 KB055CP0 KB060CP0 KB065CP0 KB070CP0 KB075CP0 KB080CP0 KB090CP0 KB100CP0 KB110CP0 KB120CP0 KB140CP0 KB160CP0 KB180CP0 KB200CP0
KC series
KC040CP0 KC042CP0 KC045CP0 KC047CP0 KC050CP0 KC055CP0 KC060CP0 KC065CP0 KC070CP0 KC075CP0 KC080CP0 KC090CP0 KC100CP0 KC110CP0 KC120CP0 KC140CP0 KC160CP0 KC180CP0 KC200CP0 KC250CP0 KC300CP0
KD series
KD040CP0 KD042CP0 KD045CP0 KD047CP0 KD050CP0 KD055CP0 KD060CP0 KD065CP0 KD070CP0 KD075CP0 KD080CP0 KD090CP0 KD100CP0 KD110CP0 KD120CP0 KD140CP0 KD160CP0 KD180CP0 KD200CP0 KD210CP0 KD250CP0 KD300CP0
KF series
KF040CP0 KF042CP0 KF045CP0 KF047CP0 KF050CP0 KF055CP0 KF060CP0 KF065CP0 KF070CP0 KF075CP0 KF080CP0 KF090CP0 KF100CP0 KF110CP0 KF120CP0 KF140CP0 KF160CP0 KF180CP0 KF200CP0 KF250CP0 KF300CP0 KF350CP0 KF400CP0
KG series
KG040CP0 KG042CP0 KG045CP0 KG047CP0 KG050CP0 KG055CP0 KG060CP0 KG065CP0 KG070CP0 KG075CP0 KG080CP0 KG090CP0 KG100CP0 KG110CP0 KG120CP0 KG140CP0 KG160CP0 KG180CP0 KG200CP0 KG220CP0 KG250CP0 KG300CP0 KG350CP0 KG400CP0
Related Pictures
Transportation available
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
