KG075CP0/KRG075/CSCG075 thin section cross roller bearing factory

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number KG075CP0/KRG075/CSCG075
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model KG075CP0/KRG075/CSCG075 Material Bearing Steel
Structure Angular Contact Ball Dimension 7.5x9.5X1 Inch
Application Robots Name Radial Ball Bearings
Leave a Message
Product Description


thin section cross roller bearing manufacturers
thin section cross roller bearing price
thin section custom made bearings manufacturers
thin section deep groove ball bearing
thin section deep groove ball bearing factory
thin section deep groove ball bearing manufacturers
thin section machine
thin section precision bearing
thin section precision bearing factory
thin section precision bearing in stock
thin section precision bearing manufacturers
thin type slewing bearing made in china
thin type slewing bearing manufacturers china
thin wall ball bearing supplier
thin wall bearing
thin wall bearing factory
thin wall bearing manufacturers
thin wall bearing supplier
thin wall bearings
thin wall crossed roller bearing
thin wall crossed roller bearing factory
thin wall crossed roller bearing in stock
thin wall crossed roller bearing made in china
thin walled bearings suppliers
thin-section ball bearing factory
thin-section ball bearing in stock
thin-section ball bearing made in china
thin-section bearings agent
thin-walled bearing factory

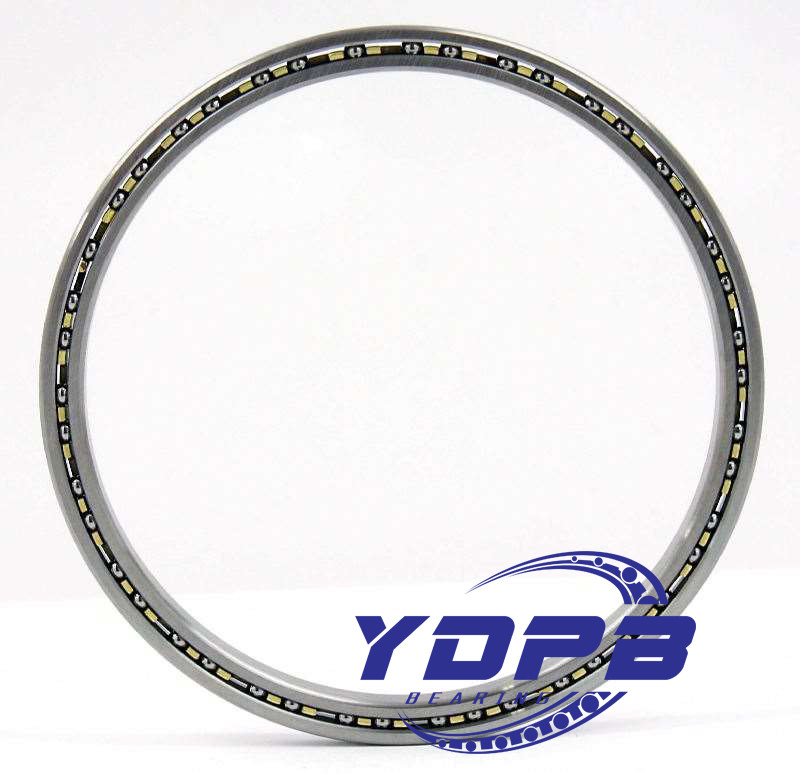

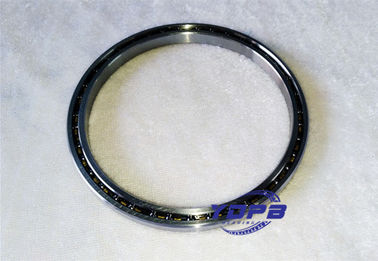

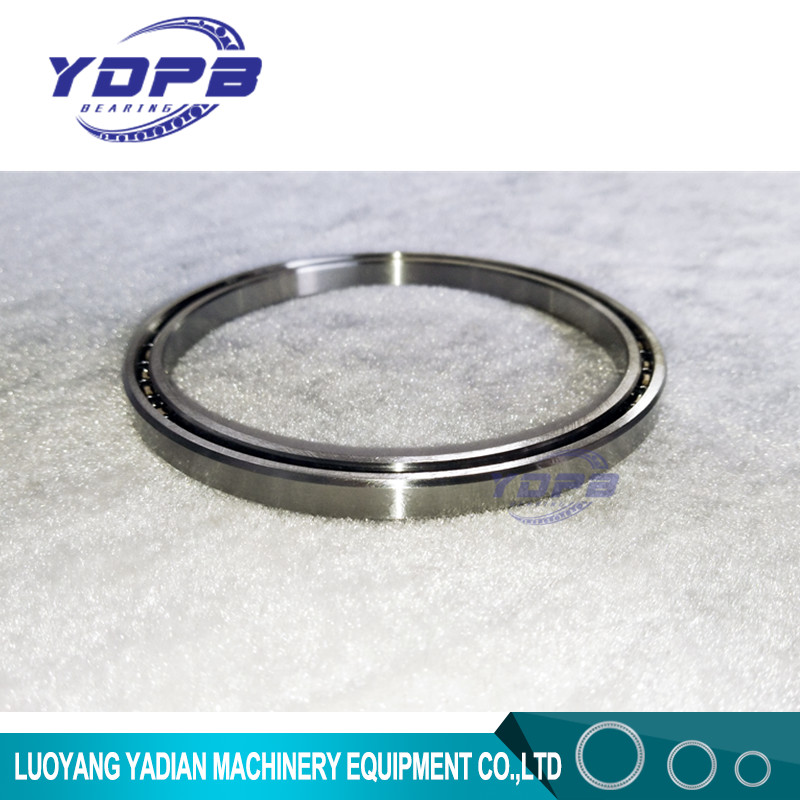

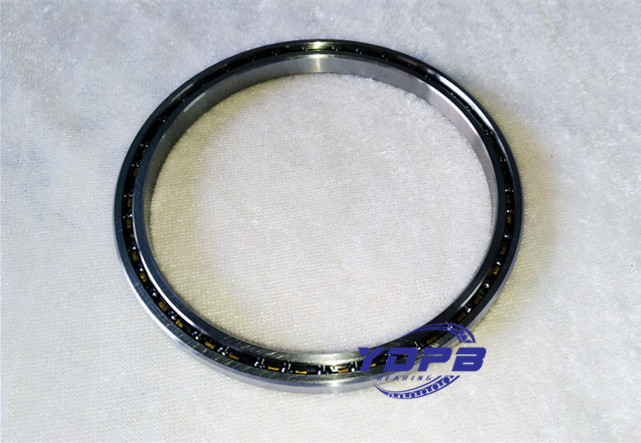

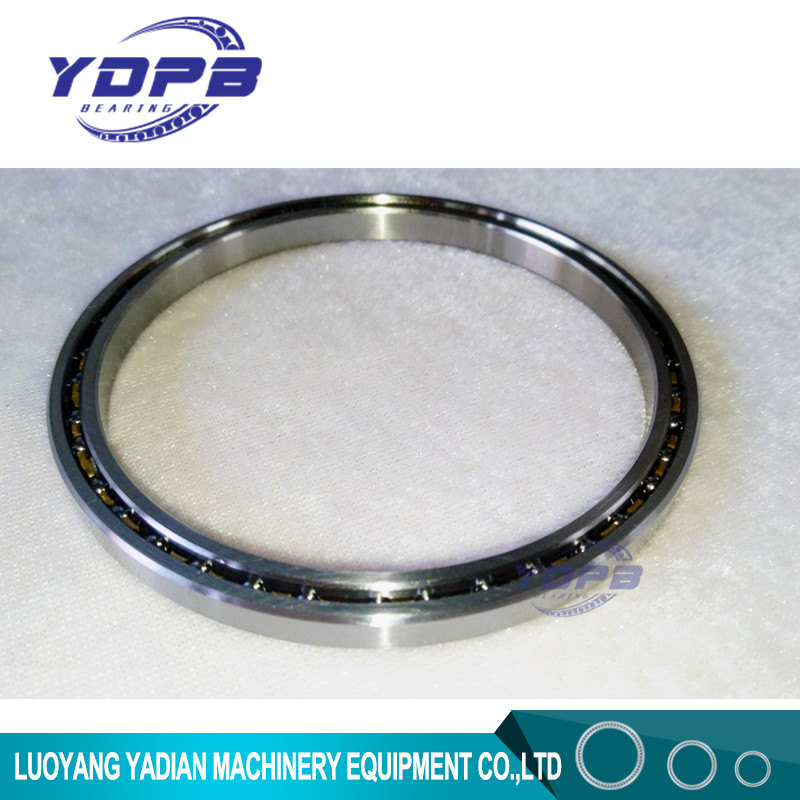

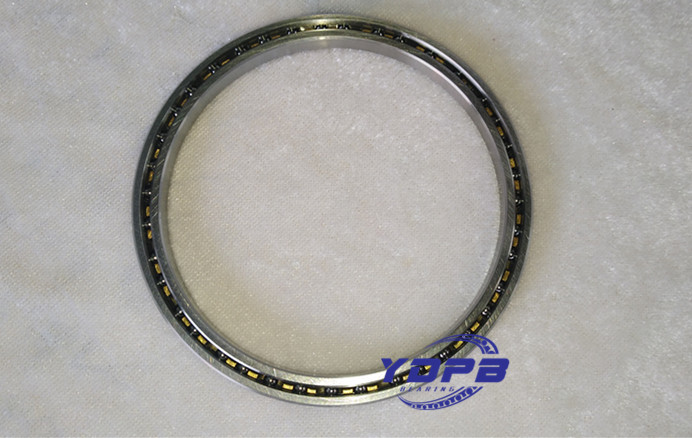

Model number- KG075CP0/KRG075/CSCG075
Thin section ball bearing
Inner ring(in)- 7.5
Outer ring(in)-9.5
Width(in)- 1
Weight(lb)- 2.83
Materials- Chrome steel/GCR15/Stainless steel
Precision grade- P5/P4/P2
Lubrication type- Oil
Material(Ball)- Steel ball/Ceramic ball
Number of Row- Single rows
Section Type- Thin section
Series Model No. KG040CP0.KG042CP0.KG045CP0.KG047CP0.KG050CP0.KG055CP0.KG060CP0.KG065CP0.KG070CP0.KG075CP0.KG080CP0.KG090CP0.KG100CP0.KG110CP0.KG120CP0.KG140CP0.KG160CP0 .KG180CP0.KG200CP0.KG220CP0.KG250CP0.KG300CP0.KG350CP0.KG400CP0
The thin-section radial contact ball bearing primarily designed for deep groove ball bearing to sustain heavy pressure. The basic design intention is not only to support radical load , but also can sustain middle axial load, rotary load and moment load.


Model Dimension Basic load rating Weight
d D Width L1 L2 Cor Cr
inch Pounds
KG040CP0 4 6 1 4.742 5.258 36490 20000 1.65
KG042CP0 4.25 6.25 1 4.992 5.508 36490 20000 1.75
KG045CP0 4.5 6.5 1 5.242 5.758 38940 20900 1.81
KG047CP0 4.75 6.75 1 5.492 6.008 41340 21740 1.91
KG050CP0 5 7 1 5.742 6.258 43780 22580 2.02
KG055CP0 5.5 7.5 1 6.242 6.758 46230 23430 2.17
KG060CP0 6 8 1 6.724 7.258 51070 25030 2.31
KG065CP0 6.5 8.5 1 7.242 7.758 53520 25830 2.47
KG070CP0 7 9 1 7.742 8.258 58360 27380 2.67
KG075CP0 7.5 9.5 1 8.242 8.758 60810 28140 2.83
KG080CP0 8 10 1 8.742 9.258 65650 29600 3
KG090CP0 9 11 1 9.742 10.258 72990 31780 3.3
KG100CP0 10 12 1 10.742 11.258 80280 33870 3.65
KG110CP0 11 13 1 11.742 12.258 87570 35870 3.96
KG120CP0 12 14 1 12.472 13.258 94860 37830 4.32
KG140CP0 14 16 1 14.742 15.258 109440 41600 4.96
KG160CP0 16 18 1 16.742 17.258 124060 45250 5.65
KG180CP0 18 20 1 18.742 19.258 138640 48720 6.28
KG200CP0 20 22 1 20.742 21.258 153220 52100 7.53


Other Thin section Radial Ball Bearings

KA series

KAA10CL0 KAA15CL0 KAA17CL0 KA020CP0 KA025CP0 KA030CP0 KA035CP0 KA040CP0 KA042CP0 KA045CP0 KA047CP0 KA050CP0 KA055CP0 KA060CP0 KA065CP0 KA070CP0 KA075CP0 KA080CP0 KA090CP0 KA100CP0 KA110CP0 KA120CP0


KB Series

KB020CP0 KB025CP0 KB030CP0 KB035CP0 KB040CP0 KB042CP0 KB045CP0 KB047CP0 KB050CP0 KB055CP0 KB060CP0 KB065CP0 KB070CP0 KB075CP0 KB080CP0 KB090CP0 KB100CP0 KB110CP0 KB120CP0 KB140CP0 KB160CP0 KB180CP0 KB200CP0


KC series

KC040CP0 KC042CP0 KC045CP0 KC047CP0 KC050CP0 KC055CP0 KC060CP0 KC065CP0 KC070CP0 KC075CP0 KC080CP0 KC090CP0 KC100CP0 KC110CP0 KC120CP0 KC140CP0 KC160CP0 KC180CP0 KC200CP0 KC250CP0 KC300CP0


KD series

KD040CP0 KD042CP0 KD045CP0 KD047CP0 KD050CP0 KD055CP0 KD060CP0 KD065CP0 KD070CP0 KD075CP0 KD080CP0 KD090CP0 KD100CP0 KD110CP0 KD120CP0 KD140CP0 KD160CP0 KD180CP0 KD200CP0 KD210CP0 KD250CP0 KD300CP0


KF series

KF040CP0 KF042CP0 KF045CP0 KF047CP0 KF050CP0 KF055CP0 KF060CP0 KF065CP0 KF070CP0 KF075CP0 KF080CP0 KF090CP0 KF100CP0 KF110CP0 KF120CP0 KF140CP0 KF160CP0 KF180CP0 KF200CP0 KF250CP0 KF300CP0 KF350CP0 KF400CP0


KG series

KG040CP0 KG042CP0 KG045CP0 KG047CP0 KG050CP0 KG055CP0 KG060CP0 KG065CP0 KG070CP0 KG075CP0 KG080CP0 KG090CP0 KG100CP0 KG110CP0 KG120CP0 KG140CP0 KG160CP0 KG180CP0 KG200CP0 KG220CP0 KG250CP0 KG300CP0 KG350CP0 KG400CP0

Transportation available
KG075CP0/KRG075/CSCG075  thin section cross roller bearing factory 0
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
