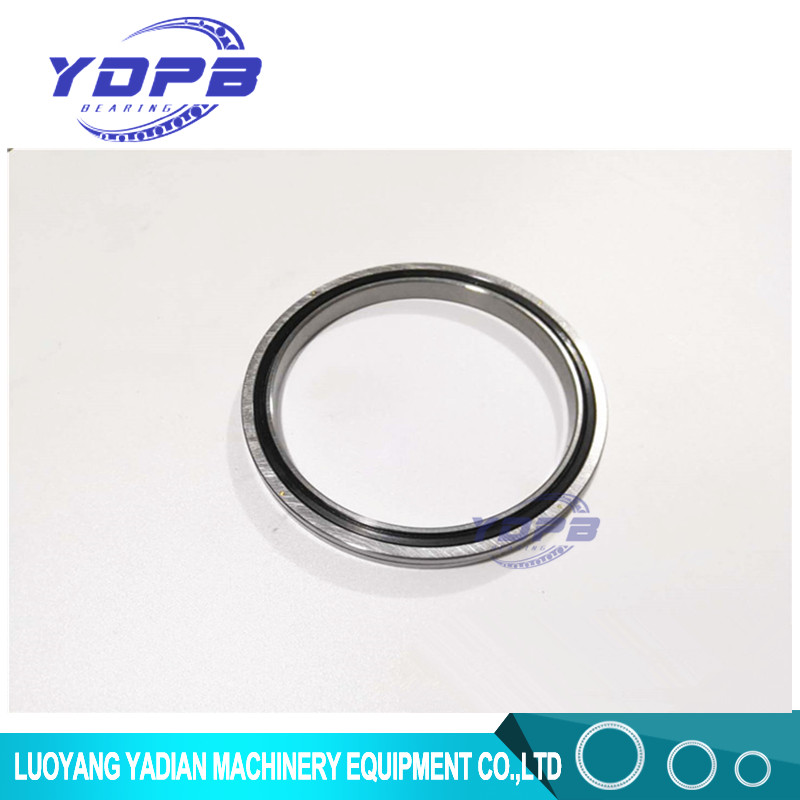

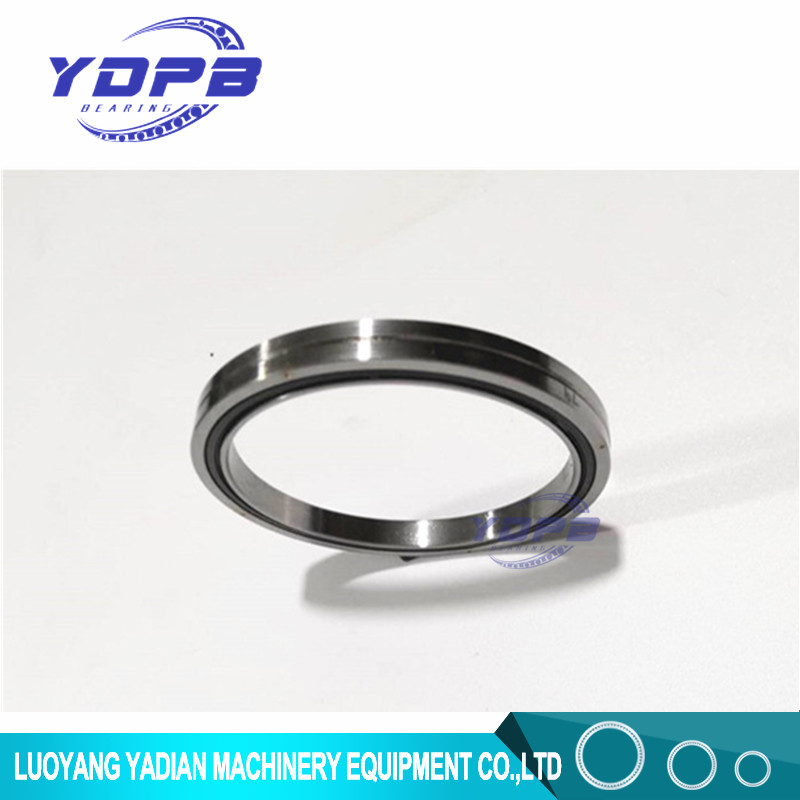

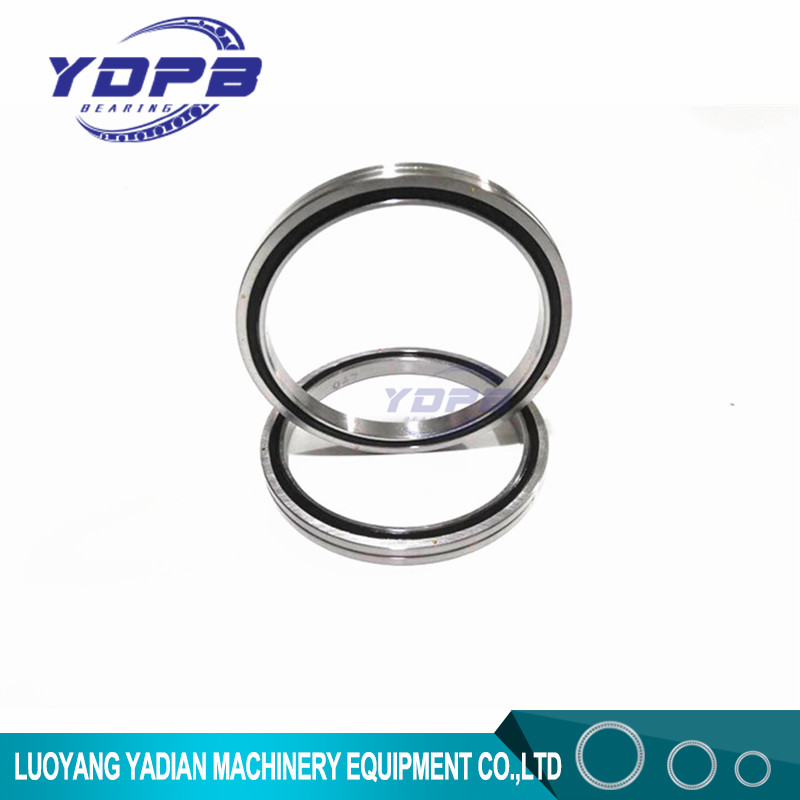

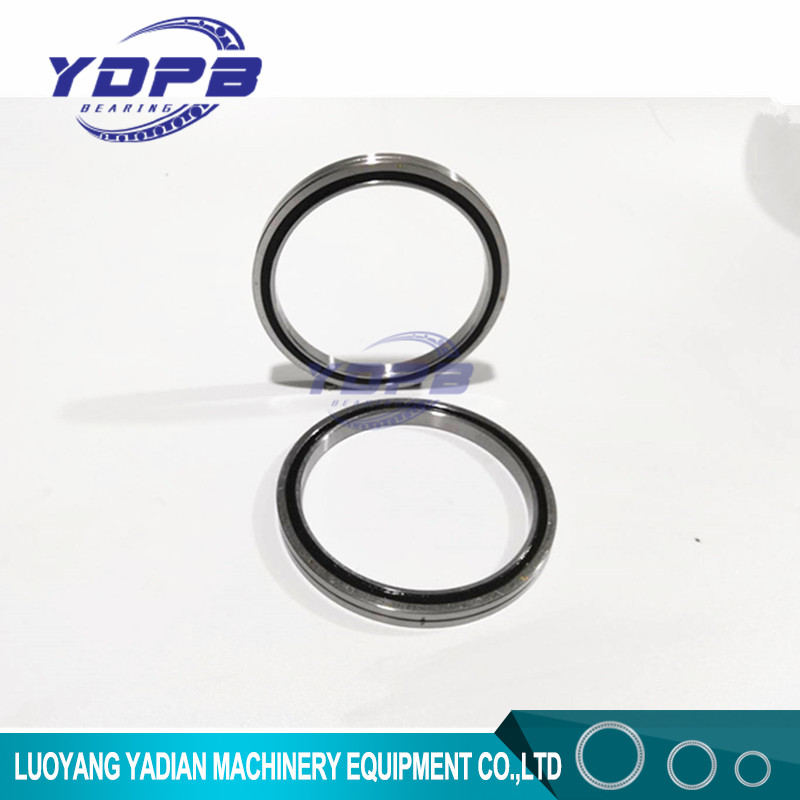

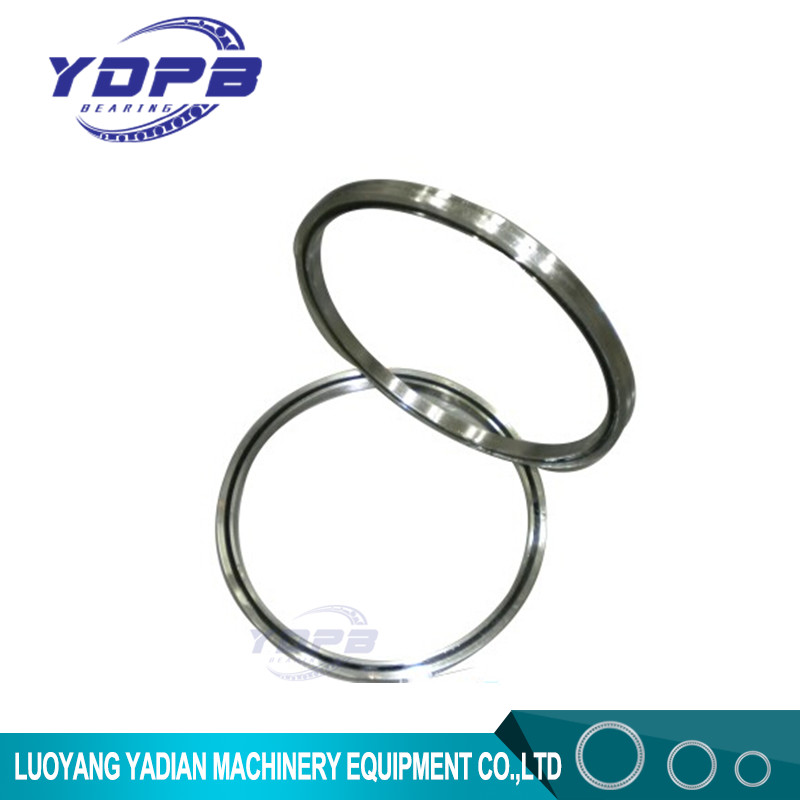

RA12008UUCC0P4 ra-c series crossed roller bearing in stock 120x136x8mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number RA12008UUCC0P4
Minimum Order Quantity 1PCS
Price 45$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Model RA12008UUCC0P4 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 120x136x8mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

RA12008 Cross Roller Bearing / High Precision thin section Cross Roller Bearing

Bearing Model No.: RA12008

Type: Cross Roller Bearing

Size: 120x136x8mm

(Inner Diameter)d: 120mm

(Outer Diameter) D: 136mm

(Thickness / Width) B: 8mm

Series Models

RA5008UUCCO, RA6008UUCCO, RA7008UUCCO, RA8008UUCCO ,RA9008UUCCO, RA10008UUCCO, RA11008UUCCO, RA12008UUCCO, RA13008UUCCO, RA14008UUCCO, RA15008UUCCO, RA16013UUCCO, RA17013UUCCO, RA18013UUCCO, RA19013UUCCO, RA20013UUCCO

RA-C series

RA5008CUUCCO, RA6008CUUCCO, RA7008CUUCCO, RA8008CUUCCO, RA9008CUUCCO, RA10008CUUCCO

Main Parameters

RA12008UUCC0P4 ra-c series crossed roller bearing in stock 120x136x8mm 0

shaft diameter



Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r ds Dh C Co Kg
a b
d D DP B/B1 KN KN
50 RA 5008 50 66 57 8 2 0.8 0.8 53.5 60.5 5.1 7.19 0.08
60 RA 6008 60 76 67 8 2 0.8 0.8 63.5 70.5 5.68 8.68 0.09
70 RA 7008 70 86 77 8 2 0.8 0.8 73.5 80.5 5.98 9.8 0.1
80 RA 8008 80 96 87 8 2 0.8 0.8 83.5 90.5 6.37 11.3 0.11
90 RA 9008 90 106 97 8 2 0.8 0.8 93.5 100.5 6.76 12.4 0.12
100 RA 10008 100 116 107 8 2 0.8 0.8 103.5 110.5 7.15 13.9 0.15
110 RA 11008 110 126 117 8 2 0.8 0.8 113.5 120.5 7.45 15 0.16
120 RA 12008 120 136 127 8 2 0.8 0.8 123.5 130.5 7.84 16.5 0.17
130 RA 13008 130 146 137 8 2 0.8 0.8 133.5 140.5 7.94 17.6 0.18
140 RA 14008 140 156 147 8 2 0.8 0.8 143.5 150.5 8.33 19.1 0.19
150 RA 15008 150 166 157 8 2 0.8 0.8 153.5 160.5 8.82 20.6 0.2
160 RA 16013 160 186 172 13 2.5 1.6 1.2 165 179 23.3 44.9 0.59
170 RA 17013 170 196 182 13 2.5 1.6 1.2 175 189 23.5 46.5 0.64
180 RA 18013 180 206 192 13 2.5 1.6 1.2 185 199 24.5 49.8 0.68
190 RA 19013 190 216 202 13 2.5 1.6 1.2 195 209 24.9 51.5 0.69
200 RA 20013 200 226 212 13 2.5 1.6 1.2 205 219 25.8 54.7 0.71

Drawings and other parameters ,pls contact us free, thanks



Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
Online shopping Address: www.ydpbbearings.com
