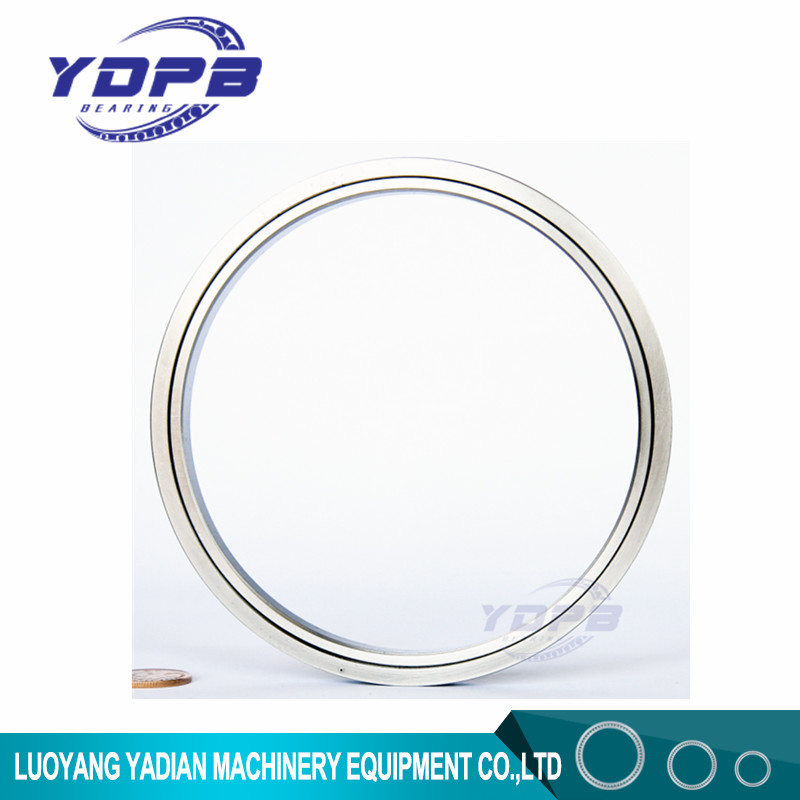

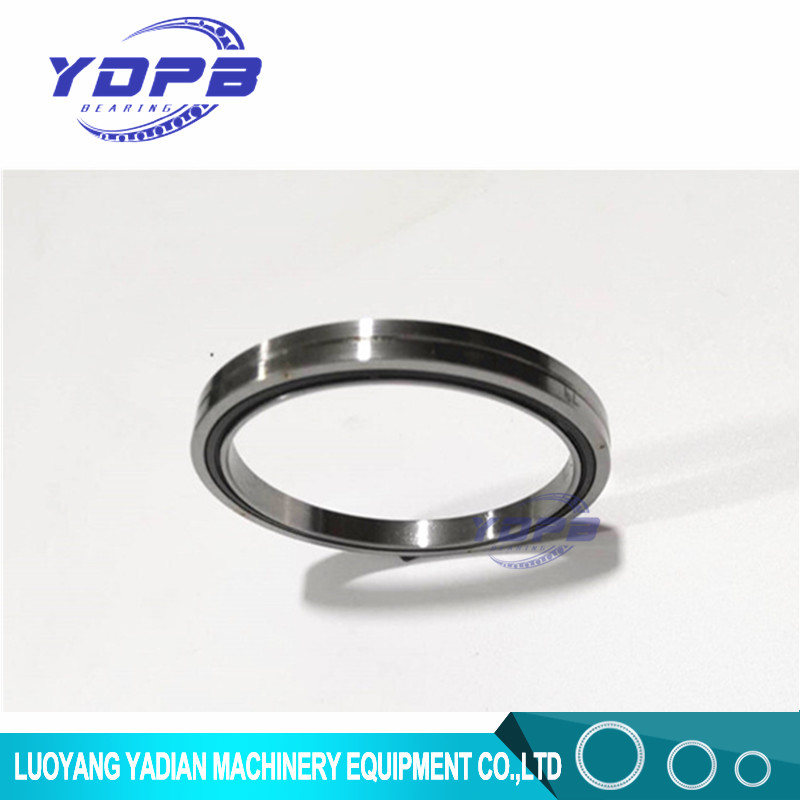

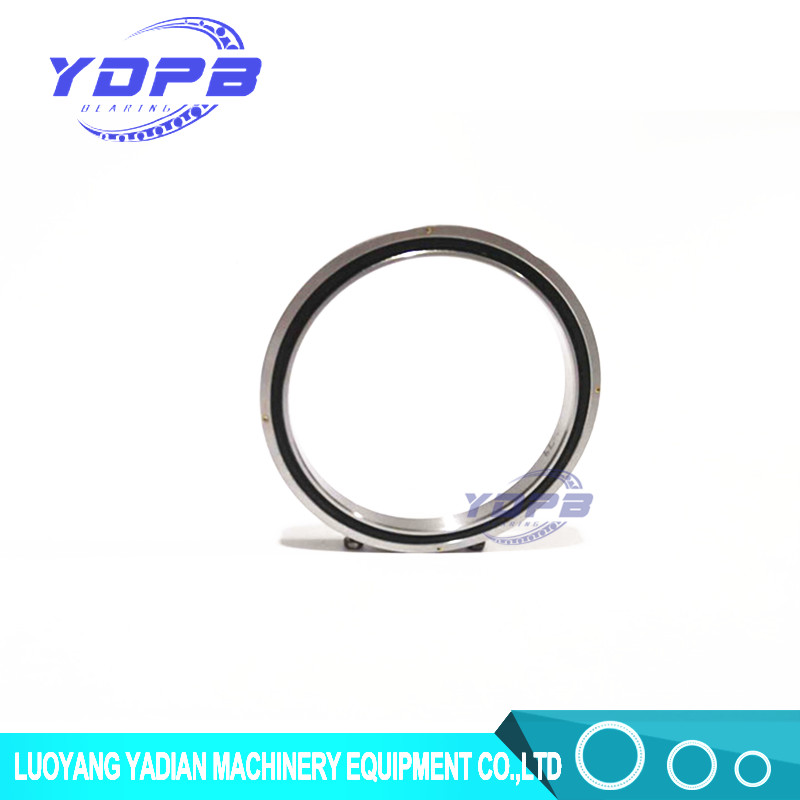

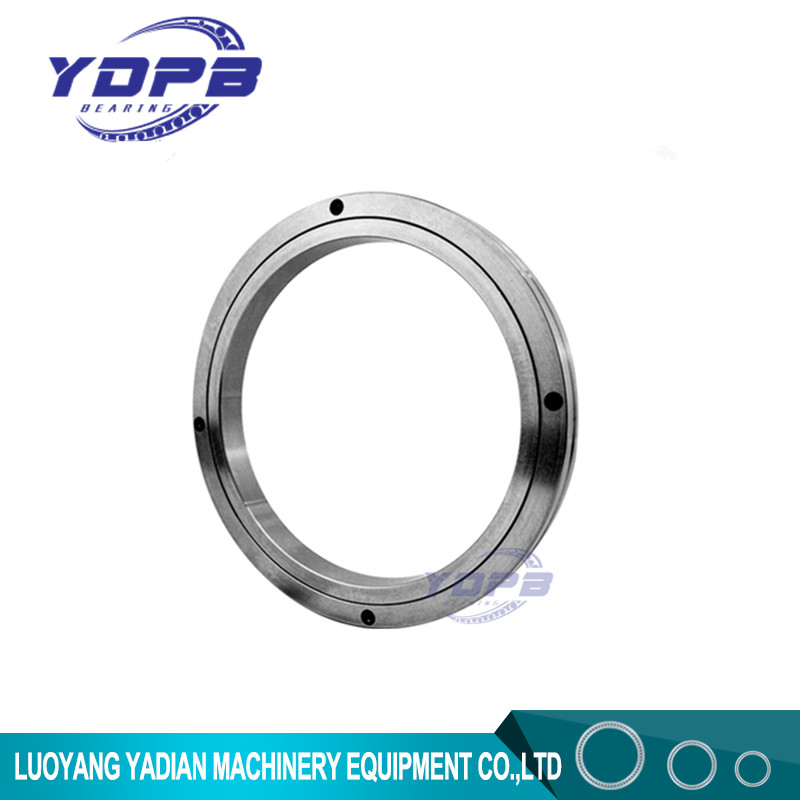

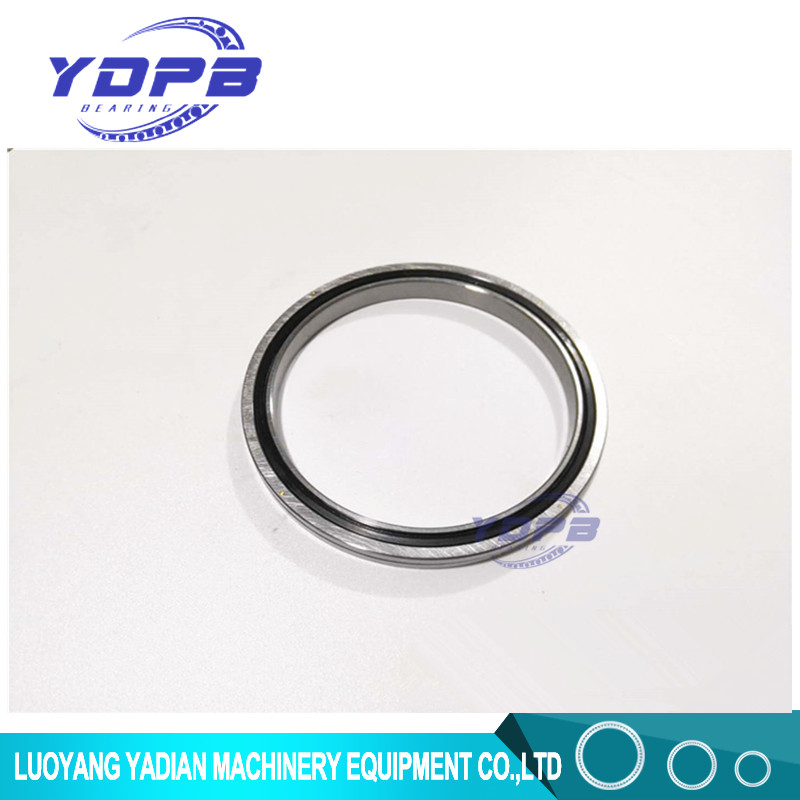

RA15008UUCC0P4 ra cross cylindrical roller bearing 150x166x8mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | RA15008UUCC0P4 |
Minimum Order Quantity | 1PCS |
Price | 45$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RA15008UUCC0P4 | Material | GCr15 |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 150x166x8mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
RA15008UUCC0P4 Cross Roller Bearing / High Precision thin section Cross Roller Bearing
Bearing Model No.: RA15008
Type: Cross Roller Bearing
Size: 150x166x8mm
(Inner Diameter)d: 150mm
(Outer Diameter) D: 166mm
(Thickness / Width) B: 8mm
Series Models
RA5008UUCCO, RA6008UUCCO, RA7008UUCCO, RA8008UUCCO ,RA9008UUCCO, RA10008UUCCO, RA11008UUCCO, RA12008UUCCO, RA13008UUCCO, RA14008UUCCO, RA15008UUCCO, RA16013UUCCO, RA17013UUCCO, RA18013UUCCO, RA19013UUCCO, RA20013UUCCO
RA-C series
RA5008CUUCCO, RA6008CUUCCO, RA7008CUUCCO, RA8008CUUCCO, RA9008CUUCCO, RA10008CUUCCO
Main ParameterS
Structure
shaft diameter
|
Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | |||||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole | r | ds | Dh | C | Co | Kg | ||||
a | b | |||||||||||||
d | D | DP | B/B1 | KN | KN | |||||||||
50 | RA 5008 | 50 | 66 | 57 | 8 | 2 | 0.8 | 0.8 | 53.5 | 60.5 | 5.1 | 7.19 | 0.08 | |
60 | RA 6008 | 60 | 76 | 67 | 8 | 2 | 0.8 | 0.8 | 63.5 | 70.5 | 5.68 | 8.68 | 0.09 | |
70 | RA 7008 | 70 | 86 | 77 | 8 | 2 | 0.8 | 0.8 | 73.5 | 80.5 | 5.98 | 9.8 | 0.1 | |
80 | RA 8008 | 80 | 96 | 87 | 8 | 2 | 0.8 | 0.8 | 83.5 | 90.5 | 6.37 | 11.3 | 0.11 | |
90 | RA 9008 | 90 | 106 | 97 | 8 | 2 | 0.8 | 0.8 | 93.5 | 100.5 | 6.76 | 12.4 | 0.12 | |
100 | RA 10008 | 100 | 116 | 107 | 8 | 2 | 0.8 | 0.8 | 103.5 | 110.5 | 7.15 | 13.9 | 0.15 | |
110 | RA 11008 | 110 | 126 | 117 | 8 | 2 | 0.8 | 0.8 | 113.5 | 120.5 | 7.45 | 15 | 0.16 | |
120 | RA 12008 | 120 | 136 | 127 | 8 | 2 | 0.8 | 0.8 | 123.5 | 130.5 | 7.84 | 16.5 | 0.17 | |
130 | RA 13008 | 130 | 146 | 137 | 8 | 2 | 0.8 | 0.8 | 133.5 | 140.5 | 7.94 | 17.6 | 0.18 | |
140 | RA 14008 | 140 | 156 | 147 | 8 | 2 | 0.8 | 0.8 | 143.5 | 150.5 | 8.33 | 19.1 | 0.19 | |
150 | RA 15008 | 150 | 166 | 157 | 8 | 2 | 0.8 | 0.8 | 153.5 | 160.5 | 8.82 | 20.6 | 0.2 | |
160 | RA 16013 | 160 | 186 | 172 | 13 | 2.5 | 1.6 | 1.2 | 165 | 179 | 23.3 | 44.9 | 0.59 | |
170 | RA 17013 | 170 | 196 | 182 | 13 | 2.5 | 1.6 | 1.2 | 175 | 189 | 23.5 | 46.5 | 0.64 | |
180 | RA 18013 | 180 | 206 | 192 | 13 | 2.5 | 1.6 | 1.2 | 185 | 199 | 24.5 | 49.8 | 0.68 | |
190 | RA 19013 | 190 | 216 | 202 | 13 | 2.5 | 1.6 | 1.2 | 195 | 209 | 24.9 | 51.5 | 0.69 | |
200 | RA 20013 | 200 | 226 | 212 | 13 | 2.5 | 1.6 | 1.2 | 205 | 219 | 25.8 | 54.7 | 0.71 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
