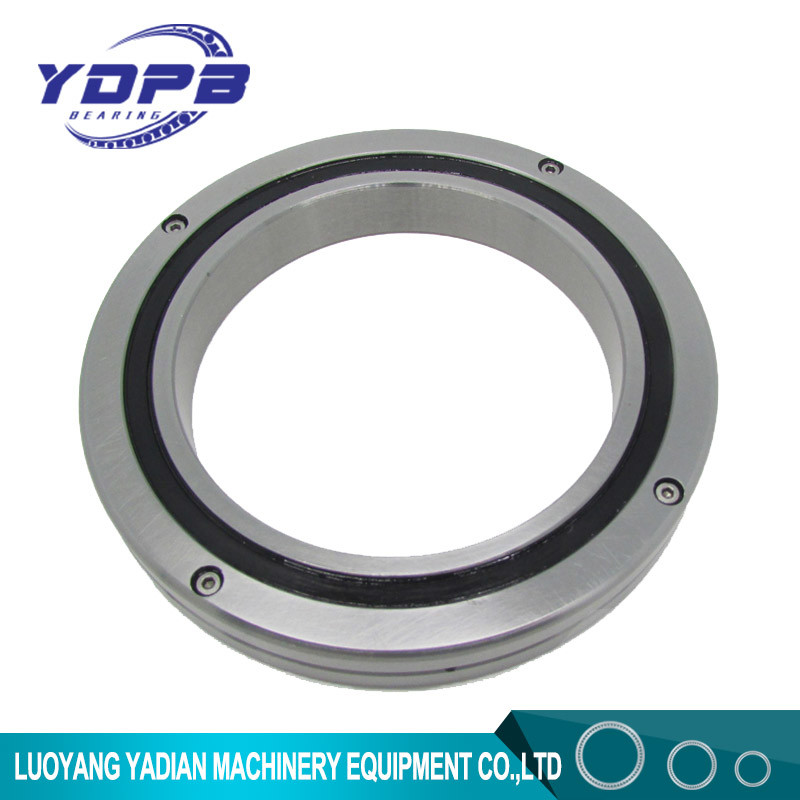

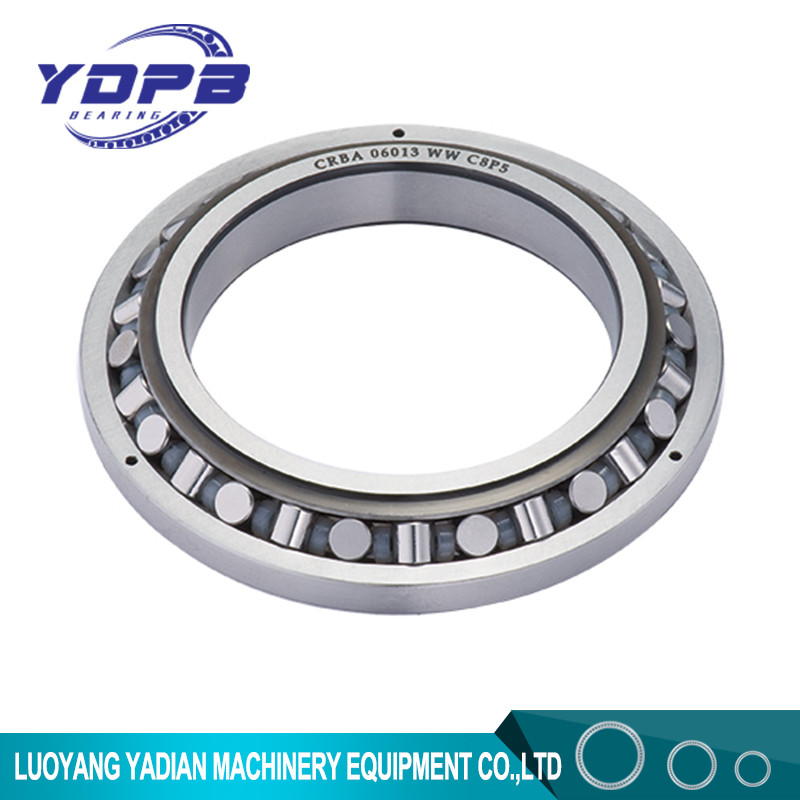

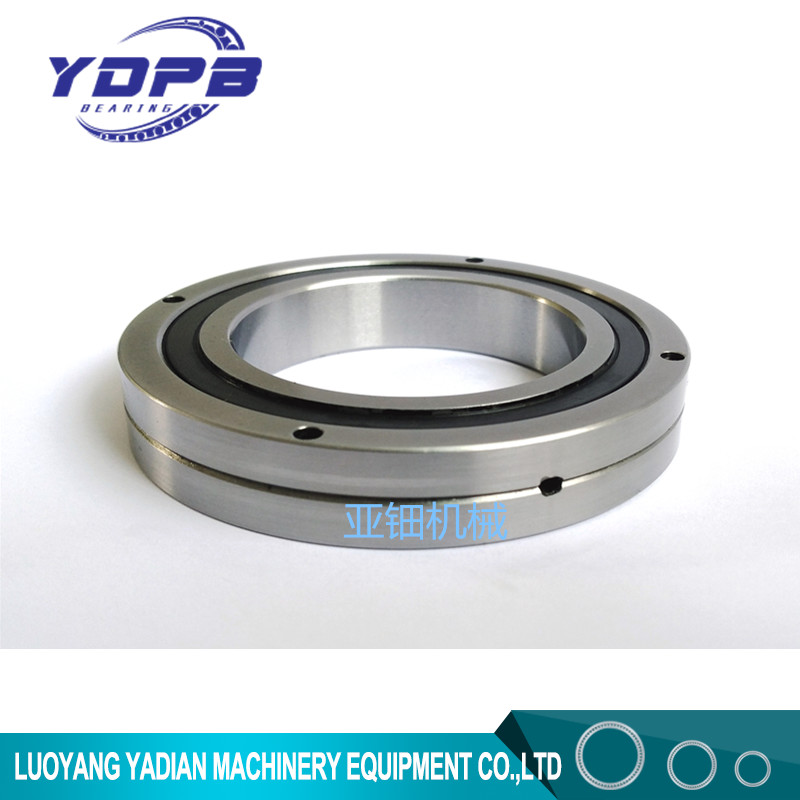

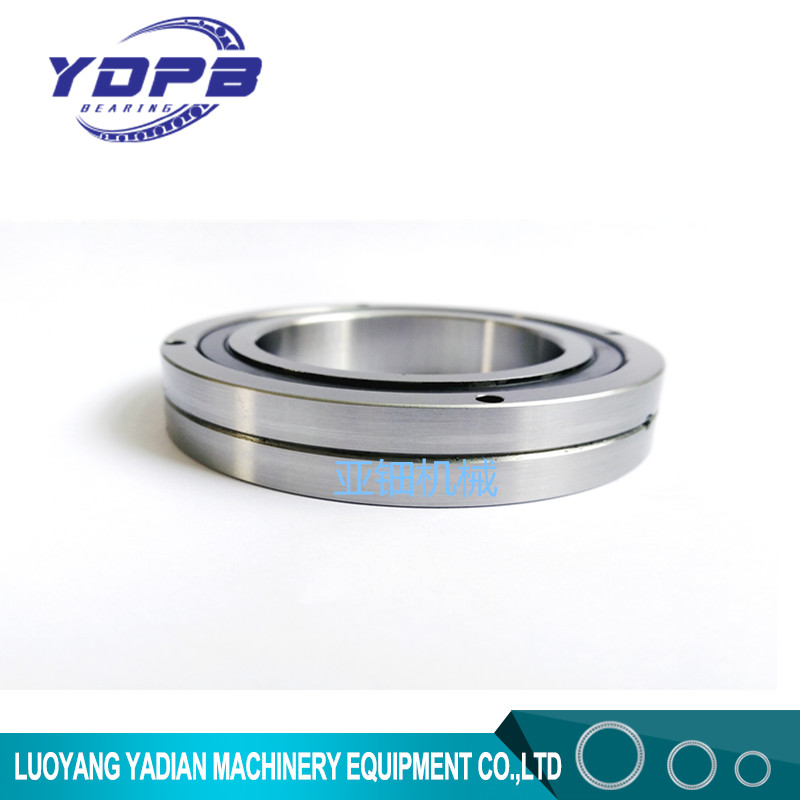

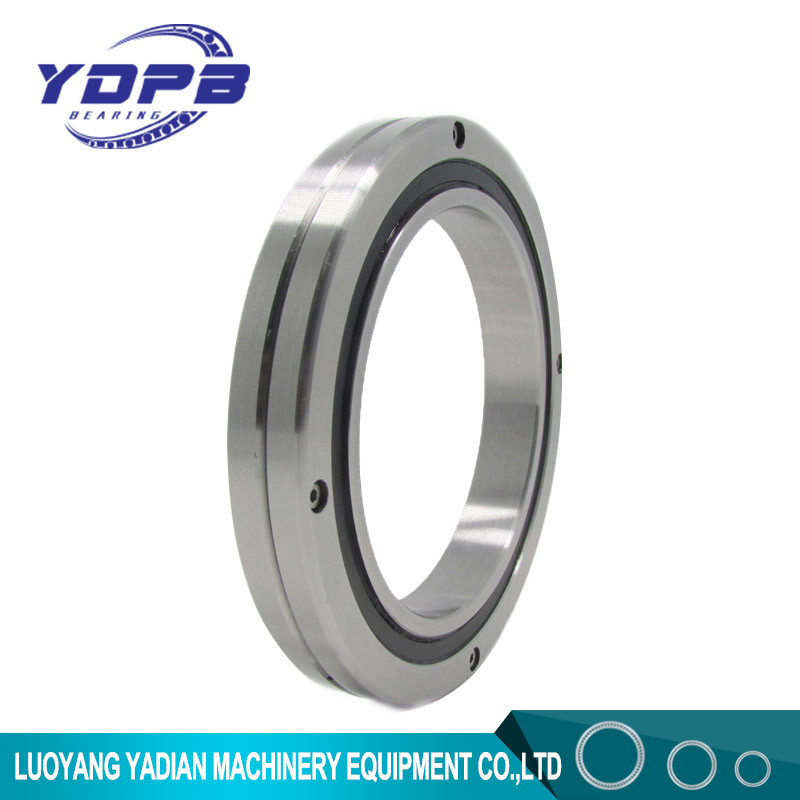

CRBC8016UUCCO crb thin-section crossed roller bearings factory80X120X16mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | CRBC8016UUCCO |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | CRBC8016UUCCO | Material | GCr15SiMn |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 80X120X16mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
Crossed Roller Bearings Parameters
Model number- CRBC8016UUCCO
Inner ring(mm)- 80
Outer ring(mm)- 120
Width(mm)- 16
Weight(Kg)- 0.74
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Outer ring split
Features
Cross- Roller Ring Series, compact,Highly Rigid Swivel Bearings Achieving a Superb Rotation Accurancy.
More parameters below.
Structure
ID from 50mm---200mm
shaft diameter |
Identification number |
Main dimensious(mm) |
Mounting dimensions (mm) | CRBC | CRB |
weight |
|||||||
With cage |
Full complement |
Inner diameter | outer diameter | width | r min | da | Da |
Basic dynamic load rating |
Basic static load rating |
Basic static load rating |
Basic static load rating |
Kg | |
d | D | B | C KN | Co KN | C KN | Co KN | |||||||
50 | CRBC 5013 | CRB 5013 | 50 | 80 | 13 | 0.6 | 55 | 71 | 1.07 | 1.26 | 1.42 | 1.84 | 0.29 |
60 | CRBC 6013 | CRB 6013 | 60 | 90 | 13 | 0.6 | 64 | 81 | 1.16 | 1.46 | 1.54 | 2.15 | 0.33 |
70 | CRBC 7013 | CRB 7013 | 70 | 100 | 13 | 0.6 | 75 | 91 | 1.23 | 1.67 | 1.7 | 2.55 | 0.38 |
80 | CRBC 8013 | CRB 8013 | 80 | 120 | 16 | 0.6 | 86 | 107 | 1.82 | 2.55 | 2.43 | 3.75 | 0.74 |
90 | CRBC 9013 | CRB 9013 | 90 | 130 | 16 | 1 | 98 | 118 | 1.94 | 2.86 | 2.59 | 4.21 | 0.81 |
100 | CRBC 10020 | CRB 10020 | 100 | 150 | 20 | 1 | 108 | 134 | 3.15 | 4.51 | 3.94 | 6.11 | 1.45 |
110 | CRBC 11020 | CRB 11020 | 110 | 160 | 20 | 1 | 118 | 144 | 3.35 | 5.07 | 4.12 | 6.67 | 1.56 |
120 | CRBC 12025 | CRB 12025 | 120 | 180 | 25 | 1.5 | 132 | 164 | 4.77 | 7.05 | 5.99 | 9.54 | 2.62 |
130 | CRBC 13025 | CRB 13025 | 130 | 190 | 25 | 1.5 | 140 | 172 | 4.92 | 7.48 | 6.1 | 9.98 | 2.82 |
140 | CRBC 14025 | CRB 14025 | 140 | 200 | 25 | 1.5 | 151 | 183 | 5.07 | 7.92 | 6.41 | 10.8 | 2.96 |
150 | CRBC 15025 | CRB 15025 | 150 | 210 | 25 | 1.5 | 160 | 192 | 5.38 | 8.77 | 6.5 | 11.3 | 3.16 |
CRBC 15030 | CRB 15030 | 150 | 230 | 30 | 1.5 | 166 | 202 | 6.92 | 10.8 | 8.59 | 14.4 | 5.3 | |
200 | CRBC 20025 | CRB 20025 | 200 | 260 | 25 | 2 | 208 | 239 | 6.02 | 11 | 7.53 | 14.8 | 4 |
CRBC 20030 | CRB 20030 | 200 | 280 | 30 | 2 | 218 | 262 | 10.8 | 17.8 | 13.3 | 23.4 | 6.7 | |
CRBC 20035 | CRB 20035 | 200 | 295 | 35 | 2 | 221 | 274 | 13.7 | 21.5 | 16.8 | 28.2 | 9.5 |
ID from 250mm--------800mm
shaft diameter |
Identification number |
Main dimensious(mm) |
Mounting dimensions (mm) | CRBC | CRB |
weight |
|||||||
With cage |
Full complement |
Inner diameter | outer diameter | width | r min | da | Da |
Basic dynamic load rating |
Basic static load rating |
Basic static load rating |
Basic static load rating |
Kg | |
d | D | B | C KN | Co KN | C KN | Co KN | |||||||
250 | CRBC 25025 | CRB 25025 | 250 | 310 | 25 | 2.5 | 259 | 290 | 6.72 | 13.6 | 8.39 | 18.3 | 4.97 |
CRBC 25030 | CRB 25030 | 250 | 330 | 30 | 2.5 | 265 | 310 | 11.6 | 20.8 | 14.6 | 28.3 | 8.1 | |
CRBC 25040 | CRB 25040 | 250 | 355 | 40 | 2.5 | 271 | 330 | 17.9 | 29.9 | 21.5 | 38.2 | 14.8 | |
300 | CRBC 30025 | CRB 30025 | 300 | 360 | 25 | 2.5 | 310 | 340 | 7.38 | 16.2 | 9.19 | 21.7 | 5.88 |
CRBC 30040 | CRB 30040 | 300 | 395 | 35 | 2.5 | 318 | 372 | 16.3 | 29.9 | 20.5 | 40.8 | 13.4 | |
CRBC 40035 | CRB 40035 | 300 | 405 | 40 | 2.5 | 321 | 381 | 19.4 | 35.1 | 23.5 | 45.1 | 17.2 | |
400 | CRBC 40035 | CRB 40035 | 400 | 480 | 35 | 2.5 | 414 | 457 | 13.3 | 30 | 16.5 | 40 | 14.5 |
CRBC 40040 | CRB 40040 | 400 | 510 | 40 | 2.5 | 423 | 483 | 22.2 | 45.5 | 27 | 59 | 23.5 | |
CRBC 50070 | CRB 50070 | 400 | 580 | 70 | 2.5 | 430 | 532 | 47 | 81.1 | 57.6 | 106 | 72.4 | |
500 | CRBC 50040 | CRB 50040 | 500 | 600 | 40 | 2.5 | 517 | 573 | 21.2 | 49.7 | 25.9 | 64.8 | 26 |
CRBC 50050 | CRB 50050 | 500 | 625 | 50 | 2.5 | 531 | 592 | 24.7 | 56.1 | 30.6 | 74.7 | 41.7 | |
CRBC 50070 | CRB 50070 | 500 | 680 | 70 | 2.5 | 530 | 633 | 53.6 | 102 | 65.3 | 133 | 86.1 | |
600 | CRBC 60040 | CRB 60040 | 600 | 700 | 40 | 3 | 621 | 676 | 23.1 | 58.1 | 28.7 | 77.4 | 30.6 |
CRBC 60070 | CRB 60070 | 600 | 780 | 70 | 3 | 630 | 734 | 59.1 | 123 | 70 | 154 | 102 | |
CRBC 60012 | CRB 600120 | 600 | 870 | 120 | 3 | 643 | 817 | 125 | 221 | 149 | 280 | 274 | |
700 | CRBC 70045 | CRB 70045 | 700 | 815 | 45 | 3 | 730 | 785 | 25 | 68 | 31.3 | 91.7 | 46.5 |
CRBC 70070 | CRB 70070 | 700 | 880 | 70 | 3 | 731 | 834 | 63 | 139 | 76.6 | 181 | 115 | |
CRBC 70015 | CRB 700150 | 700 | 1020 | 150 | 3 | 731 | 953 | 166 | 301 | 198 | 382 | 478 | |
800 | CRBC 80070 | CRB 80070 | 800 | 950 | 70 | 4 | 831 | 907 | 41.7 | 109 | 51.3 | 144 | 109 |
CRBC 800100 | CRB 800100 | 800 | 1030 | 100 | 4 | 840 | 972 | 93.6 | 204 | 114 | 264 | 247 |
Drawings and other parameters ,pls contact us free, thanks
