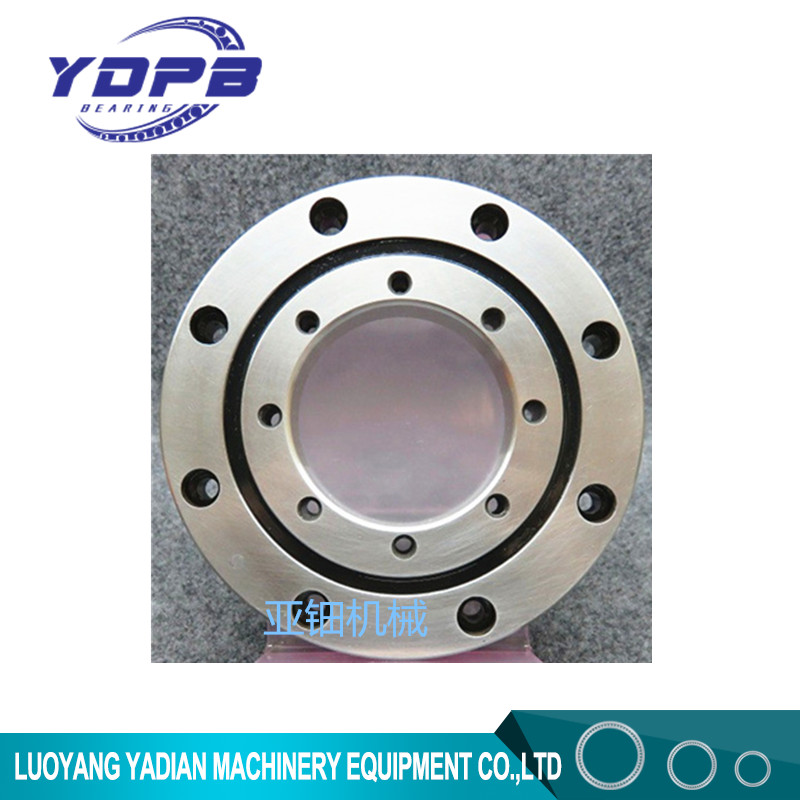

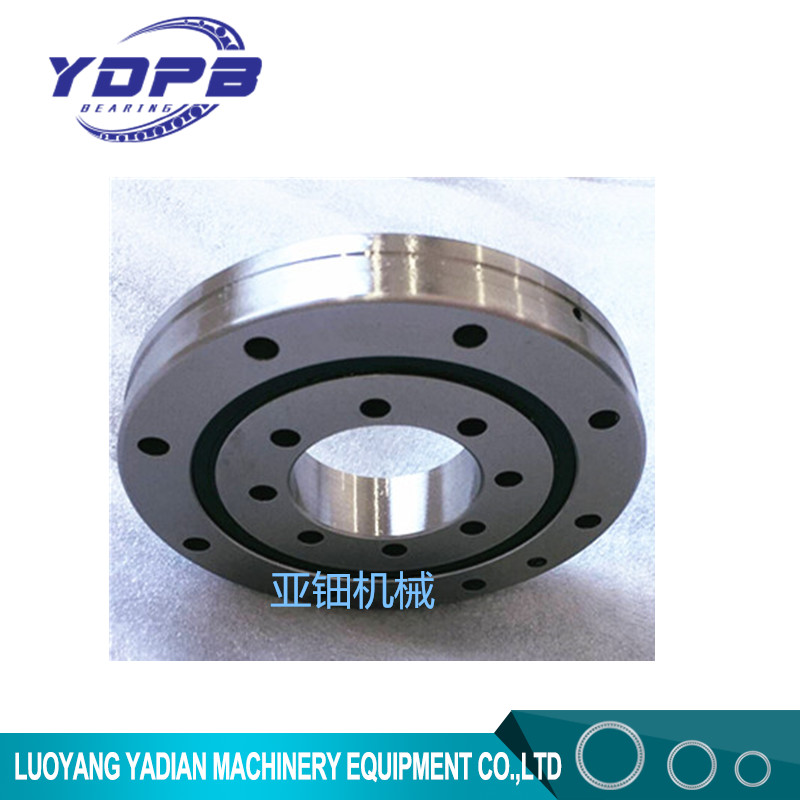

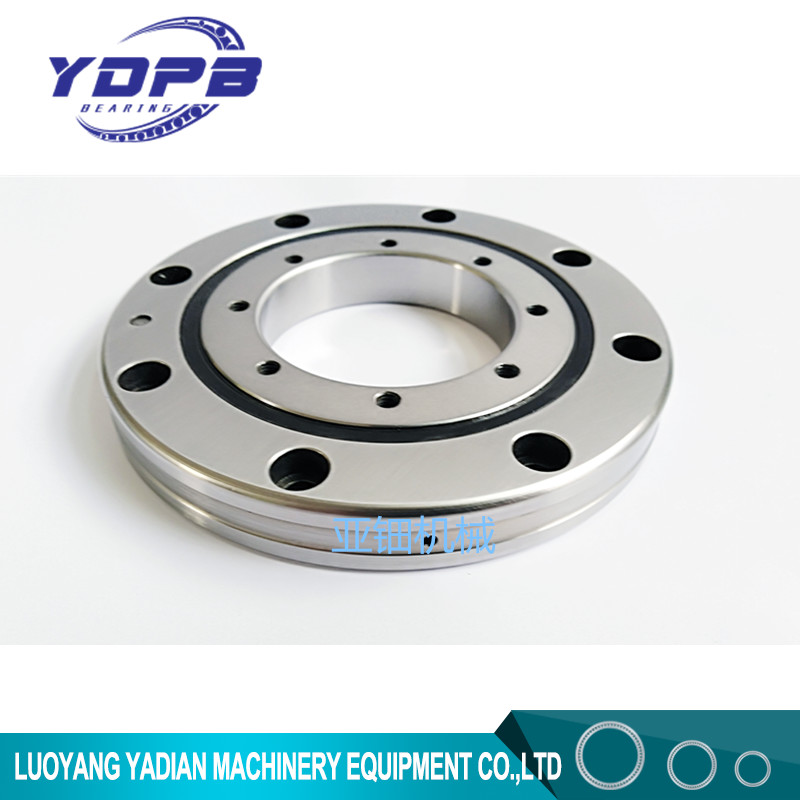

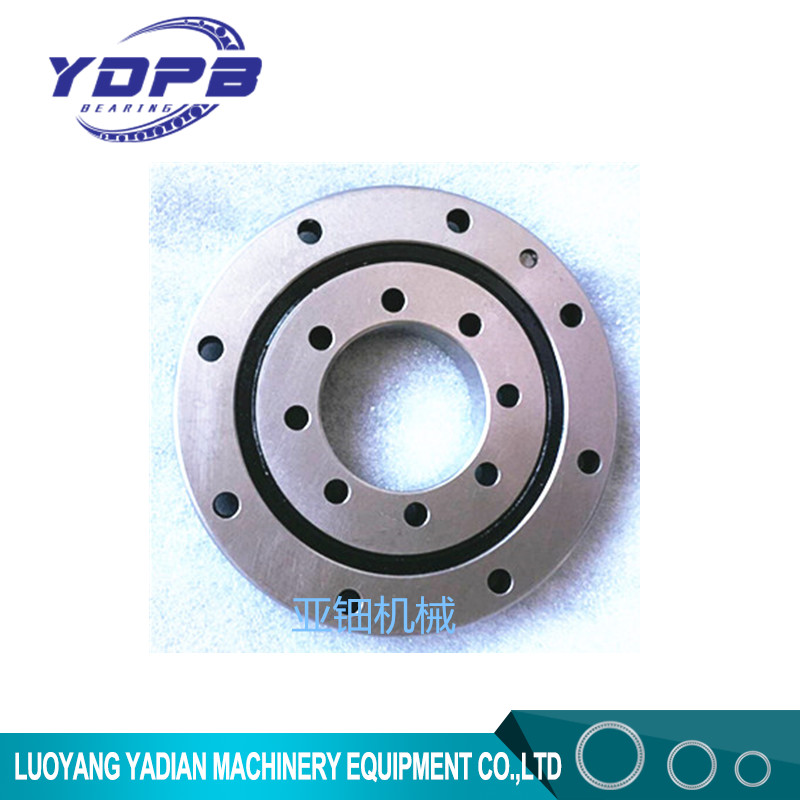

CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm

  • CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm
  • CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm
  • CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm
  • CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm
  • CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm
Place of Origin Luoyang，China
Brand Name YDPB
Certification ISO
Model Number CRBF 108 AT UU P5
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model CRBF 108 AT UU P5 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 10X52X8mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

CRBF bearings is Mounting Holed Type High Rigidity Crossed Roller Bearings with Separator,open type and two sides sealed available

Crossed Roller Bearings Parameters

Model number- CRBF 108 AT UU  P5

Inner ring(mm)- 10

Outer ring(mm)- 52

Width(mm)- 8

Weight(Kg)- 0.12

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner ring/Outer ring

Load direction- Multi-load

Structure- Integrated Inner/Outer Ring

precision level- P6,P5,P4,P2

Seals- can be double side (UU)

Clearance- Normal ,T.C1,C2

Other models:

CRBF 108 AT UU, CRBF 2012 AT UU, CRBF 2512 AT UU, CRBF 3515 AT UU, CRBF 8022 AT UU, CRBF 8022 A UU, CRBF 8022 AD UU

Structure:

CRBF 108 AT UU P5 cross roller bearing manufacturers 10X52X8mm 0

More parameters



Shaft diameter

mm

 Identification Number Boundary Dimension(mm)

Basic Dynamic

load rating C



Basic static

load rating Co

Weight




Open type Two side seal d D B N N Kg
10 CRBF 108 AT CRBF 108 AT UU 10 52 8 2910 2430 0.12
20 CRBF 2012 AT CRBF 2012 AT UU 20 70 12 7600 8370 0.31
25 CRBF 2512 AT CRBF 2512 AT UU 25 80 12 8610 10600 0.40
35 CRBF 3515 AT CRBF 3515 AT UU 35 95 15 17300 20900 0.66
55 CRBF 5515 AT CRBF 5515 AT UU 55 120 15 20100 27700 0.96
80 CRBF 8022 AT CRBF 8022 AT UU



80



165



22



51100



72000

 2.63
CRBF 8022 A CRBF 8022 A UU 2.6
CRBF 8022 AD CRBF 8022 AD UU 206

Features of CRBF series robotics bearings

1.Can bear comprehensive load e.g radial ,axial and overturn load .

2.Thin section bearings save installation space

3.High rotary positioning precision

4.Application area:robot arm,revolute joints,chassis etc parts.



Drawings and other parameters ,pls contact us free, thanks



Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
