RB11020UUCCO rb series crossed cylindrical roller bearing price 110x160x20mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | RB11020UUCCOP5 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RB11020UUCCOP5 | Material | GCr15 |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 110x160x20mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
RB11020UUCCO Crossed Roller Bearings (110x160x20mm) Precision slewing ring bearing machine tool accessories
Model number- RB11020UUCCO
Inner ring(mm)- 110
Outer ring(mm)- 160
Width(mm)- 20
Weight(Kg)- 1.56
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication
Rotating part- Inner Ring Rotation
Load direction- Multi-load
Structure- Separable Outer Ring
RB series
Being the basic model of the Cross-Roller Ring,despite the minium possible dimensions of the inner ring and outer rings,its outer ring is separable while the inner ring is integrated with the main boby. This model is used in locations where the rotation accurancy of the inner ring is required.
Features
Cross- Roller Ring Series, compact,Highly Rigid Swivel Bearings Achieving a Superb Rotation Accurancy.

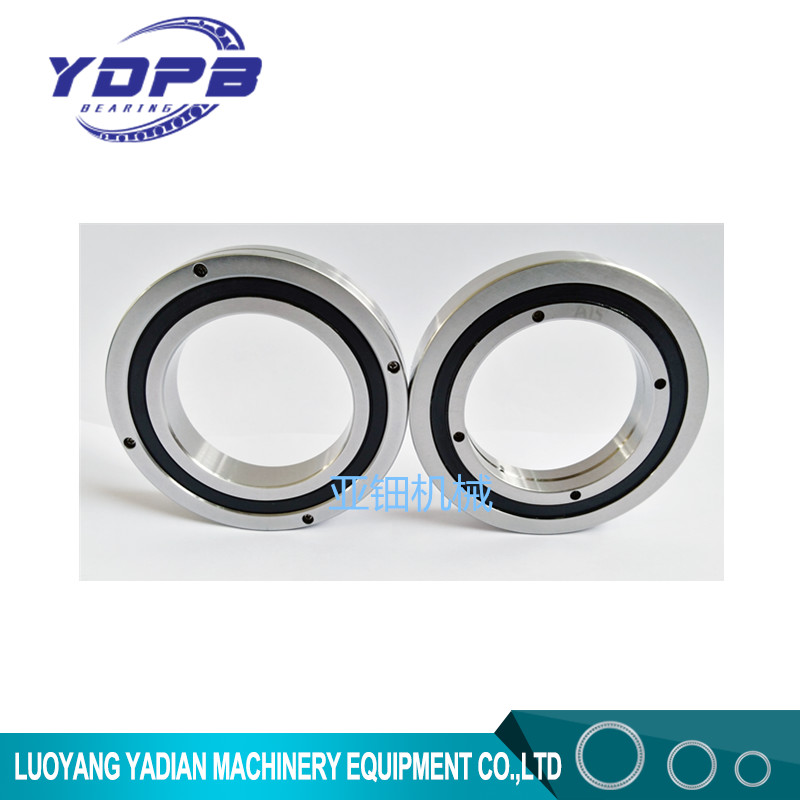

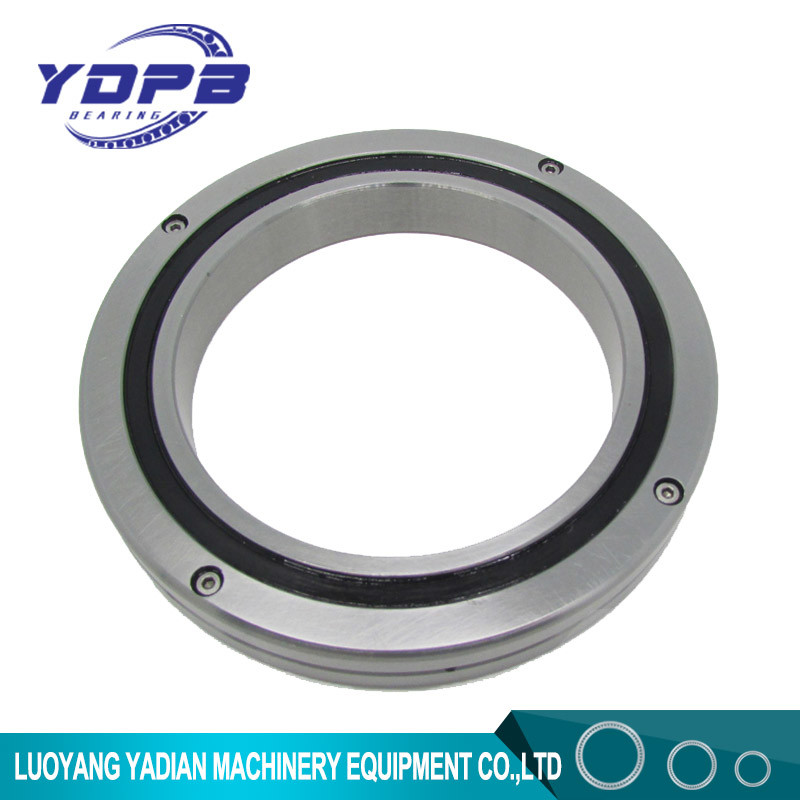

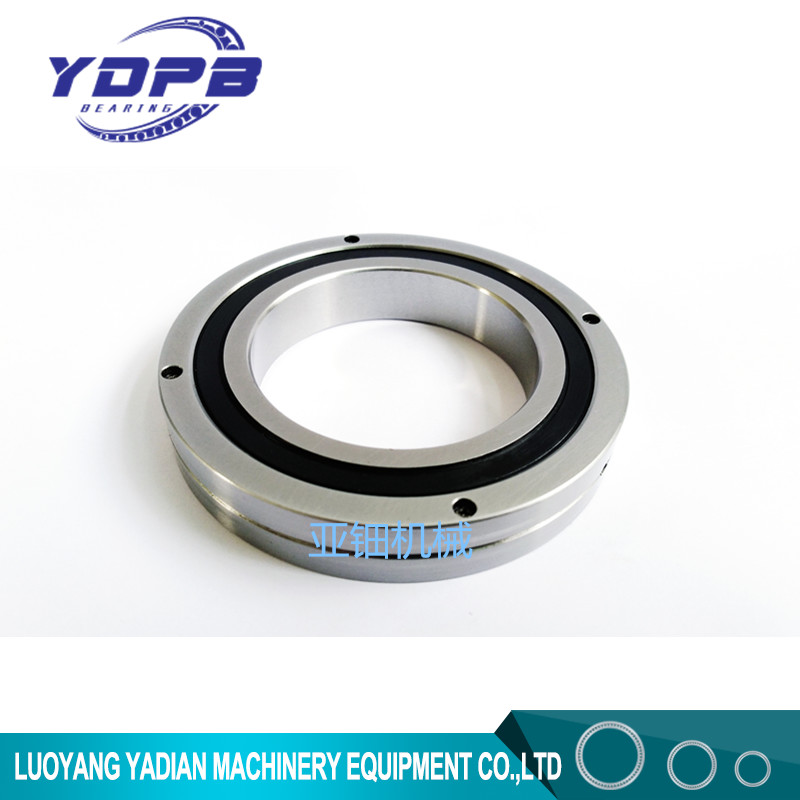

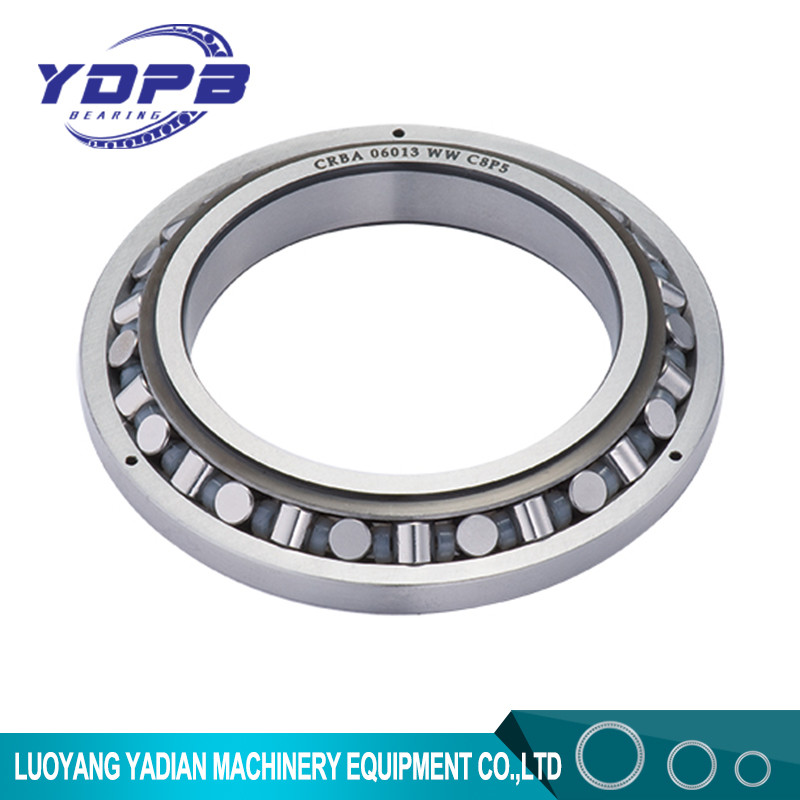

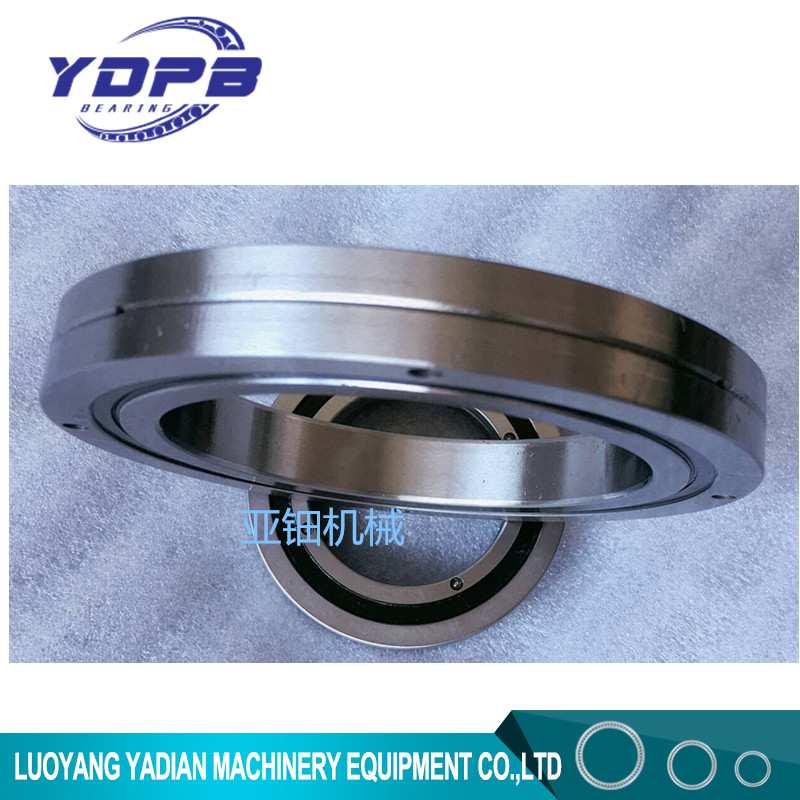

Related photoes
shaft diameter
|
Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | ||||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole | r | ds | Dh | C | Co | Kg | |||
a | b | ||||||||||||
d | D | DP | B/B1 | KN | KN | ||||||||
50 | RB 5013 | 50 | 80 | 64 | 13 | 2.5 | 1.6 | 1 | 57 | 72 | 16.7 | 20.9 | 0.27 |
60 | RB 6013 | 60 | 90 | 74 | 13 | 2.5 | 1.6 | 1 | 68 | 82 | 18 | 24.3 | 0.3 |
70 | RB 7013 | 70 | 100 | 84 | 13 | 2.5 | 1.6 | 1 | 78 | 92 | 19.4 | 27.7 | 0.35 |
80 | RB 8016 | 80 | 120 | 98 | 16 | 3 | 1.6 | 1 | 91 | 111 | 30.1 | 42.1 | 0.7 |
90 | RB 9016 | 90 | 130 | 108 | 16 | 3 | 1.6 | 1.5 | 98 | 118 | 31.4 | 45.3 | 0.75 |
100 | RB 10016 | 100 | 140 | 119.3 | 16 | 3.5 | 1.6 | 1.5 | 109 | 129 | 31.7 | 48.6 | 0.83 |
RB 10020 | 150 | 123 | 20 | 3.5 | 1.6 | 1.5 | 113 | 133 | 33.1 | 50.9 | 1.45 | ||
110 | RB 11012 | 110 | 135 | 121.8 | 12 | 2.5 | 1 | 1 | 117 | 127 | 12.5 | 24.1 | 0.4 |
RB 11015 | 145 | 126.5 | 15 | 3.5 | 1.6 | 1 | 122 | 136 | 23.7 | 41.5 | 0.75 | ||
RB 11020 | 160 | 133 | 20 | 3.5 | 1.6 | 1.5 | 120 | 140 | 34.0 | 54.0 | 1.56 | ||
120 | RB 12016 | 120 | 150 | 134.2 | 16 | 3.5 | 1.6 | 1 | 127 | 141 | 24.2 | 43.2 | 0.72 |
RB 12025 | 180 | 148.7 | 25 | 3.5 | 2 | 2 | 133 | 164 | 66.9 | 100 | 2.62 | ||
130 | RB 13015 | 130 | 160 | 144.5 | 15 | 3.5 | 1.6 | 1 | 137 | 152 | 25 | 46.7 | 0.72 |
RB 13025 | 190 | 158 | 25 | 3.5 | 2 | 2 | 143 | 174 | 69.5 | 107 | 2.82 | ||
140 | RB 14016 | 140 | 175 | 154.8 | 16 | 2.5 | 1.6 | 1.5 | 147 | 162 | 25.9 | 50.1 | 1 |
RB 14025 | 200 | 168 | 25 | 3.5 | 2 | 2 | 154 | 185 | 74.8 | 121 | 2.96 | ||
150 | RB 15013 | 150 | 180 | 164 | 13 | 2.5 | 1.6 | 1 | 157 | 172 | 27 | 53.5 | 0.68 |
RB 15025 | 210 | 178 | 25 | 3.5 | 2 | 2 | 164 | 194 | 76.8 | 128 | 3.16 | ||
RB 15030 | 230 | 188 | 30 | 4.5 | 3 | 2 | 173 | 211 | 100 | 156 | 5.3 | ||
160 | RB 16025 | 160 | 220 | 188.6 | 25 | 3.5 | 2 | 2 | 173 | 204 | 81.7 | 135 | 3.14 |
170 | RB 17020 | 170 | 220 | 191 | 20 | 3.5 | 1.6 | 2 | 184 | 198 | 29 | 62.1 | 2.21 |
180 | RB 18025 | 180 | 240 | 210 | 25 | 3.5 | 2 | 2 | 195 | 225 | 84 | 143 | 3.44 |
190 | RB 19025 | 190 | 240 | 211.9 | 25 | 3.5 | 1.6 | 1.5 | 202 | 222 | 41.7 | 82.9 | 2.99 |
shaft diameter
|
Identification number | Main dimensious | shoulder height | Basic load rating (radial) | weight | ||||||||
Inner diameter | outer diameter | Roller pitch circle diameter | width | Greasing hole | r | ds | Dh | C | Co | Kg | |||
a | b | ||||||||||||
d | D | DP | B/B1 | KN | KN | ||||||||
200 | RB 20025 | 200 | 260 | 230 | 25 | 3.5 | 2 | 2.5 | 215 | 245 | 84.2 | 157 | 4 |
RB 20030 | 280 | 240 | 30 | 4.5 | 3 | 2.5 | 221 | 258 | 114 | 200 | 6.7 | ||
RB 20035 | 295 | 247.7 | 35 | 5 | 3 | 2.5 | 225 | 270 | 151 | 252 | 9.6 | ||
220 | RB 22025 | 220 | 280 | 250.1 | 25 | 3.5 | 2 | 2.5 | 235 | 265 | 92.3 | 171 | 4.1 |
240 | RB 24025 | 240 | 300 | 269 | 25 | 3.5 | 2 | 3 | 256 | 281 | 68.3 | 154 | 4.5 |
250 | RB 25025 | 250 | 310 | 277.5 | 25 | 3.5 | 2 | 3 | 265 | 290 | 69.3 | 150 | 5 |
RB 25030 | 330 | 287.5 | 30 | 4.5 | 3 | 3 | 269 | 306 | 126 | 224 | 8.1 | ||
RB 25040 | 355 | 300.5 | 40 | 6 | 3.5 | 3 | 275 | 326 | 195 | 348 | 14.8 | ||
300 | RB 30025 | 300 | 360 | 328 | 25 | 3.5 | 2 | 3 | 315 | 340 | 76.3 | 178 | 5.9 |
RB 30035 | 395 | 345 | 35 | 5 | 3 | 3 | 322 | 368 | 183 | 367 | 13.4 | ||
RB 30040 | 405 | 351.6 | 40 | 6 | 3.5 | 3 | 326 | 377 | 212 | 409 | 17.2 | ||
350 | RB 35020 | 350 | 400 | 373.4 | 20 | 3.5 | 1.6 | 3 | 363 | 383 | 54.1 | 143 | 3.9 |
400 | RB 40035 | 400 | 480 | 440.3 | 35 | 5 | 3 | 3.5 | 422 | 459 | 156 | 370 | 14.5 |
RB 40040 | 510 | 453.4 | 40 | 6 | 3.5 | 3.5 | 428 | 479 | 241 | 531 | 23.5 | ||
450 | RB 45025 | 450 | 500 | 474 | 25 | 3.5 | 1.6 | 1.5 | 464 | 484 | 61.7 | 182 | 6.6 |
500 | RB 50025 | 500 | 550 | 524.2 | 25 | 3.5 | 1.6 | 1.5 | 514 | 534 | 65.5 | 201 | 7.3 |
RB 50040 | 600 | 548.8 | 40 | 6 | 3 | 3.5 | 526 | 572 | 239 | 607 | 26 | ||
RB 50050 | 625 | 561.6 | 50 | 6 | 3.5 | 3.5 | 536 | 587 | 267 | 653 | 41.7 | ||
600 | RB 60040 | 600 | 700 | 650 | 40 | 6 | 3 | 4 | 627 | 673 | 264 | 721 | 29 |
700 | RB 70045 | 700 | 815 | 753.5 | 45 | 6 | 3 | 4 | 731 | 777 | 281 | 836 | 46 |
800 | RB 80070 | 800 | 950 | 868.1 | 70 | 6 | 4 | 5 | 836 | 900 | 468 | 1330 | 105 |
900 | RB 90070 | 900 | 1050 | 969 | 70 | 6 | 4 | 5 | 937 | 1001 | 494 | 1490 | 120 |
1000 | RB 1000110 | 1000 | 1250 | 1114 | 110 | 6 | 6 | 6 | 1057 | 1171 | 1220 | 3220 | 360 |
1250 | RB 1250110 | 1250 | 1500 | 1365.8 | 110 | 6 | 4 | 6 | 1308 | 1423 | 1350 | 3970 | 440 |
Drawings and other parameters ,pls contact us free, thanks
