XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number XV50
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Model XV50 Material GCr15
Structure Crossed Cylindrical Roller Bearings Dimension 50x100x17/16mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

XV series INA standard Crossed Roller Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV50
Inner ring(mm)- 50
Outer ring(mm)- 100
Width(mm)- 17/16
Weight(Kg)- 0.67
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:

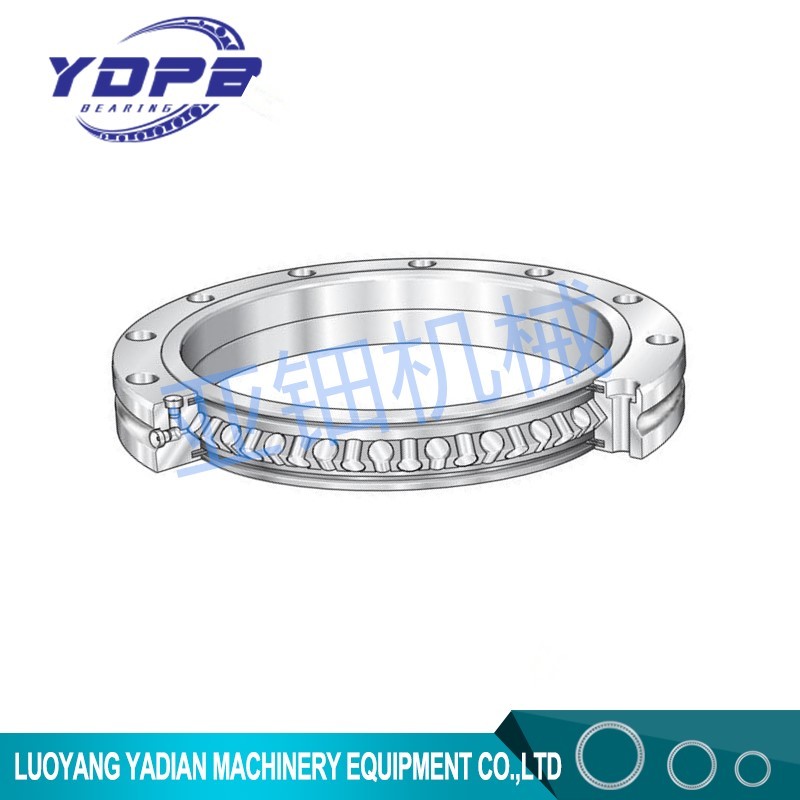

XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm 0



Basic load rating


dDBCD1n 1d 1D 1 1T 1rsCrCor

Related Photoes

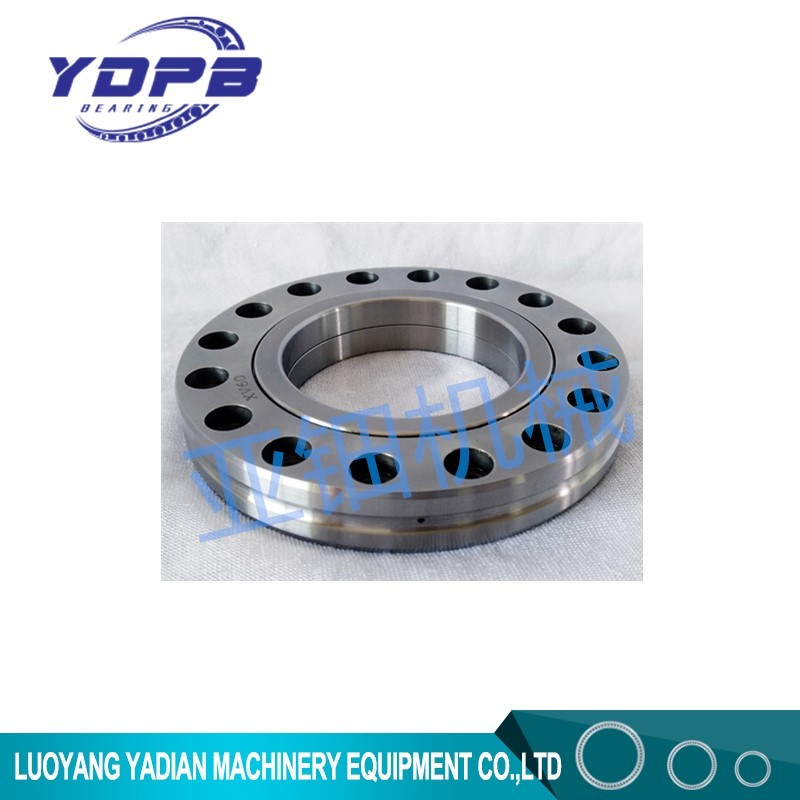

XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm 1

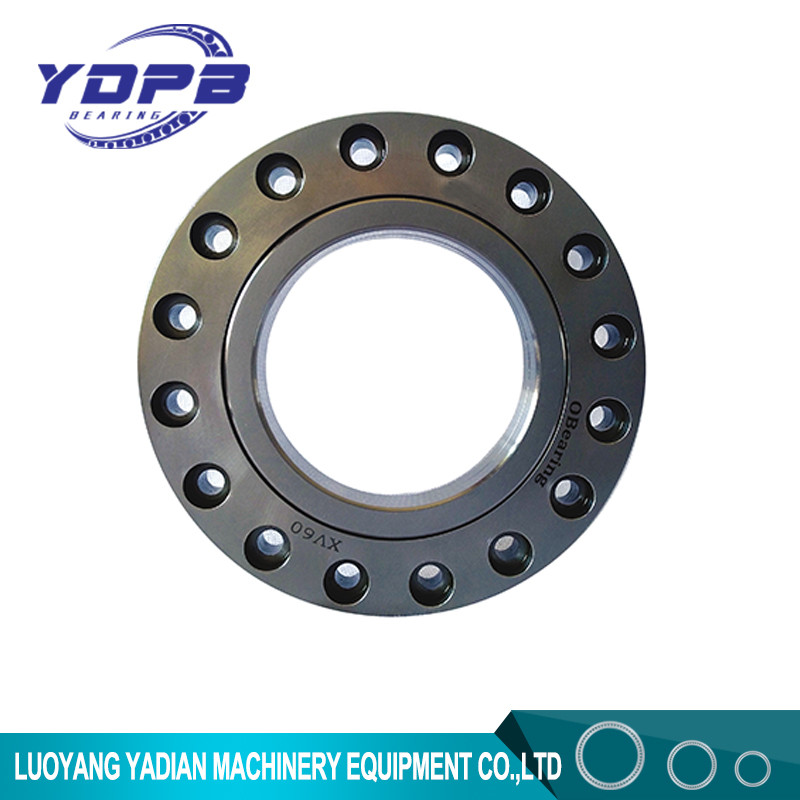

XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm 2

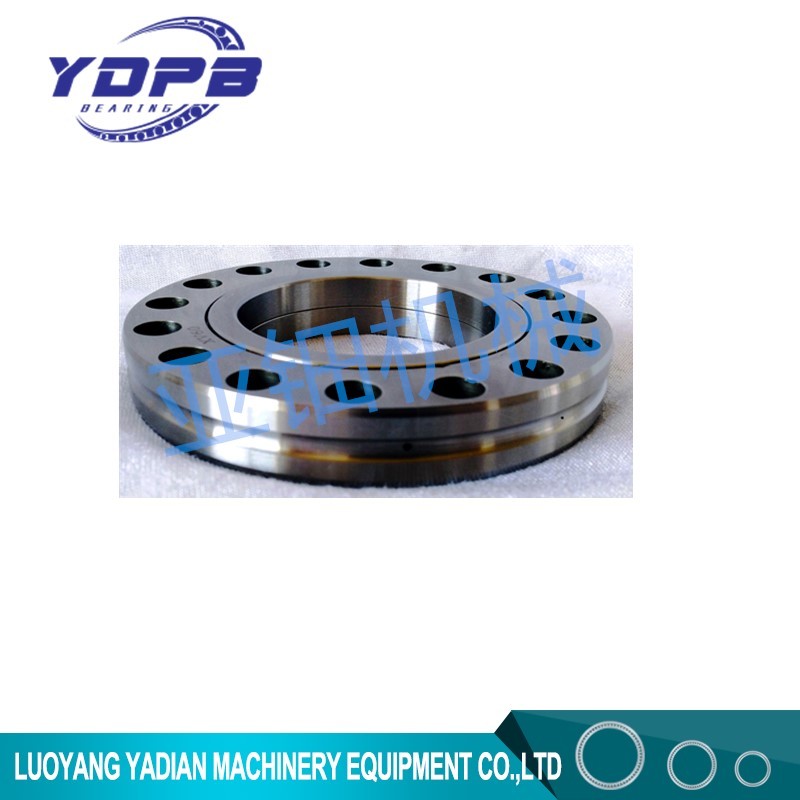

XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm 3
Drawings and other parameters ,pls contact us free, thanks
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available

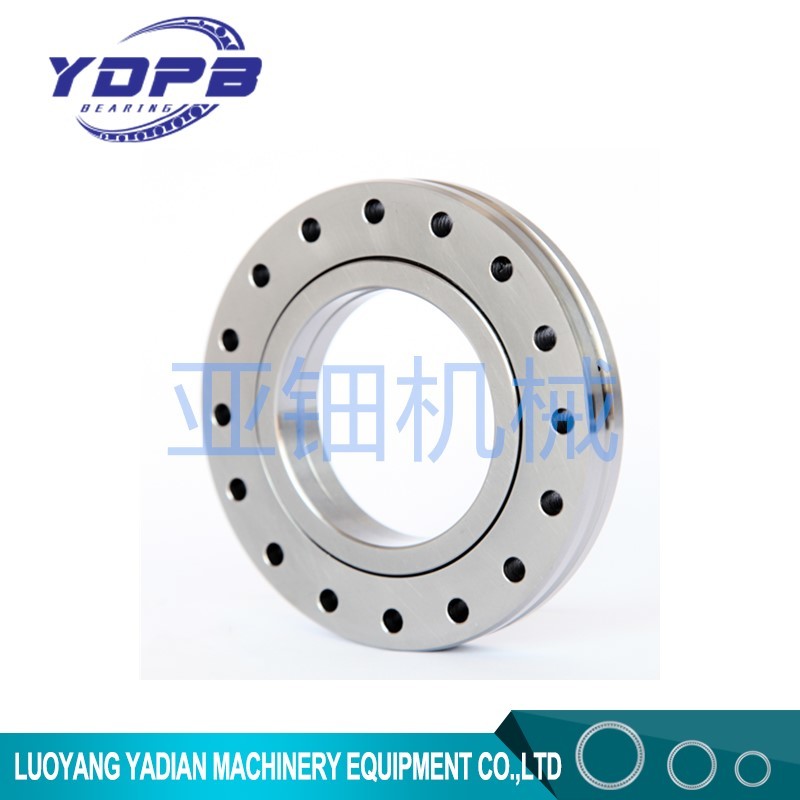

XV50 Thin Section Bearing-Crossed Cylindrical Roller Bearing 50x100x17/16mm 4
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
