XV70 china cross roller bearings suppliers 70x120x17/16mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | XV70 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | XV70 | Material | GCr15 |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 70x120x17/16mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
XV series INA standard Crossed Roller Bearings, Split inner ring,Sealed on both sides,without gear teeth.
Model number- XV70
Inner ring(mm)- 70
Outer ring(mm)- 120
Width(mm)- 17/16
Weight(Kg)- 0.84
Materials- GCR15/GCR15SiMn
Precision grade- Standard
Lubrication type- Grease lubrication
Rotating part- Inner Ring Split
Series Model NO.
XV30,XV40,XV50,XV60,XV70,XV80,XV90,XV100,XV110.
Features
1. Are screw mounted by means of the outer ring to the adjacent construction,t
2. The inner ring is located by means of a locknut, can be adjusted very precisely to give a specific clearance or preload by means of the locknut.
3. Sealed on both sides,
4. two lubrication nipples radially and two lubrication nipples axially.
5. Working Temperature -25℃-- +80℃
Structure and Parameters:
|
Dimension |
Basic load rating |
Weight |
||||||||||
d | D | B | C | D1 | n 1 | d 1 | D 1 1 | T 1 | rs | Cr | Cor | ||
XV30 | 30 | 75 | 15 | 14 | 60 | 12 | 4.6 | 8 | 4.6 | 2X20° | 7.4 | 10.4 | 0.37 |
XV40 | 40 | 85 | 15 | 14 | 70 | 12 | 4.6 | 8 | 4.6 | 2X20° | 8.7 | 13.8 | 0.44 |
XV50 | 50 | 100 | 17 | 16 | 85 | 12 | 5.6 | 10 | 5.4 | 2X20° | 13.1 | 21.5 | 0.67 |
XV60 | 60 | 110 | 17 | 16 | 95 | 16 | 5.6 | 10 | 5.4 | 2X20° | 14.4 | 25.5 | 0.75 |
XV70 | 70 | 120 | 17 | 16 | 105 | 16 | 5.6 | 10 | 5.4 | 2X20° | 15.1 | 28 | 0.84 |
XV80 | 80 | 135 | 19 | 18 | 120 | 16 | 6.6 | 11 | 6.4 | 2X20° | 21.4 | 40.5 | 1.18 |
XV90 | 90 | 145 | 19 | 18 | 130 | 16 | 6.6 | 11 | 6.4 | 2X20° | 22.3 | 44.5 | 1.29 |
XV100 | 100 | 170 | 23 | 22 | 150 | 16 | 9 | 15 | 8.5 | 2X20° | 34.4 | 65 | 2.31 |
XV110 | 110 | 180 | 23 | 22 | 160 | 16 | 9 | 15 | 8.5 | 2X20° | 36.2 | 72 | 2.48 |

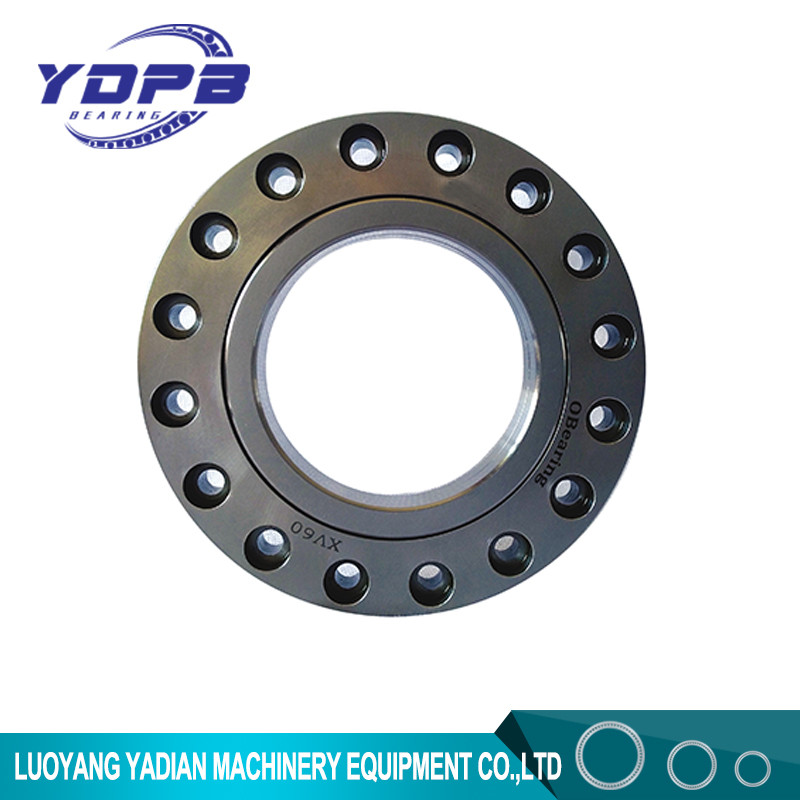

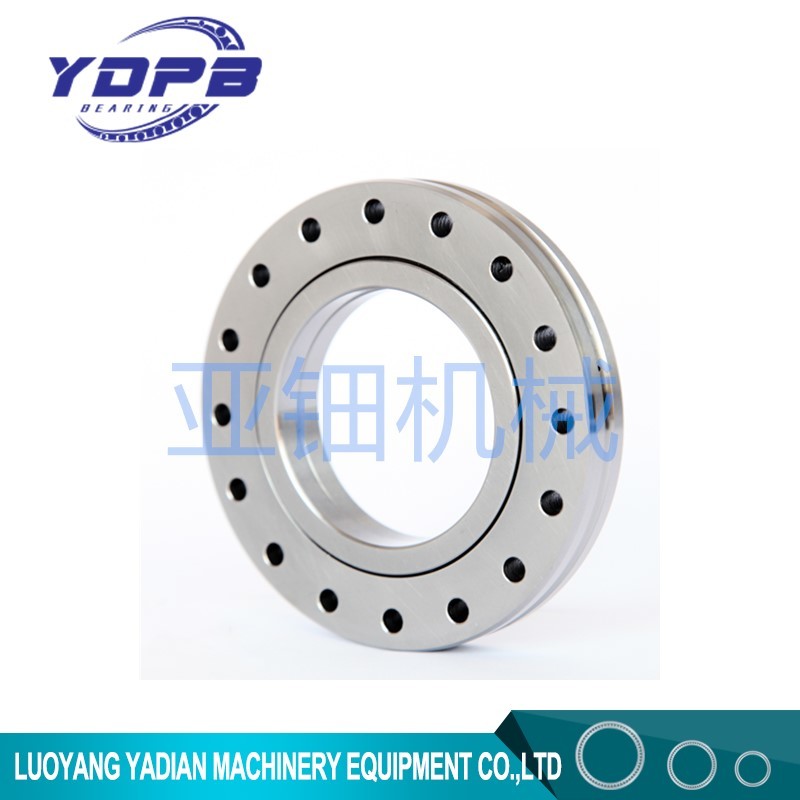

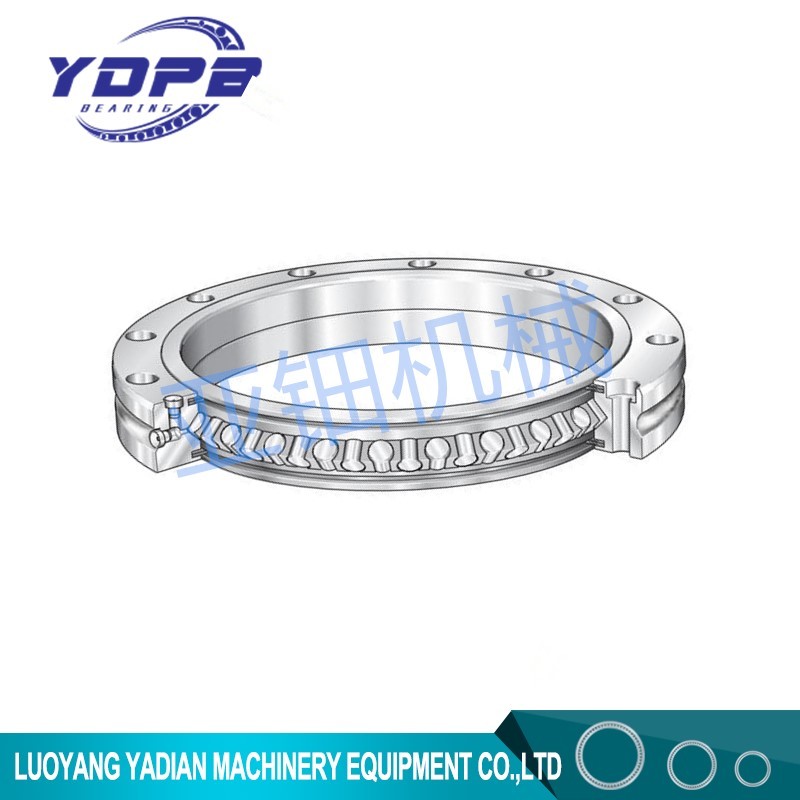

Related Photoes
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
