RE9016UUCC0P5 china cross roller bearing manufacturers 90x130x16mm thk cross roller bearing

Place of Origin Luoyang,China
Brand Name YDPB
Certification ISO
Model Number RE9016UUCC0P5
Minimum Order Quantity 1PCS
Price 1$
Packaging Details bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Delivery Time 5-7days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model RE9016UUCC0P5 Material GCr15SiMn
Structure Crossed Cylindrical Roller Bearings Dimension 90x130x16mm
Application Robots Arm/machine Tool Name Cross-roller Bearing
Leave a Message
Product Description

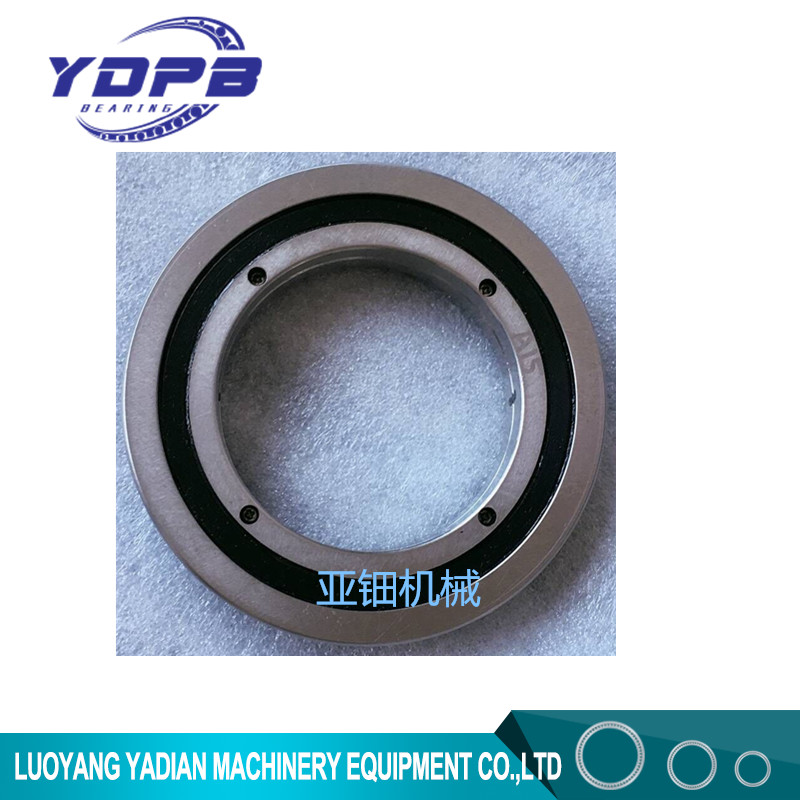

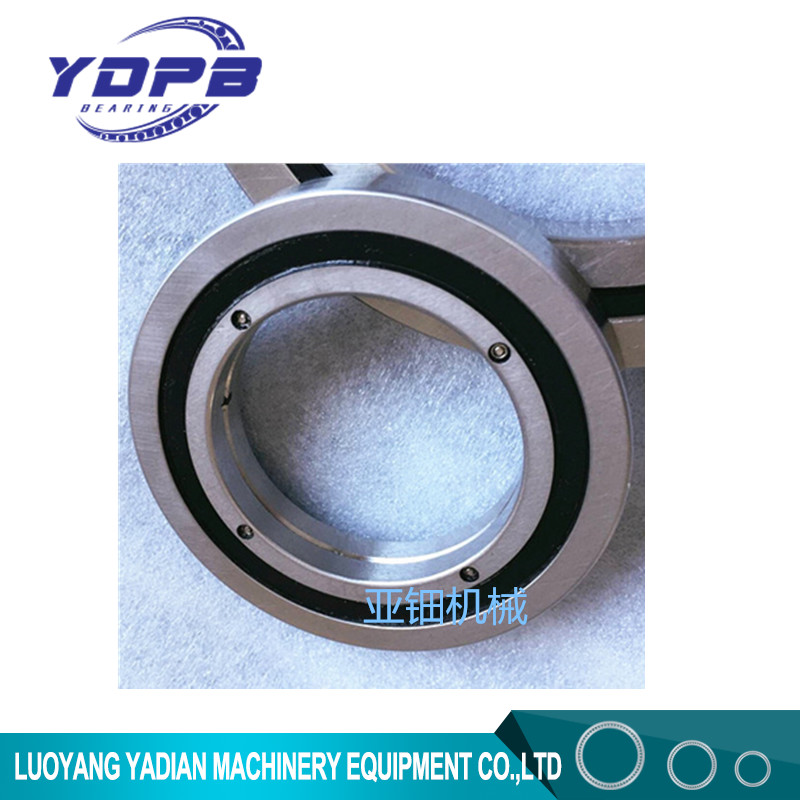

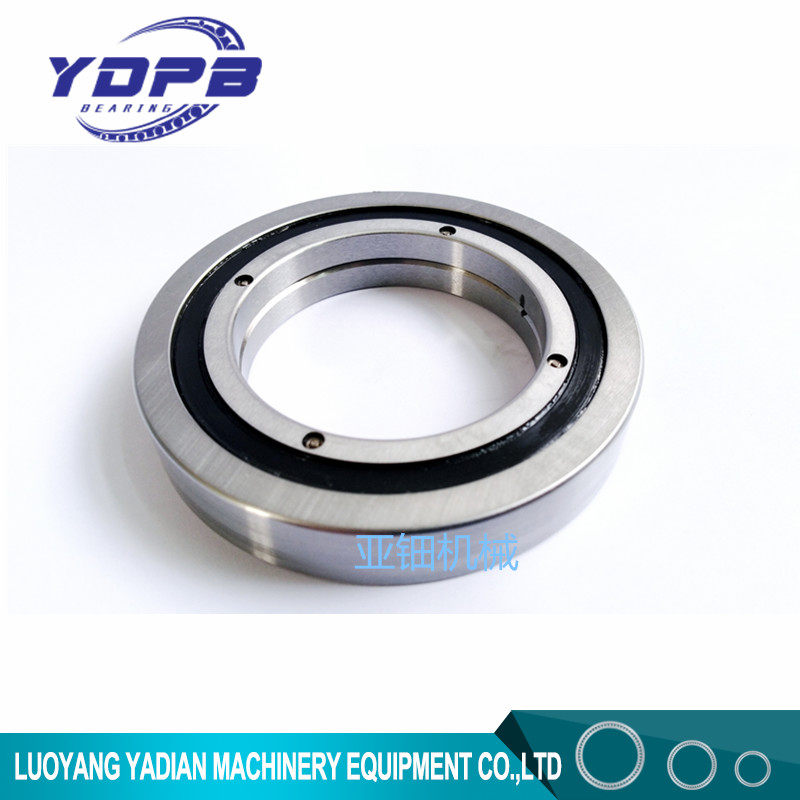

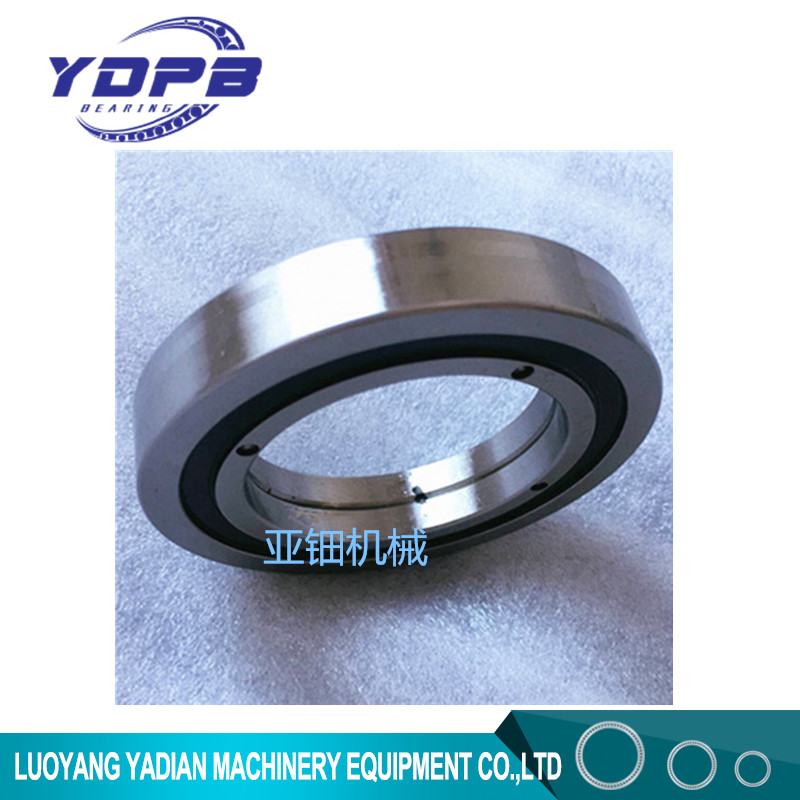

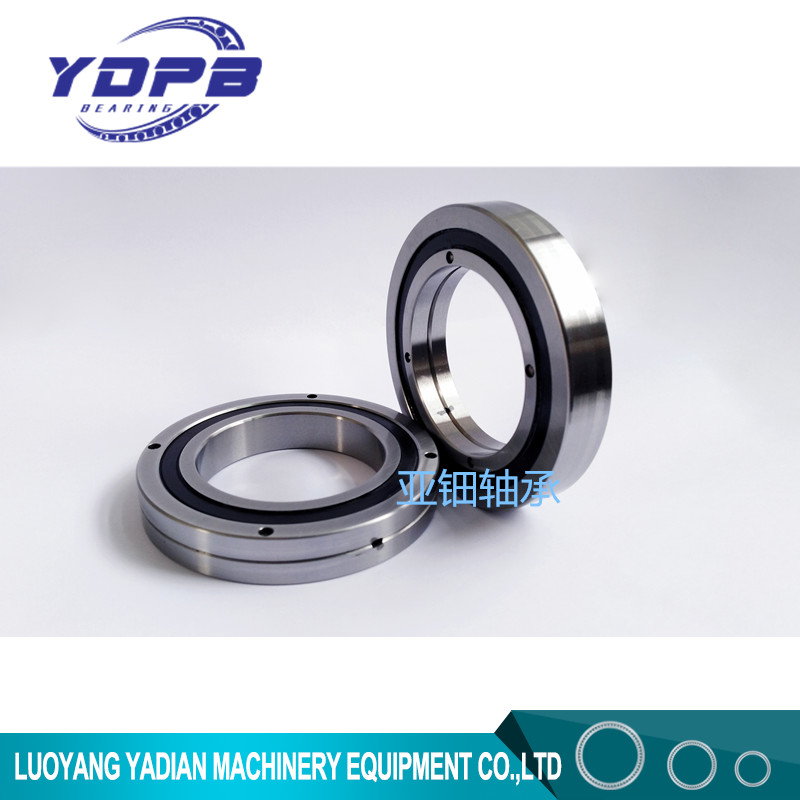

RE9016UUCCO Crossed Roller Bearings (90x130x16mm) Precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- RE9016UUCCO
Inner ring(mm)- 90
Outer ring(mm)- 130
Width(mm)- 16
Weight(Kg)- 0.75
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication Rotating part- Outer Ring Rotation
Load direction- Multi-load
Structure- Separable Inner Ring

Series Model No.

RE2008UUCCO, RE2508UUCCO, RE3010UUCCO, RE3510UUCCO, RE4010UUCCO, RE4510UUCCO, RE5013UUCCO, RE6013UUCCO, RE7013UUCCO, RE8016UUCCO, RE9016UUCCO, RE10016UUCCO, RE10020UUCCO, RE11012UUCCO, RE11015UUCCO, RE11020UUCCO, RE12016UUCCO, RE12025UUCCO, RE13015UUCCO, RE13025UUCCO, RE14016UUCCO, RE14025UUCCO, RE15013UUCO,RE15025UUCCO, RE15030UUCO,RE16025UUCCO, RE17020UUCCO, RE18025UUCCO, RE19025UUCO,RE20025UUCCO, RE20030UUCCO, RE20035UUCCO, RE22025UUCCO, RE24025UUCO,RE25025UUCCO, RE25030UUCCO, RE25040UUCO,RE30025UUCO,RE30035UUCCO, RE30040UUCCO, RE35020UUCCO, RE40035UUCCO, RE40040UUCCO, RE45025UUCCO RE50025UUCCO, RE50040UUCCO, RE50050UUCCO, RE60040UUCO

RE series structure

Due to the X arrangement of the rolling elements, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position. This allows designs with two bearing positions to be reduced to a single bearing position. Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, little clearance or preload. The bearing outer rings can be easily located in the adjacent construction by means of clamping rings.

Application:

Machine tools
Industrial robots
Aerospace
General industrial machinery
Electronic devices
Medical and assistive
Precision instruments
Transport systems
Other manufacturing industries
Semiconductor and LCD manufacturing equipment
Construction

Structures and parameters:

RE9016UUCC0P5 china cross roller bearing manufacturers 90x130x16mm thk cross roller bearing 0

Model No. d (mm) D (mm) B (mm) C (KN) Co (KN)
RE2008 20 36 8 3.23 3.1
RE2508 25 41 8 3.63 3.83
RE3010 30 55 10 7.35 8.36
RE3510 35 60 10 7.64 9.12
RE4010 40 65 10 8.33 10.6
RE4510 45 70 10 8.62 11.3
RE5013 50 80 13 16.7 20.9
RE6013 60 90 13 18 24.3
RE7013 70 100 13 19.4 27.7
RE8016 80 120 16 30.1 42.1
RE9016 90 130 16 31.4 45.3
RE10016 100 140 16 31.7 48.6
RE10020 100 150 20 33.1 50.9
RE11012 110 135 12 12.5 24.1
RE11015 110 145 15 23.7 41.5
RE11020 110 160 20 34 54
RE12016 120 150 16 24.2 43.2
RE12025 120 180 25 66.9 100
RE13015 130 160 15 25 46.7
RE13025 130 190 25 69.5 107
RE14016 140 175 16 25.9 50.1
RE14025 140 200 25 74.8 121
RE15013 150 180 13 27 53.5
RE15025 150 210 25 76.8 128
Model No. d (mm) D (mm) B (mm) C (KN) Co (KN)
RE15030 150 230 30 100 156
RE16025 160 220 25 81.7 135
RE17020 170 220 20 29 62.1
RE18025 180 240 25 84 143
RE19025 190 240 25 41.7 82.9
RE20025 200 260 25 84.2 157
RE20030 200 280 30 114 200
RE20035 200 295 35 151 252
RE22025 220 280 25 92.3 171
RE24025 240 300 25 68.3 145
RE25025 250 310 25 69.3 150
RE25030 250 330 30 126 244
RE25040 250 355 40 195 348
RE30025 300 360 25 75.5 178
RE30035 300 395 35 183 367
RE30040 300 405 40 212 409
RE35020 350 400 20 54.1 143
RE40035 400 480 35 156 370
RE40040 400 510 40 241 531
RE45025 450 500 25 61.7 182
RE50025 500 550 25 65.5 201
RE50040 500 600 40 239 607
RE50050 500 625 50 267 653
RE60040 600 700 40 264 721



Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Transportation available
RE9016UUCC0P5 china cross roller bearing manufacturers 90x130x16mm thk cross roller bearing 1
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.


Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
