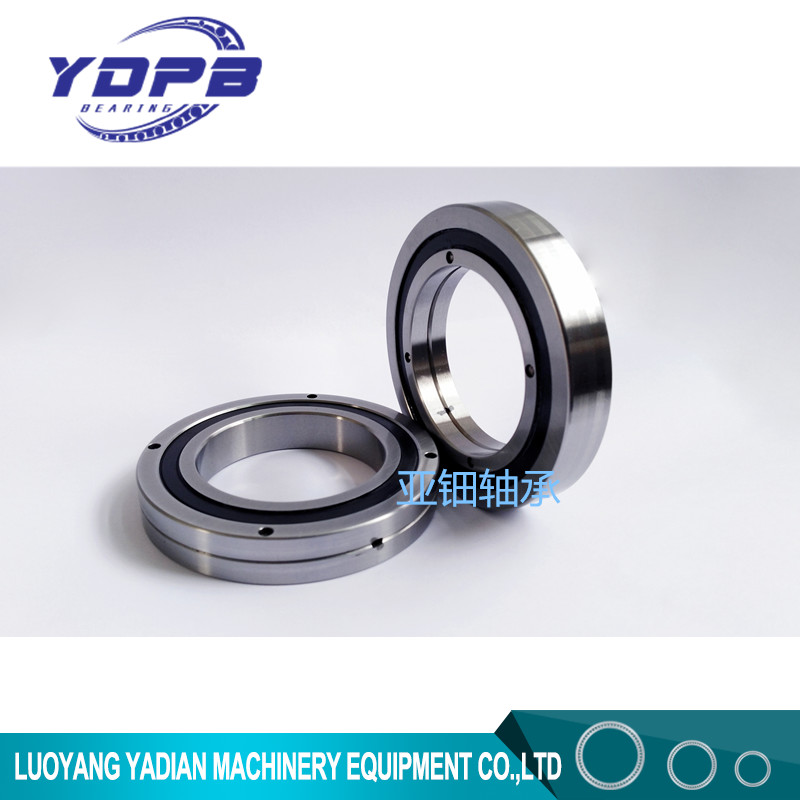

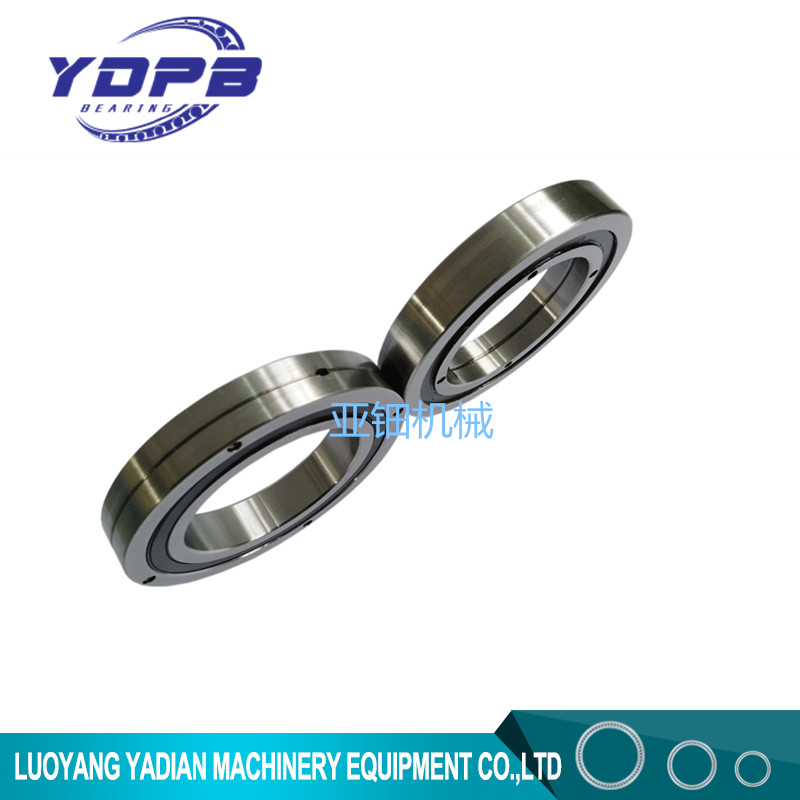

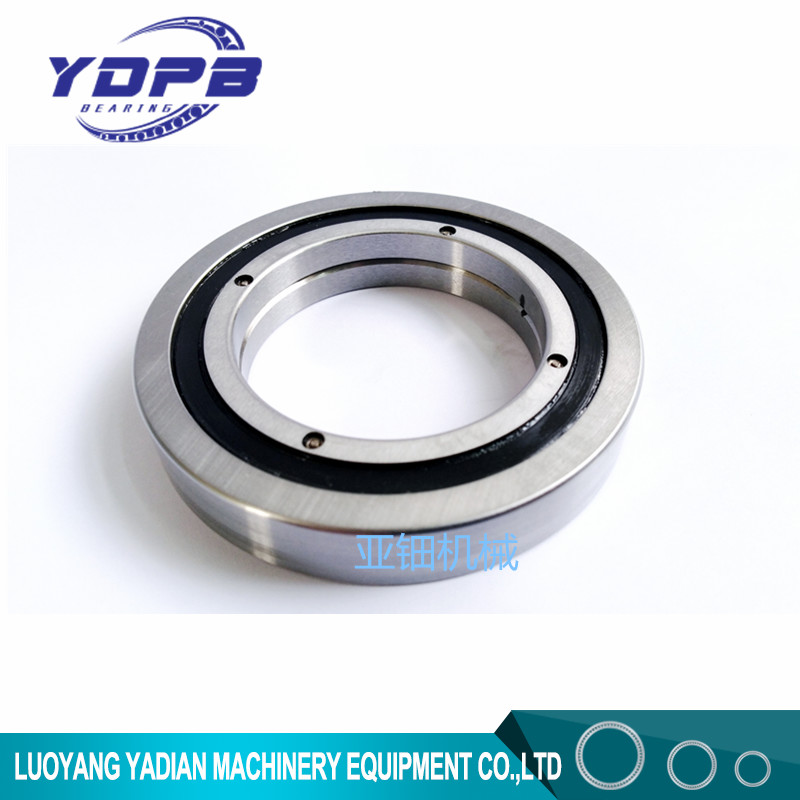

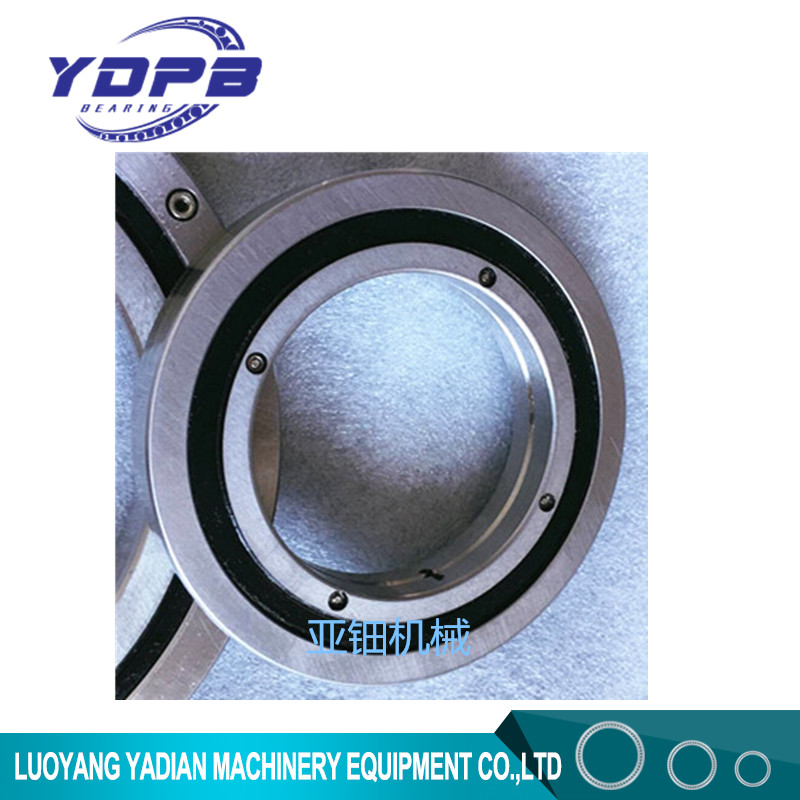

RE13025UUCC0P5 china cross roller slewing rings manufacturer 130x190x25mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | RE13025UUCC0P5 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RE13025UUCC0P5 | Material | GCr15SiMn |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 130x190x25mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
RE13025UUCCO Crossed Roller Bearings (130x190x25mm ) Precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- RE13025UUCCO
Inner ring(mm)- 130
Outer ring(mm)- 190
Width(mm)- 25
Weight(Kg)- 2.82
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication Rotating part- Outer Ring Rotation
Load direction- Multi-load
Structure- Separable Inner Ring
RE series structure
Due to the X arrangement of the rolling elements, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position. This allows designs with two bearing positions to be reduced to a single bearing position. Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, little clearance or preload. The bearing outer rings can be easily located in the adjacent construction by means of clamping rings.
Application:
Machine tools
Industrial robots
Aerospace
General industrial machinery
Electronic devices
Medical and assistive
Precision instruments
Transport systems
Other manufacturing industries
Semiconductor and LCD manufacturing equipment
Construction
Structures and parameters:
Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) |
RE2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RE2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RE3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RE3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RE4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RE4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RE5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RE6013 | 60 | 90 | 13 | 18 | 24.3 |
RE7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RE8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RE9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RE10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RE10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RE11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RE11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RE11020 | 110 | 160 | 20 | 34 | 54 |
RE12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RE12025 | 120 | 180 | 25 | 66.9 | 100 |
RE13015 | 130 | 160 | 15 | 25 | 46.7 |
RE13025 | 130 | 190 | 25 | 69.5 | 107 |
RE14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RE14025 | 140 | 200 | 25 | 74.8 | 121 |
RE15013 | 150 | 180 | 13 | 27 | 53.5 |
RE15025 | 150 | 210 | 25 | 76.8 | 128 |
Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) |
RE15030 | 150 | 230 | 30 | 100 | 156 |
RE16025 | 160 | 220 | 25 | 81.7 | 135 |
RE17020 | 170 | 220 | 20 | 29 | 62.1 |
RE18025 | 180 | 240 | 25 | 84 | 143 |
RE19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RE20025 | 200 | 260 | 25 | 84.2 | 157 |
RE20030 | 200 | 280 | 30 | 114 | 200 |
RE20035 | 200 | 295 | 35 | 151 | 252 |
RE22025 | 220 | 280 | 25 | 92.3 | 171 |
RE24025 | 240 | 300 | 25 | 68.3 | 145 |
RE25025 | 250 | 310 | 25 | 69.3 | 150 |
RE25030 | 250 | 330 | 30 | 126 | 244 |
RE25040 | 250 | 355 | 40 | 195 | 348 |
RE30025 | 300 | 360 | 25 | 75.5 | 178 |
RE30035 | 300 | 395 | 35 | 183 | 367 |
RE30040 | 300 | 405 | 40 | 212 | 409 |
RE35020 | 350 | 400 | 20 | 54.1 | 143 |
RE40035 | 400 | 480 | 35 | 156 | 370 |
RE40040 | 400 | 510 | 40 | 241 | 531 |
RE45025 | 450 | 500 | 25 | 61.7 | 182 |
RE50025 | 500 | 550 | 25 | 65.5 | 201 |
RE50040 | 500 | 600 | 40 | 239 | 607 |
RE50050 | 500 | 625 | 50 | 267 | 653 |
RE60040 | 600 | 700 | 40 | 264 | 721 |
Drawings and other parameters ,pls contact us free, thanks
Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
