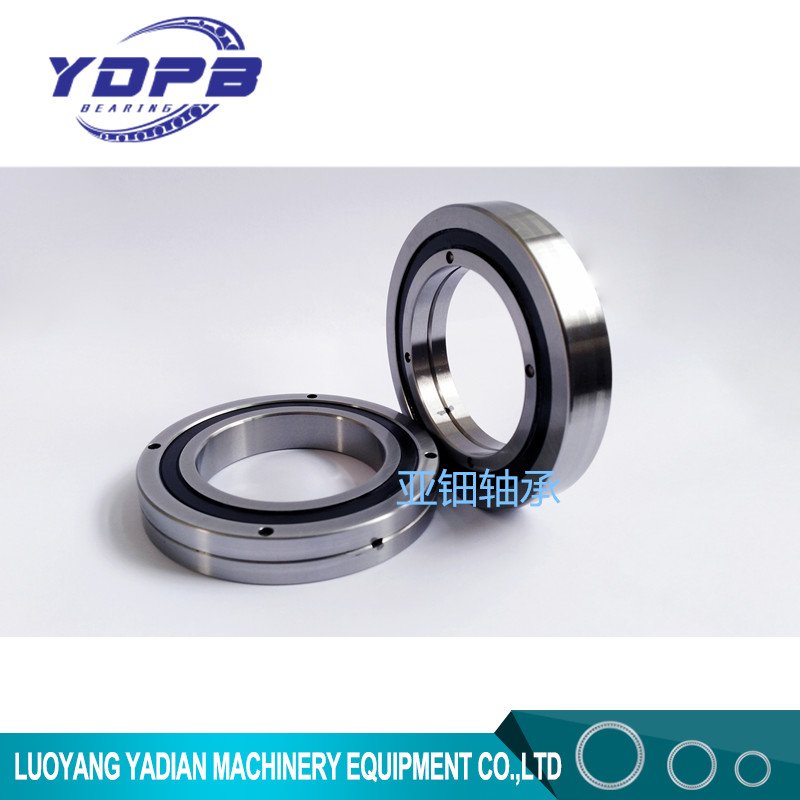

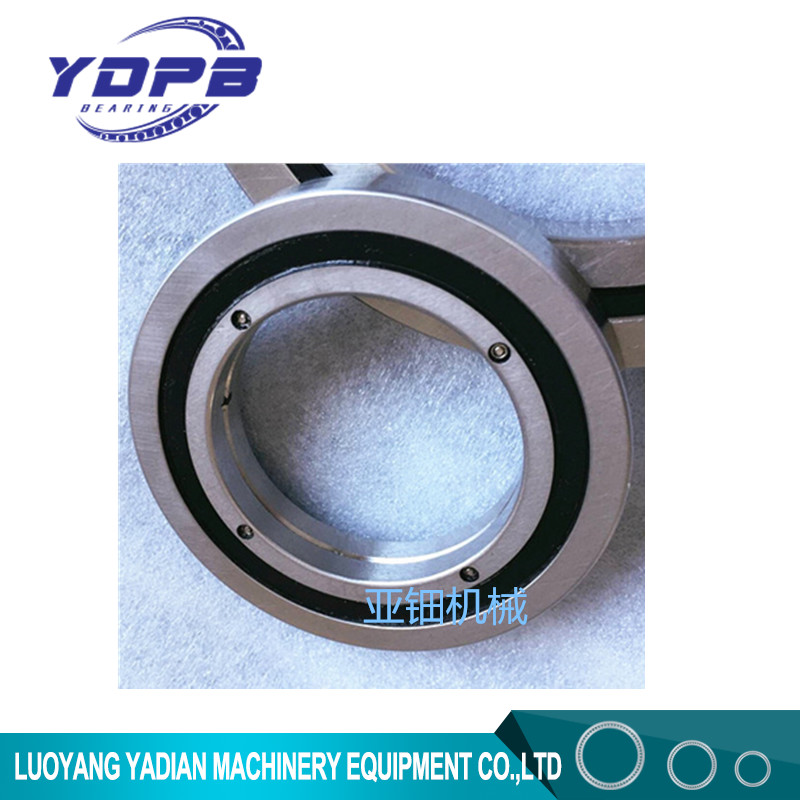

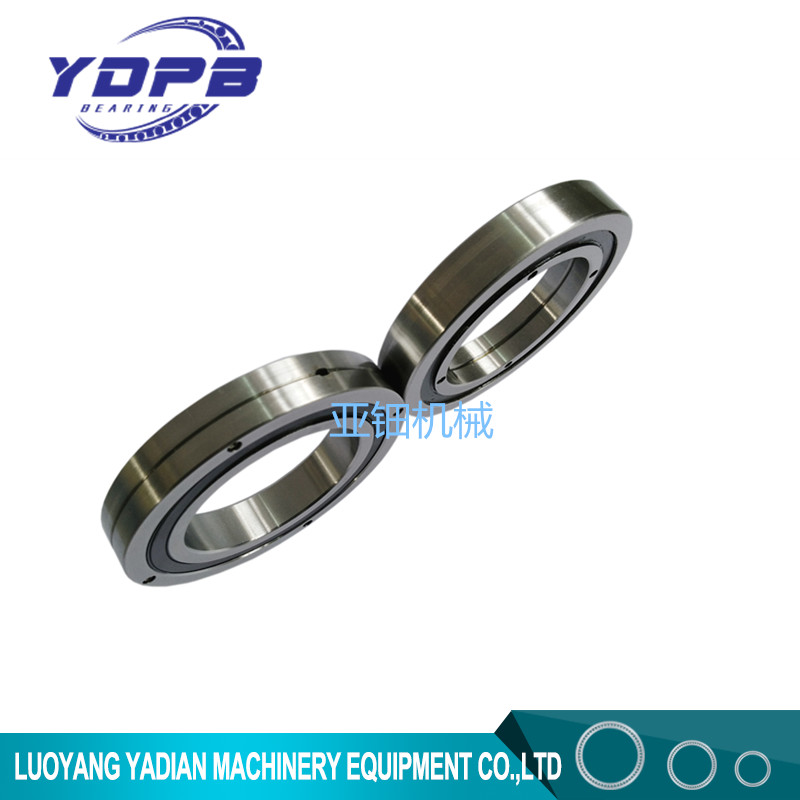

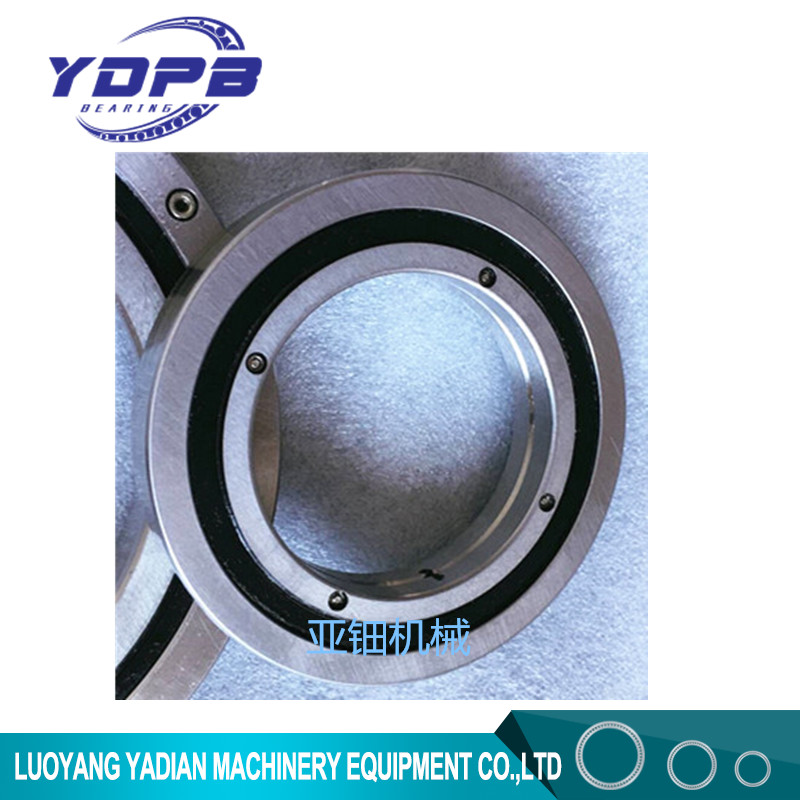

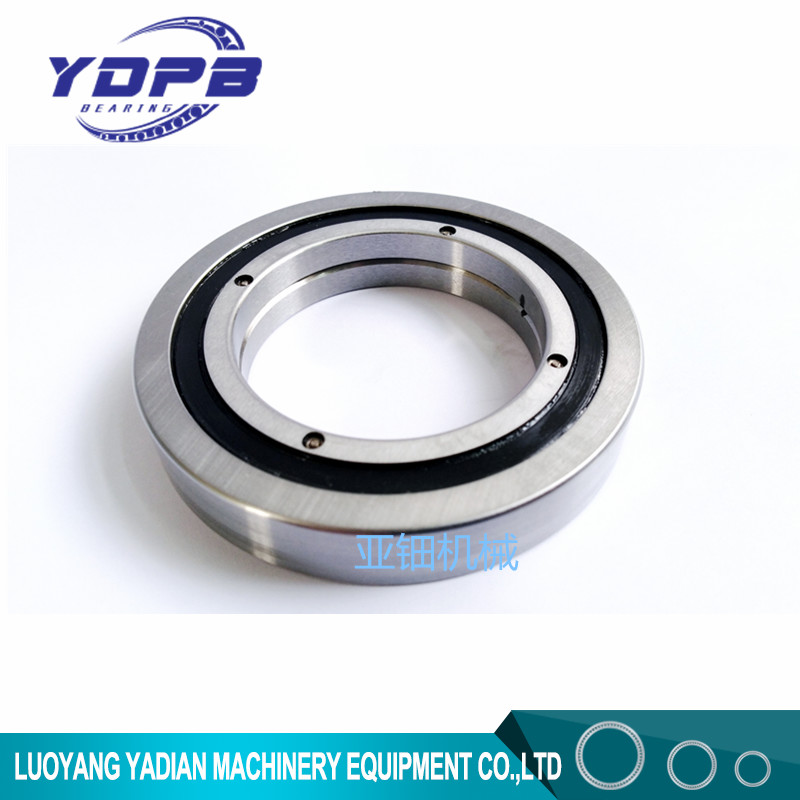

RE30040 UUCC0P5 re series crossed roller bearing manufacturers 300x405x40mm
Place of Origin | Luoyang,China |
---|---|
Brand Name | YDPB |
Certification | ISO |
Model Number | RE30040 UUCC0P5 |
Minimum Order Quantity | 1PCS |
Price | 1$ |
Packaging Details | bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases |
Delivery Time | 5-7days |
Payment Terms | T/T, Western Union, MoneyGram |
Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xModel | RE30040 UUCC0P5 | Material | GCr15SiMn |
---|---|---|---|
Structure | Crossed Cylindrical Roller Bearings | Dimension | 300x405x40mm |
Application | Robots Arm/machine Tool | Name | Cross-roller Bearing |
RE30040UUCCO Crossed Roller Bearings (300x405x40mm ) Precision Robotic arm use
Crossed Roller Bearings Parameters
Model number- RE30040UUCCO
Inner ring(mm)-300
Outer ring(mm)- 405
Width(mm)- 40
Weight(Kg)- 17.2
Materials- GCR15/GCR15SiMn
Precision grade- P5/P4/P2
Lubrication type- Grease lubrication Rotating part- Outer Ring Rotation
Load direction- Multi-load
Structure- Separable Inner Ring
RE series structure
Due to the X arrangement of the rolling elements, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads with a single bearing position. This allows designs with two bearing positions to be reduced to a single bearing position. Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, little clearance or preload. The bearing outer rings can be easily located in the adjacent construction by means of clamping rings.
Application:
Machine tools
Industrial robots
Aerospace
General industrial machinery
Electronic devices
Medical and assistive
Precision instruments
Transport systems
Other manufacturing industries
Semiconductor and LCD manufacturing equipment
Construction
Structures and parameters:
Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) |
RE2008 | 20 | 36 | 8 | 3.23 | 3.1 |
RE2508 | 25 | 41 | 8 | 3.63 | 3.83 |
RE3010 | 30 | 55 | 10 | 7.35 | 8.36 |
RE3510 | 35 | 60 | 10 | 7.64 | 9.12 |
RE4010 | 40 | 65 | 10 | 8.33 | 10.6 |
RE4510 | 45 | 70 | 10 | 8.62 | 11.3 |
RE5013 | 50 | 80 | 13 | 16.7 | 20.9 |
RE6013 | 60 | 90 | 13 | 18 | 24.3 |
RE7013 | 70 | 100 | 13 | 19.4 | 27.7 |
RE8016 | 80 | 120 | 16 | 30.1 | 42.1 |
RE9016 | 90 | 130 | 16 | 31.4 | 45.3 |
RE10016 | 100 | 140 | 16 | 31.7 | 48.6 |
RE10020 | 100 | 150 | 20 | 33.1 | 50.9 |
RE11012 | 110 | 135 | 12 | 12.5 | 24.1 |
RE11015 | 110 | 145 | 15 | 23.7 | 41.5 |
RE11020 | 110 | 160 | 20 | 34 | 54 |
RE12016 | 120 | 150 | 16 | 24.2 | 43.2 |
RE12025 | 120 | 180 | 25 | 66.9 | 100 |
RE13015 | 130 | 160 | 15 | 25 | 46.7 |
RE13025 | 130 | 190 | 25 | 69.5 | 107 |
RE14016 | 140 | 175 | 16 | 25.9 | 50.1 |
RE14025 | 140 | 200 | 25 | 74.8 | 121 |
RE15013 | 150 | 180 | 13 | 27 | 53.5 |
RE15025 | 150 | 210 | 25 | 76.8 | 128 |
Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) |
RE15030 | 150 | 230 | 30 | 100 | 156 |
RE16025 | 160 | 220 | 25 | 81.7 | 135 |
RE17020 | 170 | 220 | 20 | 29 | 62.1 |
RE18025 | 180 | 240 | 25 | 84 | 143 |
RE19025 | 190 | 240 | 25 | 41.7 | 82.9 |
RE20025 | 200 | 260 | 25 | 84.2 | 157 |
RE20030 | 200 | 280 | 30 | 114 | 200 |
RE20035 | 200 | 295 | 35 | 151 | 252 |
RE22025 | 220 | 280 | 25 | 92.3 | 171 |
RE24025 | 240 | 300 | 25 | 68.3 | 145 |
RE25025 | 250 | 310 | 25 | 69.3 | 150 |
RE25030 | 250 | 330 | 30 | 126 | 244 |
RE25040 | 250 | 355 | 40 | 195 | 348 |
RE30025 | 300 | 360 | 25 | 75.5 | 178 |
RE30035 | 300 | 395 | 35 | 183 | 367 |
RE30040 | 300 | 405 | 40 | 212 | 409 |
RE35020 | 350 | 400 | 20 | 54.1 | 143 |
RE40035 | 400 | 480 | 35 | 156 | 370 |
RE40040 | 400 | 510 | 40 | 241 | 531 |
RE45025 | 450 | 500 | 25 | 61.7 | 182 |
RE50025 | 500 | 550 | 25 | 65.5 | 201 |
RE50040 | 500 | 600 | 40 | 239 | 607 |
RE50050 | 500 | 625 | 50 | 267 | 653 |
RE60040 | 600 | 700 | 40 | 264 | 721 |
Drawings and other parameters ,pls contact us free, thanks
